Table of Contents
2005-07 4wd Ford Super
TOOL LIST- (NOT INCLUDED)
•
Assorted Metric & SAE Sockets & Wrenches
•
Torque Wrench
READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING
INSTALLATION! IF THESE INSTRUCTIONS ARE NOT PROPERLY FOLLOWED, SEVERE FRAME,
CHECK FOR FRAME AND SUSPENSION DAMAGE PRIOR TO INSTALLTION.
THIS KIT DOES NOT REQUIRE WELDING FOR INSTALLATION. DO NOT WELD ANY OF THESE
Installation Instructions
PARTS LIST-
Qty
Part #
1
FT7006
1
FT104
1
FT97150-6-106 3/8" Spacer
1
FT7006i
1
50133501052
1
50130004152
3
50000005152
DRIVELINE AND / OR SUSPENSION DAMAGE MAY RESULT.
FTS7006
Duty Single Steering Stabilizer Kit
Description

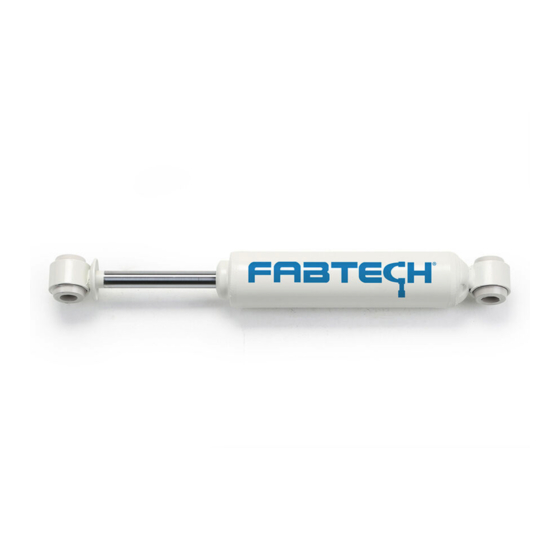

Stabilizer
Tapered Sleeve
Instruction Sheet
½"-13 x 3 ½" Hex Head Bolt
½ -13 C-Lock Washer
½" SAE Flat Washer
COMPONENTS.
Advertisement
Table of Contents
Related Manuals for Fabtech FTS7006
Summary of Contents for Fabtech FTS7006
-
Page 1: Installation Instructions
Installation Instructions FTS7006 2005-07 4wd Ford Super Duty Single Steering Stabilizer Kit PARTS LIST- Part # Description FT7006 Stabilizer FT104 Tapered Sleeve FT97150-6-106 3/8” Spacer FT7006i Instruction Sheet 50133501052 ½”-13 x 3 ½” Hex Head Bolt 50130004152 ½ -13 C-Lock Washer 50000005152 ½”... - Page 2 INSTALLATION- 1. Disconnect the negative terminal on the battery. Position the front tires of the vehicle straight ahead. 2. Remove the factory steering stabilizer from the truck and discard the stabilizer and the hardware. Attach the shaft end of the stabilizer with the provided flat rubber bushings and cup washers to the original frame bracket and tighten until the rubber bushings swell.
