Fabtech FTS24092 Installation Instructions

DO NOT ALTER THE FINISH OF THESE COMPONENTS, EXAMPLE- CHROMING, ZINC PLATING OR
PAINTING. CHANGING THE FINISH CAN CAUSE STRUCTURAL FATIGUE
CHECK ALL PARTS INCLUDED IN THIS KIT TO THE PARTS LIST ABOVE BEFORE BEGINNING
INSTALLATION OF THE KIT.
READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION!
IF THESE INSTRUCTIONS ARE NOT PROPERLY FOLLOWED, SEVERE FRAME, DRIVELINE AND / OR
THE INSTALLATION OF THIS SUSPENSION SYSTEM SHOULD BE PERFORMED BY A PROFESSIONAL
THE GUSSETS PROVIDED WITH THIS KIT ARE A WELD-ON INSTALLATION. ONLY AN
EXPIRENCED CERTIFIED WELDER SHOULD COMPLETE THIS INSTALLATION.

TOOL LIST:

(NOT INCLUDED)

FLOOR JACK & JACK STANDS

ASSORTED METRIC AND S.A.E SOCKETS, & WRENCHES

DIE GRINDER W/ SANDING DRUM & DISCS

MIG WELDER

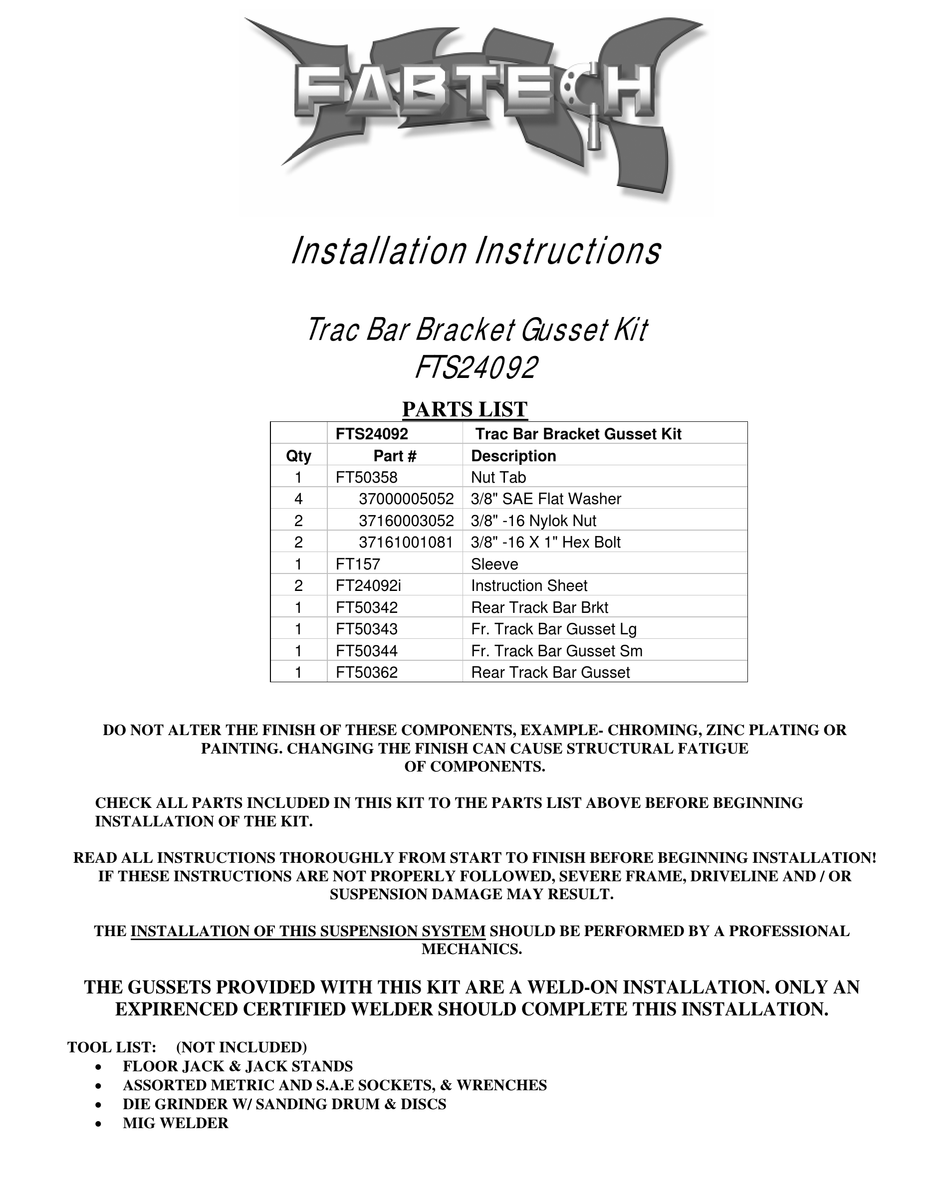

Installation Instructions

Trac Bar Bracket Gusset Kit
FTS24092

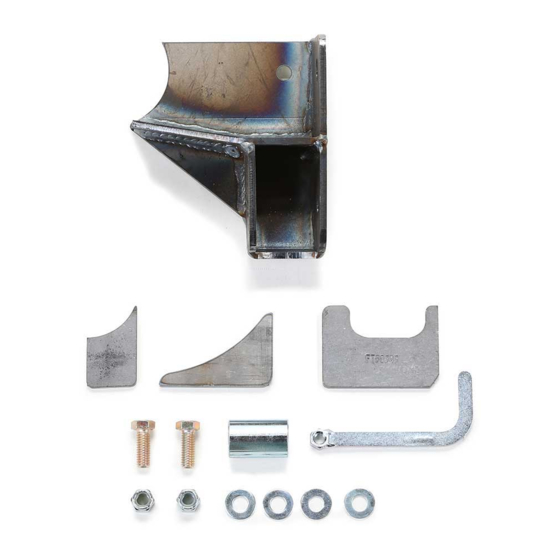

PARTS LIST

FTS24092
Qty Part #
1 FT50358
4 37000005052
2 37160003052
2 37161001081
1 FT157
2 FT24092i
1 FT50342
1 FT50343
1 FT50344
1 FT50362
OF COMPONENTS.
SUSPENSION DAMAGE MAY RESULT.
MECHANICS.
Trac Bar Bracket Gusset Kit
Description
Nut Tab
3/8" SAE Flat Washer
3/8" -16 Nylok Nut
3/8" -16 X 1" Hex Bolt
Sleeve
Instruction Sheet
Rear Track Bar Brkt
Fr. Track Bar Gusset Lg
Fr. Track Bar Gusset Sm
Rear Track Bar Gusset
