Qty
Part #
2
FT7006
1
FT30145BK
2
FT30149
1
FT739U
1
FT30312
FT30312
Qty
Part #
4
FT740U
2
FT140357
1
FT58H
8
37160003052
8
37000005081
2
50132001081
2
50000005081
1
FTLOCK
1
FTAS12
1
FTREGCARD
2
FT8023i
TOOL LIST:
Assorted Metric & Standard Wrenches
Torque Wrench
Measuring Tape
Die Grinder With Cut-Off Wheel
READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION.
DO NOT ALTER THE FINISH OF THESE COMPONENTS, EXAMPLE- CHROMING, ZINC PLATING OR
PAINTING. CHANGING THE FINISH CAN CAUSE STRUCTURAL FATIGUE OF COMPONENTS.
THIS STABILIZER KIT WILL NOT WORK ON STOCK HEIGHT VEHICLES. IT IS DESIGNED TO WORK ONLY
ON VEHICLES WITH FABTECH LIFT SYSTEMS
THIS SYSTEM WILL ONLY WORK IN CONJUCTION WITH FABTECH 4", 6", 8" AND 10" LIFT SYSTEMS.
4331 EUCALYPTUS AVE. ~~ CHINO, CA 91710
Dual Steering Stabilizer System
2005-15 Ford F250 & F350 4WD

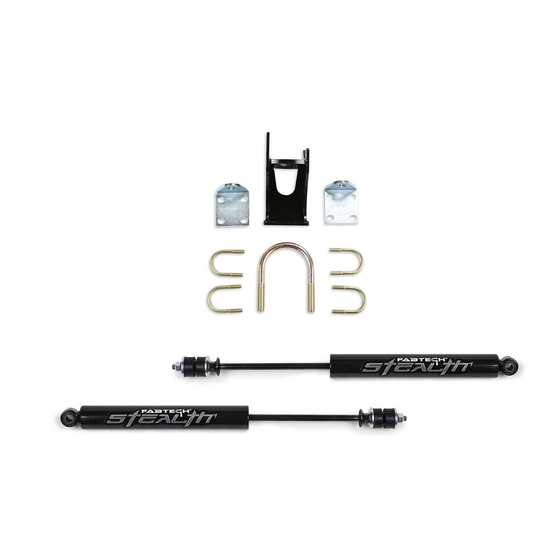

Description FTS8023
Steering Stabilizer
Axle Bracket
Tie Rod Brackets
Axle U-Bolt
Hdwr Sub-Assembly Kit
Hdwr Sub-Assembly Kit
Description
Tie Rod U-Bolt
Shock Stud Kit
Axle u-bolt hardware
3/8"-16 Nyloc Nut
3/8" SAE Flat Washer
1/2"-13 x 2" Hex Bolt
1/2" SAE Flat Washer
Thread Locking Compound
Sticker
Registration Card
Instruction Sheet
READ BEFORE BEGINNING INSTALL
FTS8023 / FTS8046
Qty
2
FTS6604
1
FT30145BK
2
FT30149
1
FT739U
1
FT30312
FT30312
Qty
4
FT740U
2
FT140357
1
FT58H
8
37160003052
8
37000005081
2
50132001081
2
50000005081
1
FTLOCK
1
FTAS12
1
FTREGCARD
2
FT8023i
Description FTS8046
Part #
Steering Stabilizer
Axle Bracket
Tie Rod Brackets
Axle U-Bolt
Hdwr Sub-Assembly Kit
Hdwr Sub-Assembly Kit
Part #
Description
Tie Rod U-Bolt
Shock Stud Kit
Axle u-bolt hardware
3/8"-16 Nyloc Nut
3/8" SAE Flat Washer
1/2"-13 x 2" Hex Bolt
1/2" SAE Flat Washer
Thread Locking Compound
Sticker
Registration Card
Instruction Sheet
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fabtech FTS8023
Summary of Contents for Fabtech FTS8023
- Page 1 PAINTING. CHANGING THE FINISH CAN CAUSE STRUCTURAL FATIGUE OF COMPONENTS. THIS STABILIZER KIT WILL NOT WORK ON STOCK HEIGHT VEHICLES. IT IS DESIGNED TO WORK ONLY ON VEHICLES WITH FABTECH LIFT SYSTEMS THIS SYSTEM WILL ONLY WORK IN CONJUCTION WITH FABTECH 4”, 6”, 8” AND 10” LIFT SYSTEMS.
- Page 2 Begin Installation: 1. Disconnect the negative terminal on the battery. Park the truck on level ground and set the emergency brake. 2. Locate FT30145 Axle Bracket and FT140357 Shock Stud kits. Attach the stub kits to the two front holes on the axle bracket and torque to 55 ft lbs.
- Page 3 9. Once the tie rod u-bolts are torque to 32 ft. lbs. using a die grinder with a cut off wheel, trim the residual length of the u-bolt flesh with the nut. SEE PHOTO BELOW. 10. Steer the truck fully to the left and right to make sure the steering stabilizers are not bottoming out. Adjust the tie rod end bracket as needed.
