DOREL ASIA
5-PC PEDESTAL
DINING SET
INFORMATION. PLEASE READ AND
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
0-65857-16532-6
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
CALL US FOR ASSISTANC
E-Mail: das@dorel.com
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Model No:
DA7104B
UPC CODE:
NOTE:
Lot number:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5-PC PEDESTAL DINING SET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorel Asia 5-PC PEDESTAL DINING SET

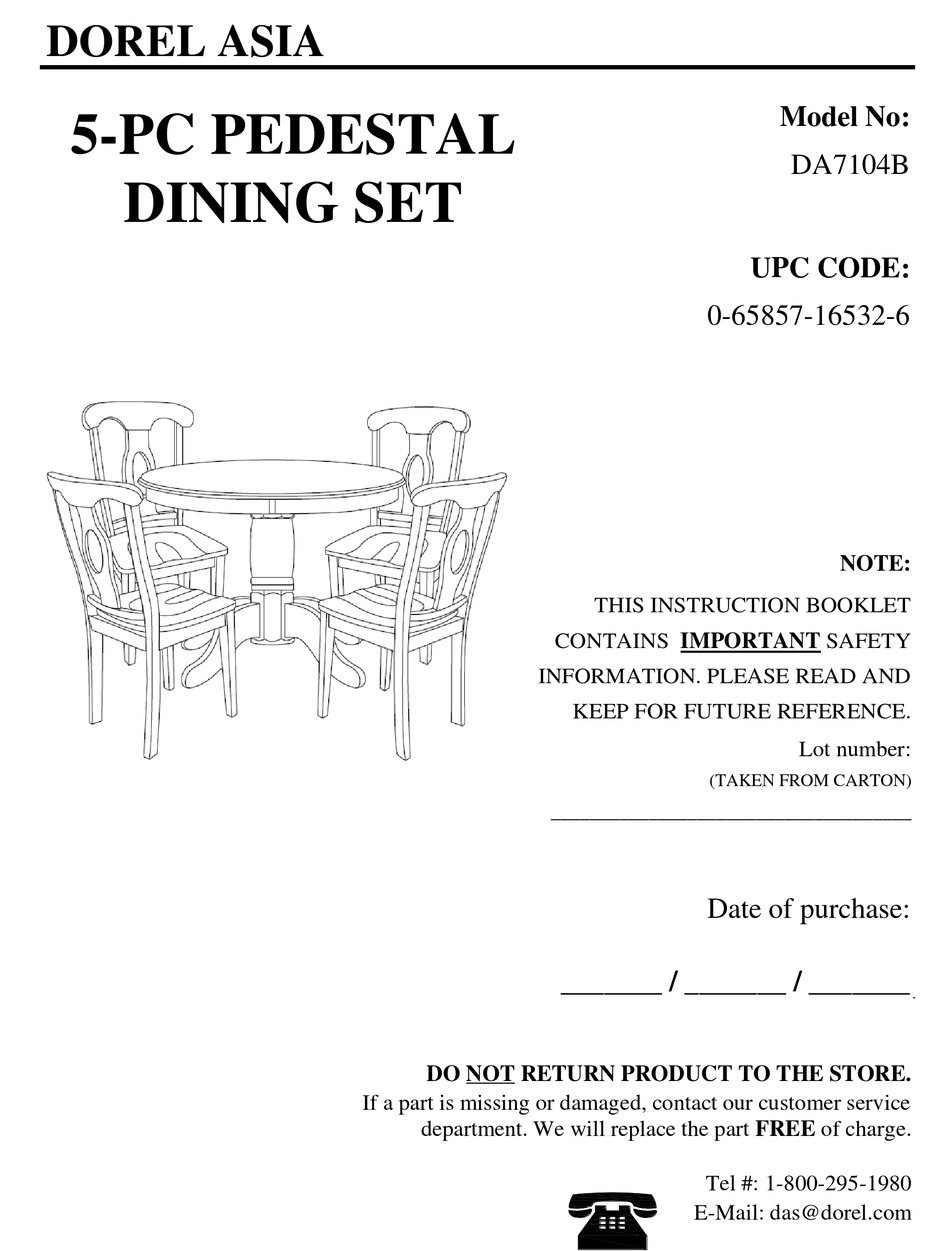

  • Page 1 DOREL ASIA Model No: 5-PC PEDESTAL DA7104B DINING SET UPC CODE: 0-65857-16532-6 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 3: Hardware List

    DA7104B 5-PC PEDESTAL DINING SET HARDWARE LIST Ø5/16" x 12MM Ø5/16" x 12MM SPRING WASHER 8 PCS 60 PCS Ø5/16" x 19MM Ø5/16" x 1-1/4" FLAT WASHER BOLT 60 PCS 4 PCS Ø1/4" x 2-1/4" BOLT ALLEN WRENCH 16 PCS 1 PC Ø1/4"...
  • Page 4: Parts List

    DA7104B 5-PC PEDESTAL DINING SET PARTS LIST TABLE TOP TABLE BASE PANEL 1 PC 1 PC CENTER POST 1 PC 4 PCS CHAIR BACK FRAME FRONT LEG 4 PCS 8 PCS SEAT FRAME SEAT BOARD 4 PCS 4 PCS 1/4"x2-1/4"...
  • Page 5 DA7104B 5-PC PEDESTAL DINING SET STEP 1 Place center post (C) upside down on a clean smooth surface. Remove the plastic plugs from the legs (D). Attach legs (D) to the center post (C) using nuts (1), spring washers (2) and flat washers (3).
  • Page 6 DA7104B 5-PC PEDESTAL DINING SET STEP 2 Turn the assembled pedestal upright. Attach the table base panel (B) to the center post (C) with spring washers (2), flat washers (3) and bolts (4) as shown. Fully tighten the bolts (4) using Allen key (7).
  • Page 7 DA7104B 5-PC PEDESTAL DINING SET STEP 3 Place the table top (A) upside down on a clean, smooth surface. Attach the table pedestal (assembled in the previous step) to the table top (A) using spring washers (2), flat washers (3) and bolts (9) as shown.
  • Page 8 DA7104B 5-PC PEDESTAL DINING SET STEP 4 Turn the table upright. Adjust the levelers underneath each leg to ensure that the table level with the floor both vertically and horizontally. You've finished assembling the dining table. STEP 5 STEP 4...
  • Page 9 DA7104B 5-PC PEDESTAL DINING SET STEP 5 Attach the front legs (F) to seat frame (G) with spring washers (2), flat washers (3) and bolts (5) using Allen Key (7). NOTE: Do not fully tighten the bolts in this step.
  • Page 10 DA7104B 5-PC PEDESTAL DINING SET STEP 6 Attach the assembled seat frame (G) to the chair back frame (E) using bolts (8), spring washers (2) and flat washers (3) at the corners of the seat frame (G). Use bolts (9), spring washers (2) and flat washers (3) at the center of seat frame (G) to secure it to chair back frame (E) as shown.
  • Page 11 DA7104B 5-PC PEDESTAL DINING SET STEP 7 To facilitate the attachment of the seat board (H) to the assembled seat frame, place seat board (H) on the table surface as shown. (Protect the smooth table surface and seat board (H) by laying a towel between the seat board (H) and the table.)
  • Page 12 DA7104B 5-PC PEDESTAL DINING SET STEP 8 Turn the chair upright. Repeat Steps 5-7 to assemble the other 3 chairs. STEP 5 STEP 4 STEP 3 STEP 6 STEP 7 STEP 10 STEP 8 STEP 11 STEP 9...
  • Page 13 DA7104B 5-PC PEDESTAL DINING SET CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 14 MODEL #: DA7104B Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819 Request Date: Name: Shipping Address:...
