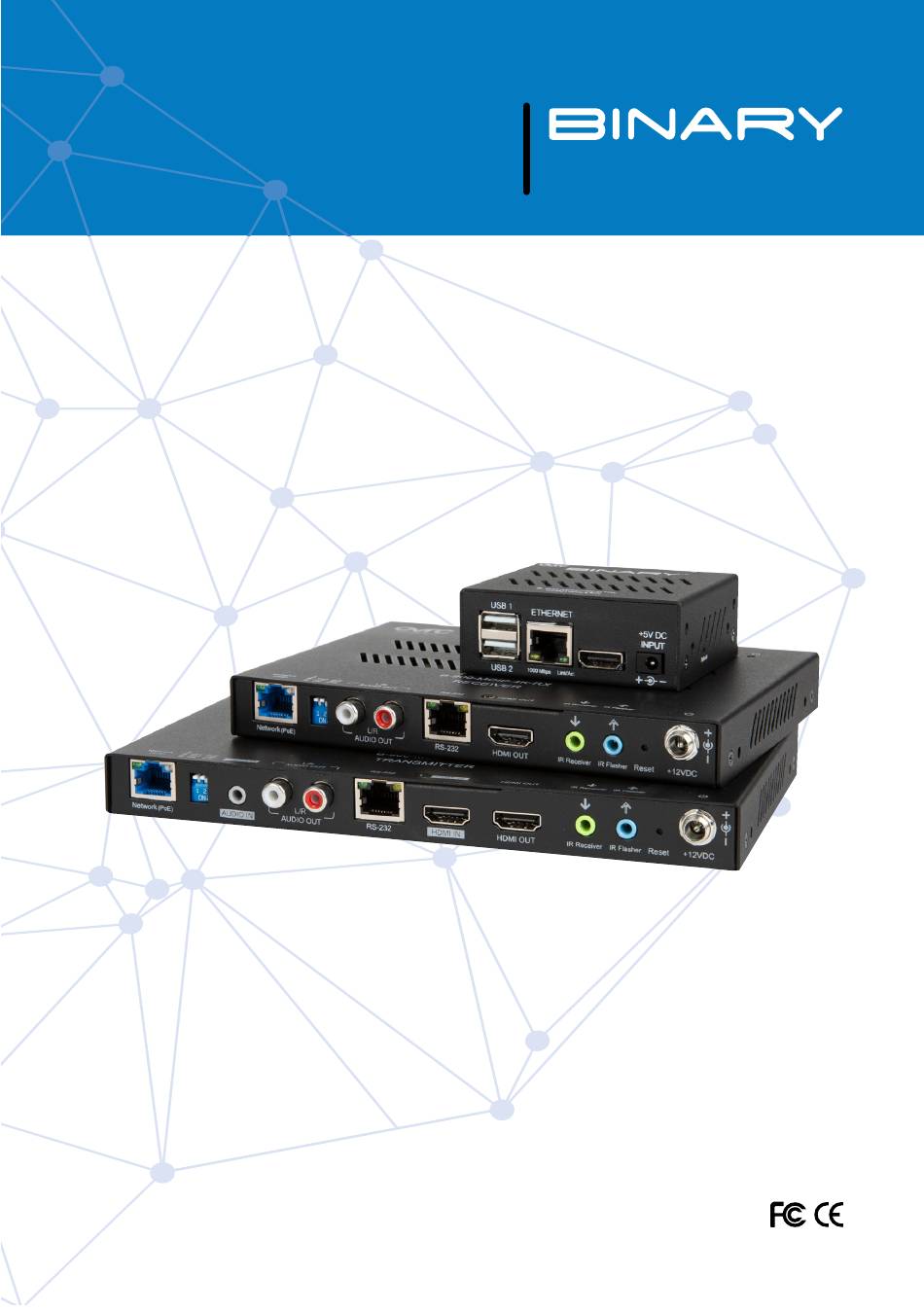

- Page 1 MEDIA OVER IP SYSTEM B-900-MOIP-4K-CTRL B-900-MOIP-4K-TX B-900-MOIP-4K-RX INSTALLATION & SETUP GUIDE Source | M (HDMI Ou...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose to water. 2. Do not remove cover. No user serviceable parts inside. 3.

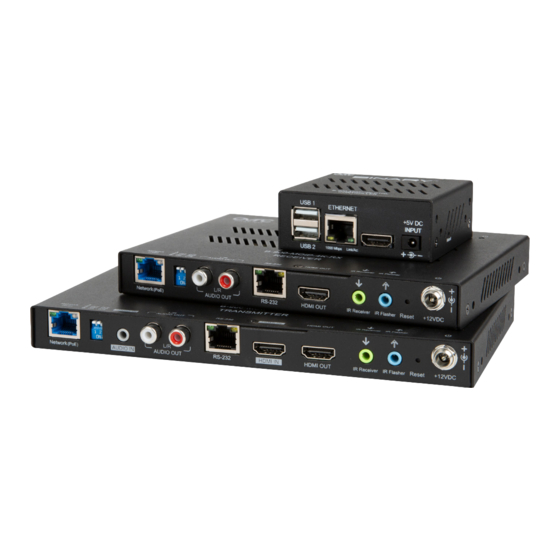

- Page 4 To get started, you will need: • 1× per source: MoIP Transmitter B-900-MOIP-4K-TX • 1× per display: MoIP Receiver B-900-MOIP-4K-RX • 1× MoIP Controller B-900-MOIP-4K-CTRL • 1× Layer 2 Managed switch • Sources, Displays, HDMI cables and category cabling MoIP Controller B-900-MOIP-4K-CTRL...
- Page 5 MoIP Transmitter B-900-MOIP-4K-TX A. Power Indicator On: Power on | Blink: Booting | Off: Power off B. System Status Light On: Connected to network with source present | Off: Not connected to network | Blinking: Connected to network and o source present C.
- Page 6 MoIP Receiver B-900-MOIP-4K-RX A. Power Indicator On: Power on | Blink: Booting | Off: Power off B. System Status Light On: Connected to network and not subscribed to transmitter stream | Off: Not connected to network | Blinking: Connected to network and subscribed to transmitter stream C.
- Page 7 NETWORKING Binary’s 900 series Media over IP system is compatible with network switches from multiple switch manufacturers that meet a set of minimum requirements. The quality, reliability and actual performance may vary. SnapAV recommends the Araknis line of 210 PoE series and 310 PoE series switches.
- Page 8 Common System Configurations Multiple Sources, Multiple Displays Receiver Receiver Serial 1 Serial 1 HDMI HDMI HDMI HDMI IR 1 IR 1 Living Room - Sony 4K Display 1 Model A MoIP Switch Cat5e Cat5e Cat5e Cat5e Cat5e Cat5e IR 1 IR 1 Control System MoIP TX 1...
- Page 9 One Source Multiple Displays HDMI HDMI Living Room - Sony 4K Display 1 Model A MoIP Switch Cat5e Cat5e Cat5e Cat5e Cat5e Cat5e Control System MoIP RX 1 MoIP RX 1 Serial Serial HDMI HDMI Cat5e Cat5e Guest Bedroom - Sony 4K HDR Display 2 Model A Cablebox...
- Page 10 3. Verify Jumbo Frame Choose SETTINGS > PORTS, then verify Jumbo Frame is set to greater than 8,000 Bytes. The default value is 9216 (the maximum) and is acceptable. 4. Setup the MoIP Controller MoIP controller Claim on OvrC and access the local UI. IMPORTANT: This is REQUIRED...
- Page 11 Connect the controller to the MoIP Switch, then use the external power supply to connect to an AC outlet. 1. Once connected, log into the MoIP Controller (username/pasword is binary/binary). You can change the user name and password under the Configure>...
- Page 12 9. Discover MoIP Transmitters and MoIP Receivers Access the local UI of the MoIP controller and click Discover and confirm to activate. The discovery process will identify all transmitters and receivers on the system and displays. Devices will be discovered and assigned a transmitter or receiver number. Transmitter and receiver numbers will correlate directly with the inputs or outputs respectively for control system integration, similar to traditional matrix switchers.
- Page 13 10. Update TX and RX Firmware (if necessary) 1. If a firmware update is required on any of the transmitters and receivers, a banner will appear on the MoIP controller main page. 2. Click UPDATE TX/RX. This will apply the firmware update to any or all devices as required. 3.
- Page 14 5. Record the Receiver number, MAC address, and connected display type/location for use during control system integration. Note: Test mode, 4K content does not show on a 1080p TV or via 1.4 HDCP connection. Downscaling can be configured to fix this by clicking next to each receiver.
- Page 16 13. Configure the MoIP Receivers 1. For displays that only support 1080p and/or HDCP 1.4, set the corresponding receiver to match this requirement to allow video to pass. 4K video input into transmitters will not show on 1080p and/or HDCP 1.4 displays. 2.
- Page 17 Create a Video Wall A video wall can be created with receivers currently discovered by the MoIP Controller. After creating the wall, it will be added to the Receiver list alongside the existing receivers. 4x4, 3x3 and 2x2 video walls can be created out of 16, 9 and 4 receivers. Each receiver can only be a member of a single video wall group.
- Page 18 Set up Control System Integrating MoIP with your chosen control system is very similar to the steps to integrate a matrix switcher. The Binary team has developed custom drivers and worked with control system manufacturers to certify. The following control system drivers, models and documentation are available: Please refer to individual driver support documents for specific features and capabilities.
- Page 19 Two (2) Year Limited Warranty This Binary product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
- Page 20 Rev: 180710-1030 © 2018 Binary...
