Chapter 2
Installation Procedures
30

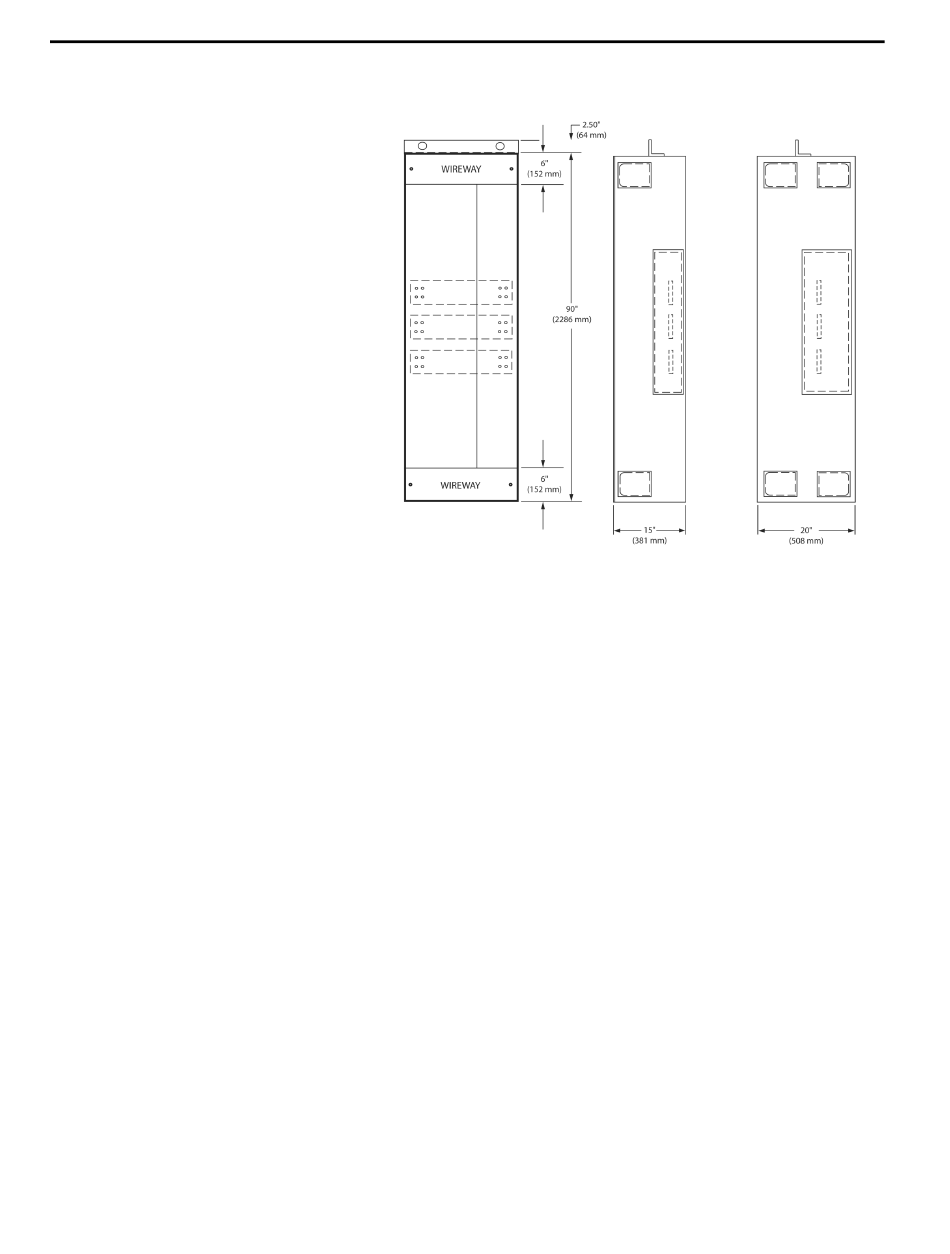

Figure 14 - Mounting Dimensions for 25 in. Wide Section with 9 in. (228.6 mm) Wireway [90 in.
(2286 mm) high]
The optional external mounting channels add 1.5 in. (38.1 mm) to the height.
Rockwell Automation Publication 2100-IN012G-EN-P - August 2016
