Description
3.2.2 Control Switches

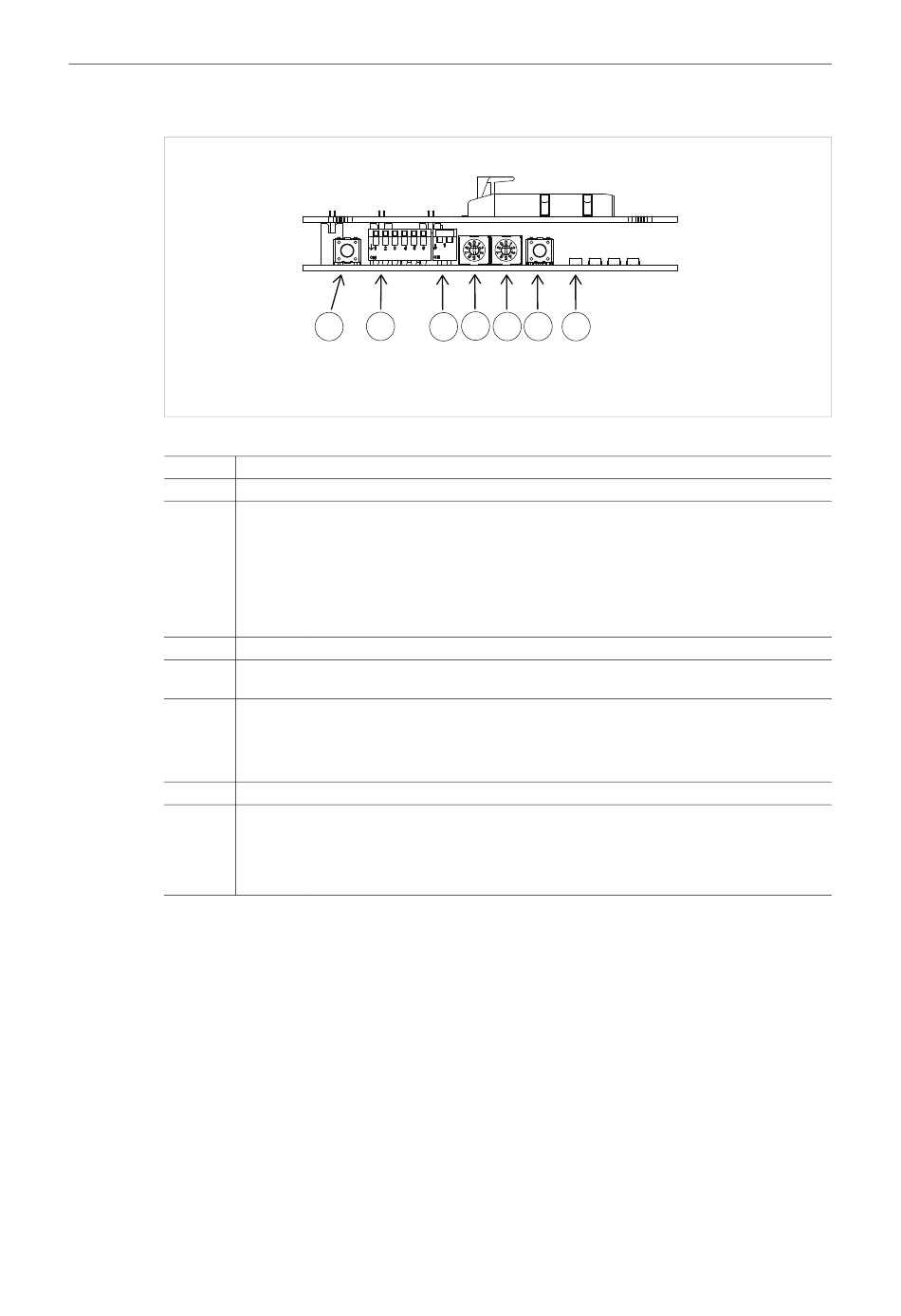

Fig. 3
No.
1
2
3
4
5
6
7
®
Anybus CompactCom Starter Kit Reference Guide
1 2
Description
Reset button. Software reset of the development board.
Control Switch
Leave all switches in off position for normal operation.
1: Power to the Anybus CompactCom module. If this switch is on, the module is pow-
ered, whether or not the PC has established a path to the module.
2: On: Reset release for the Anybus CompactCom module, overriding software reset.
The operating mode is set to [0,0,0,0] (OM[0.. 3]).
3 - 6: (not used)
Reserved. Must always be ON
Mode switch. Should always be set to 1 (USB2 to module mode).
The bevelled side of the switch should be pointed towards the chosen number.
ID switch. Defines which path is used for communication. The switch can have any value at startup.
Once a path is established, the value of the switch is connected to the path and should not be
changed. If more than one USB board are connected to a PC, each board must have a uinque ID
setting.
The bevelled side of the switch should be pointed towards the chosen number.
(not used)
Dual color LEDs. Only the LED to the left is used.
Off No power to the Anybus CompactCom module
Green Power on or Control Switch 1 is on (see no. 2 above)
Red Power off, path closed correctly
3 4 5 6 7
