Summary of Contents for Grunbeck pureliQ:A

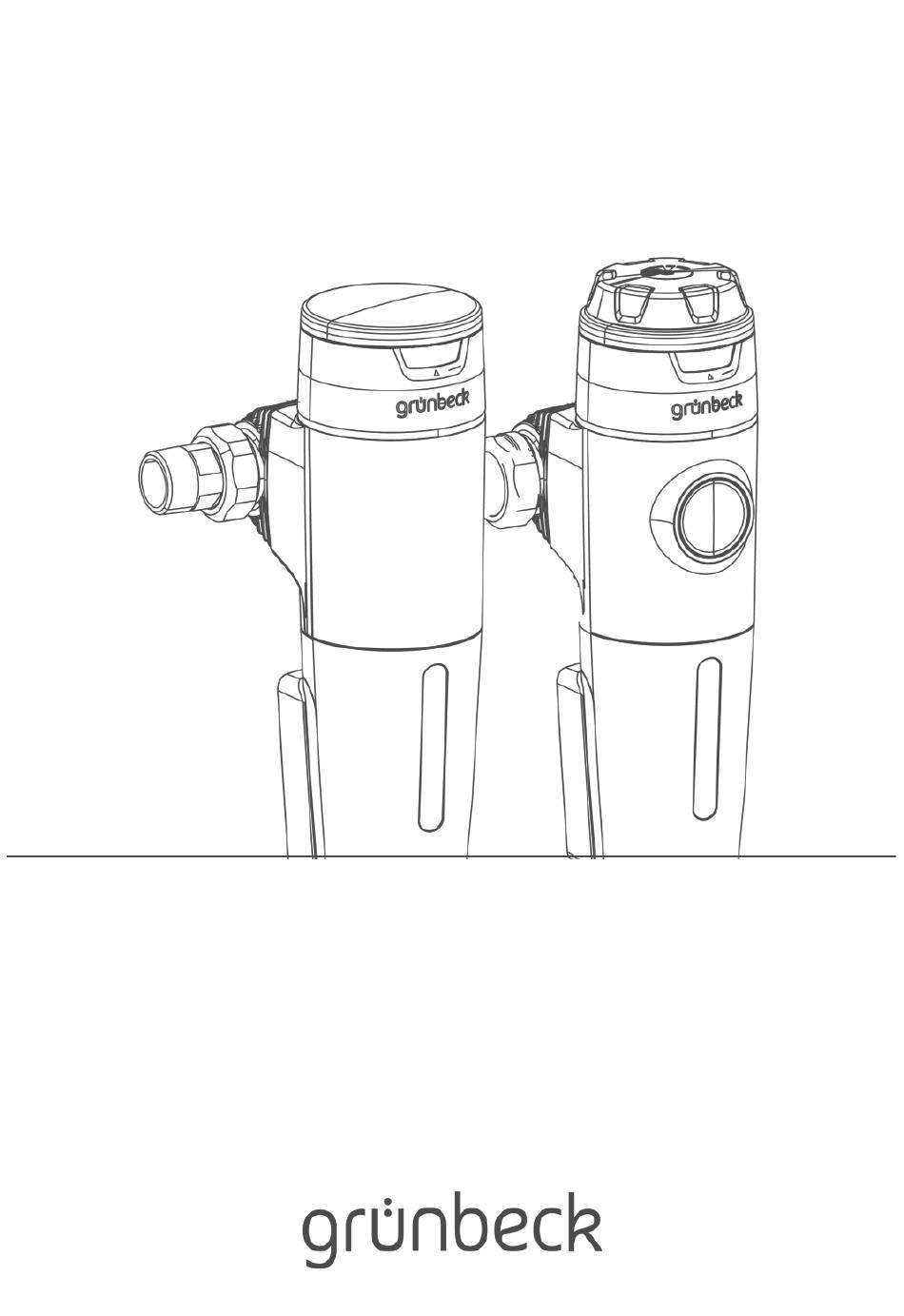

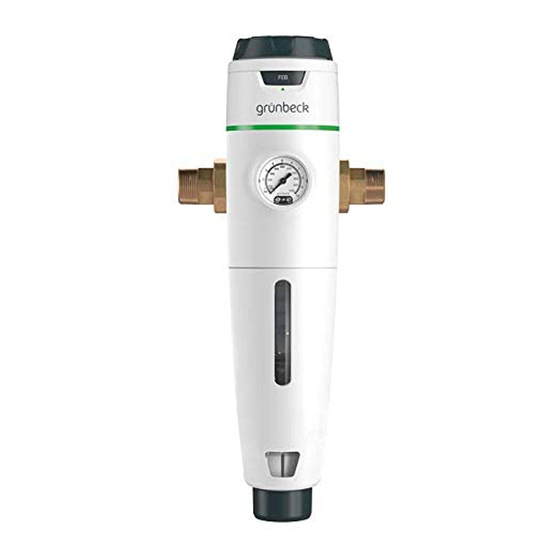

- Page 1 We understand water. Filters | Automatic filters pureliQ:A, pureliQ:AD Operation manual...
- Page 2 Central Contact Germany Sales Phone +49 9074 41-0 Technical Service Phone +49 9074 41-333 Fax +49 9074 41-120 Availability Monday to Thursday 7:00 am - 6:00 pm Friday 7:00 am - 4:00 pm Your local point of contact: see accompanying list of Copyright representatives The manufacturer reserves the copyright to this manual.
-
Page 3: Table Of Contents
Disposal ........33 Product description ..... 13 Technical specifications ..... 34 Intended use ......... 13 Product components ..... 14 Automatic filter pureliQ:A ....34 Functional description ....15 Automatic filter pureliQ:AD ... 36 Installation ........16 Other information ......38 Requirements in relation to the 10.1 Explanation of terminology ... -
Page 4: About This Manual
About this manual 1.1 Other applicable documents The following documents also apply in the case of the automatic filters pureliQ:A und pureliQ:AD: ● The manuals of all accessories used shall apply. 1.2 Target group This manual is intended for specialist installers and owners/users. -
Page 5: Symbols Used
About this manual 1.4 Symbols used This symbol identifies instructions that you must comply with for your personal safety. This symbol identifies instructions that you must comply with in order to avoid damage to property. This symbol identifies important information about the product or its handling. -
Page 6: Typographical Conventions
About this manual 1.5 Typographical conventions The following typographical conventions are used in this manual: 1.5.1 Instructions Single-step instructions or instructions where the sequence of the actions is unimportant are indicated as follows: ► Action Multi-step instructions in which the sequence must be complied with are indicated as follows: 1. -
Page 7: Validity Of The Manual
About this manual 1.6 Validity of the manual This manual applies to the following products: ● Automatic filter pureliQ:A ● Automatic filter pureliQ:AD 7 | 44... -
Page 8: Type Plate
About this manual 1.7 Type plate Type plate is located on the right side of the housing as seen from the front. Please specify the data shown on the type plate in order to speed up the processing of your enquiries or orders. Please enter the serial number below in order to have the necessary data handy whenever necessary. -
Page 9: Safety
Safety Safety WARNING: Contamination of drinking water due to improper handling. ● Risk of infectious diseases. ► Only have installation and start-up carried out by a specialist installer. 2.1 Safety measures ● Carefully read this manual before operating your product. ●... -
Page 10: Technical Safety Instructions
Safety ● Only operate the product if all components are installed properly. ● Safety device must never be removed, bridged or otherwise tampered with. ● Children are not allowed to play with the product. ● This product can be used by children over 8 years of age and persons with limited abilities or lack of experience if they are supervised or instructed in the safe use of the product and understand the resulting hazards. -
Page 11: Regulations
Safety ● CAUTION means that minor injuries may occur if the corresponding precautionary measures are not taken. ● NOTE (without a warning triangle) means that damage to property may occur if the corresponding safety measures are not taken. 2.3 Regulations During installing and start-up of the system, amongst other things comply with the following regulations and guidelines: ●... -
Page 12: Responsibilities Of The Owner-User
Safety 2.5 Responsibilities of the owner-user Comply with the following instructions to ensure the proper and safe functioning of the product: ● Assign the installation and start-up to a specialist installer. ● Have the product explained to you by the specialist installer. -
Page 13: Product Description
Product description Product description 3.1 Intended use ● The automatic filters pureliQ:A and pureliQ:AD are designed for the filtration of drinking and industrial water. ● The automatic filter pureliQ:AD with pressure reducer in addition is suitable for the adjustment of the after-pressure on the withdrawal side. -
Page 14: Product Components
Product description 3.2 Product components Designation Designation Month display Pressure reducer handwheel Click connection flange Seal Water meter screw connection Pressure gauge Automatic unit LEDs backwash intervals Push-button Inspection window 14 | 44... -
Page 15: Functional Description
Product description 3.3 Functional description The unfiltered drinking water flows into the filter from the inlet side and then from the outside in through the filter element and to the pure water outlet. Thus, foreign particles of > 100 µm in size are retained. -
Page 16: Installation
Installation Installation The installation of a filter represents a major intervention into the drinking water system and may only be performed by a specialist installer. The pureliQ filters are installed in accordance with DIN EN 806-2 and DIN 1988-200 in the cold water line downstream of the water meter and upstream of distribution lines or the devices to be protected. -
Page 17: Requirements In Relation To The Installation Site
Installation 4.1 Requirements in relation to the installation site Observe local installation directives, general guidelines and technical specifications. The installation site must be frost-proof and ensure the filter's protection from chemicals, dyes, solvents, vapours and direct sunlight. The installation location must be away from heat sources (e.g. washing machines, boilers and hot water pipes). -
Page 18: Checking The Scope Of Supply
Installation 4.2 Checking the scope of supply Designation Designation Water meter screw fittings Gaskets Automatic filters pureliQ:A or Operation manual pureliQ:AD ► Check the scope of supply for completeness and possible damage. 18 | 44... -
Page 19: Installing The Product
Installation 4.3 Installing the product In order for the water line on both sides of the filter to be properly connected to the protective-equipotential bonding, we recommend establishing a corresponding electrical bypass according to DIN VDE 0100-540. Use suitable tools for assembly and be careful not to scratch the housing with your tool. - Page 20 Installation 3. Check the flow direction given on site. 4. Rotate the click-type connection flange to the position suitable for your flow direction (marking on click-type connection flange). 5. Remove the protective caps. 6. Install the filter without stress and tighten the union nuts. 20 | 44...
- Page 21 Installation 4.3.2 Attaching the backwash connection Discharge of backwash water with drain and trap ► Install the drain connection (not included in the scope of supply) at the lower outlet of the filter. The free outlet is already integrated in the filter. 21 | 44...
-
Page 22: Start-Up
Start-up Start-up The start-up is only allowed to be carried out by a specialist. 5.1 How to start up the product 1. Open the shut-off valves. 2. Open the nearest tap after the filter as far as it will go. 3. -
Page 23: Operating The Backwash Unit
Start-up 5.2 Operating the backwash unit The filters pureliQ:A and AD automatically trigger backwashes at the set intervals. 5.2.1 Setting the backwash interval Pos. Designation Designation LED element 90d LED element 60d LED element 30d LED element 7d Push-button ► Press the button repeatedly until the desired backwash interval is set. -
Page 24: Setting The Month Display
Start-up 5.2.2 Triggering a backwash manually ► Press the button for 3 seconds. » A backwash is initiated. If the electrical power supply is interrupted, the filter automatically completes any backwash that may be in progress. During the initial start-up or after a longer interruption of the electrical power supply, the backwash protection will only be available again after approx. -
Page 25: Setting Pressure Reducer (Only Pureliq:ad)
Start-up 5.4 Setting pressure reducer (only pureliQ:AD) The factory setting for the pressure reducer is 4 bar. You can change this value as follows: 1. Open the withdrawal point. 2. Set the desired after-pressure on the handwheel for pressure reducer by turning it. 3. -
Page 26: Handing Over The Operation Manual To The Operator
Start-up 5.6 Handing over the operation manual to the operator When handing over the product, proceed as follows: 1. Inform the owner/user how the filter works. 2. Hand over all documents to the owner/user for keeping. 3. Use the manual to brief the owner/user, and answer any questions. -
Page 27: Cleaning, Inspection, Maintenance
Cleaning, inspection, maintenance Cleaning, inspection, maintenance 6.1 Cleaning NOTE: Do not clean the filter with alcohol or cleaning agents containing solvents. ● These substances will damage components made of plastic. ► Use a mild soap solution for external cleaning and flush the parts well. -
Page 28: Wearing Parts
Cleaning, inspection, maintenance 6.3 Wearing parts NOTE: Danger of damaging the system if unsuitable wearing parts are used. ● Risk of functional impairment, malfunctions and loss of warranty. ► Only use genuine wearing parts. Seals are wearing parts. Although these parts are wearing parts, we grant a limited warranty period of 6 months for them. -
Page 29: Service Kits
Cleaning, inspection, maintenance 6.4 Service kits 6.4.1 Service kits for automatic filter pureliQ:A Pos. Designation Designation Backwash valve incl. seals Fastening nut incl. seal Automatic drive Filter cylinder Cylinder O-ring Filter element Recommended Designation consisting of: Order no. replacement interval •... - Page 30 Cleaning, inspection, maintenance 6.4.2 Service kits for automatic filter pureliQ:AD Pos. Designation Designation Backwash valve incl. seals Fastening nut incl. seal Automatic drive Filter cylinder Cylinder O-ring Pressure gauge Pressure reducer Filter element Recommended Designation consisting of: Order no. replacement interval •...
-
Page 31: Spare Parts
Cleaning, inspection, maintenance 6.5 Spare parts NOTE: Risk of damage to the system if unsuitable spare parts are used. ● There is a risk of functional impairments, malfunctions and loss of warranty. ► Only use genuine spare parts. 31 | 44... -
Page 32: Faults
Faults Faults WARNING: Risk of contaminated drinking water due to unintentional, strong reduction of pressure. ● Risk of infectious diseases. ► Remedy this malfunction immediately. Fault Explanation Remedy The shut-off valves are not Open the shut-off valves The water pressure at the open completely. -
Page 33: Disposal
Disposal Disposal This symbol indicates products or product components that must not be disposed of as household waste. The labelled product or product components must be collected separately and recycled in an environmentally sound manner. Do not dispose of the packaging, the product and/or the accessories with the domestic waste. -
Page 34: Technical Specifications
Technical specifications Technical specifications 9.1 Automatic filter pureliQ:A Dimensions and weights A Installation height up to [mm] centre of connection B Installation length with/without screw [mm] 185/100 182/100 191/100 connection C Min. distance to wall [mm] D Installation depth up to... - Page 35 5 – 40 Ambient temperature [°C] DVGW registration number NW-9301CT0031 SVGW certificate number pending Order no. 101 420 101 425 101 430 Automatic filter pureliQ:A pressure loss curve Pos. Designation Designation Differential pressure [bar] Flow rate [m³/h] 35 | 44...
-
Page 36: Automatic Filter Pureliq:ad
Technical specifications 9.2 Automatic filter pureliQ:AD Dimensions and weights A Installation height up to [mm] centre of connection B Installation length with/without screw [mm] 185/100 182/100 191/100 connection C Min. distance to wall [mm] D Installation depth up to [mm] centre of connection E Total height [mm]... - Page 37 Technical specifications Performance data Flow rate as per DIN [m³/h] EN 1567 Pore size [µm] Largest/smallest pore [µm] 120/80 size Nominal pressure PN 16 General Backwash water volume at 4 bar inlet approx. 14 pressure 5 – 30 Water temperature [°C] 5 –...
-
Page 38: Other Information
Other information 10 Other information 10.1 Explanation of terminology Filter element Part of the filter that ensures the retention of the particles. The filter's ability to retain particles and suspended matter of Pore size a certain size range, regardless of the type of filter material. It is defined by the upper and lower filtration fineness Flow rate at which, with a clean filter, either the pressure Nominal flow rate... -
Page 39: Operation Log
Operation log 11 Operation log ● Product designation: Automatic filter pureliQ:____ ● Order no.: 101 ___ ● Serial no.: ________________ Date Work performed Signature 39 | 44... - Page 40 European guidelines in terms of its design, construction and execution. This certificate will become invalid if the system is modified in a way not approved by us. Automatic filter pureliQ:A / AD Serial no.: See type plate The aforementioned system also complies with the following directives and provisions: •...
- Page 41 Notes Notes 41 | 44...
- Page 42 Index Index Installation ....9, 11, 12, 16 Backwash ......15, 32 Maintenance .... 4, 9, 11, 12, 27 Cleaning ........ 27, 38 Pressure reducer . 13, 14, 15, 25, 30 Disposal ........33 Service kit......29, 30 Spare parts ......9, 31 Fault ...........
- Page 44 ndex Grünbeck Wasseraufbereitung GmbH Josef-Grünbeck-Str. 1 89420 Hoechstaedt Germany +49 9074 41-0 +49 9074 41-100 For more information. go info@gruenbeck.com to www.gruenbeck.com www.gruenbeck.com...
