Grindmaster CS1-110 Operator's Manual

Cs series

Hide thumbs

Table of Contents

Quick Links

CS1-110, CS1-220, CS2-220, CS3-220

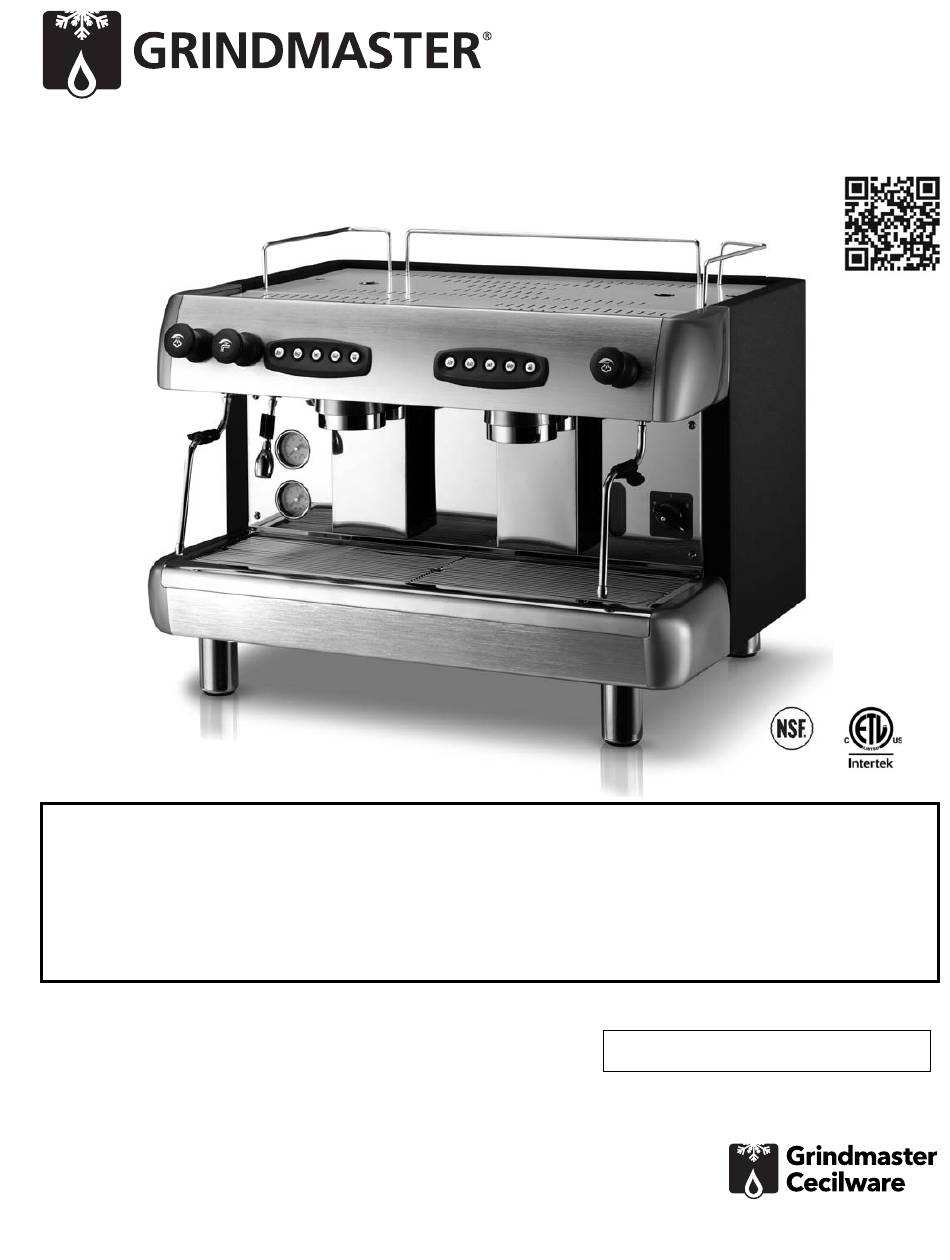

Model CS2-220

Safety Information..................2

Speciﬁcations...........................3

Overview..................................4

Installation...............................6

Programming ..........................6

Operation ................................7

Thank you for purchasing this quality espresso machine. For your safety and the safety of others, read all warnings

and the operator manual before installing or using the product. Properly instruct all operators. Keep training

records. For future reference, record serial number here:

Grindmaster-Cecilware

4003 Collins Lane, Louisville, KY 40245 USA

Phone: 502.425.4776 Toll Free: 800.695.4500

Fax: 502.425.4664

Web: gmcw.com Email: info@gmcw.com

Printed in Taiwan

CS Espresso Machine

Cleaning...................................8

Adjustments ..........................10

Draining.................................11

Troubleshooting....................11

Parts Diagram........................12

Wiring Diagram.....................26

Operator Manual

Activate your warranty now at

http://gmcw.com/warranty-registration

Grindmaster-Cecilware

industry's BEST warranty. Visit gmcw.com

for warranty terms and conditions.

provides

the

0318 Form # CW-345-02

Part # 390-00119

Table of Contents

Need help?

Do you have a question about the CS1-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grindmaster CS1-110

Page 1: Table Of Contents
Operator Manual CS Espresso Machine CS1-110, CS1-220, CS2-220, CS3-220 Activate your warranty now at http://gmcw.com/warranty-registration Model CS2-220 Table of Contents Safety Information....2 Cleaning........8 Speciﬁcations......3 Adjustments ......10 Overview........4 Draining.........11 Installation.......6 Troubleshooting....11 Programming ......6 Parts Diagram......12 Operation ........7 Wiring Diagram.....26 Thank you for purchasing this quality espresso machine. For your safety and the safety of others, read all warnings and the operator manual before installing or using the product.
Page 2: Safety Information
This product requires an approved back ﬂow prevention water device, such as a double check valve, to be installed between the machine and the water supply. Please follow maintenance and cleaning instructions speciﬁed in this manual to ensure the best operation efﬁciency of machine. GB Series Grindmaster Cecilware ® ® CS Espresso Machine...
Page 3: Speciﬁcations
Do not remove this label. Figure A Rough-In Drawing 24.8” (63 cm) 20.5” 18.9” (52 cm) (48 cm) 27.8” (70.5 cm) 37.4” (95.0 cm) Figure B CS Espresso Machine Grindmaster ®®...
Page 4: Overview
Speciﬁcations (continued) Speciﬁcation Table Model Number of Heads Boiler Capacity Electrical CS1-110 1 Group 6 quarts / 6 L 110/120V / 1Ph / 50/60 Hz / 18 A / 2 kW CS1-220 1 Group 6 quarts / 6 L 220/240V / 1Ph / 50/60 Hz / 10 A / 2000 W...
Page 5 17 Drain tray 8 Brewing group 18 Leg 9 Porta Filter 20 Hot water knob Figure F Control Panel Continuous Flow Button Small single portion Large single portion Small double portion Large double portion Figure G CS Espresso Machine Grindmaster ®®...
Page 6: Installation
It was thoroughly inspected before leaving the factory. In case of damage, contact the shipper, not Grindmaster-Cecilware. NOTICE: This equipment must be installed in compliance with applicable Federal, State, and/or Local plumbing codes having jurisdiction.
Page 7: Operation
Steam Wand: This can be used by turning the knob counterclockwise, which allows for a varied amount of steam or by pulling out the handle which will dispense the maximum amount of steam. Figure K CS Espresso Machine Grindmaster ®®...
Page 8: Cleaning
This auto back ﬂushing system will complete 10 remaining in the nozzle. cleaning cycles. (see Figure O) NOTE: If you want to discontinue the cleaning, press 3rd button to stop. Grindmaster ® CS Espresso Machine...
Page 9 Figure R 2. Wipe and remove sediments in the discharge trough with a wet cloth and wash with hot water to clear the discharge tube. 3. If water does not discharge properly, place a Figure P CS Espresso Machine Grindmaster ®®...
Page 10: Adjustments
0.1 bar variation. 2. Attach Porta Filter into the brewing group with ﬁlled ground coffee. 3. Press continuous ﬂow button. Turn screw clockwise as shown in Figure T to increase pressure; turn counterclockwise to reduce pressure. Grindmaster ® CS Espresso Machine...
Page 11: Draining
Note: Wait at least 3 seconds to restart the machine after turning it off to ensure previous error stored in memory is cleared. If you need help, call Grindmaster-Cecilware Technical Service Department, (502) 425-4776 or (800) 695-4500 (USA & Canada only) (Monday through Friday 8 AM - 6 PM EST). Please have the model and serial number ready so that accurate information can be given.
Page 12: Parts Diagram
Parts Diagram Body Parts CS1-110, CS1-220 Item Part # Description Item Part # Description SCREW M4*16 SCREW M4*5 (SUS) LEFT SIDE PANEL(BLACK) 410-00482 FOOT SCREW M4*5 NUT M10 CABLE COVER BOTTOM METAL COVER (ETL) TOP RIGHT SIDE PANEL SUPPORT CABLE PROTECTION RING (ETL)
Page 13 RIGHT SIDE PANEL (BLACK) DOWN LEFT SIDE PANEL BACK PANEL(BLACK) 410-00484 CUP RACK CUP FENCE-RIGHT 410-00488 LOWER DRAIN PAN UPPER STAINLESS STEEL GRILL 410-00487 DRAIN PAN CUP FENCE-REAR BASE SURROUND FRONT CUP FENCE-LEFT SCREW ( 4mm*15 ) CS Espresso Machine Grindmaster ®®...
Page 14 RIGHT SIDE PANEL (BLACK) 410-00490 LOWER DRAIN PAN BACK PANEL(BLACK) 410-00489 DRAIN PAN CUP FENCE-RIGHT BASE SURROUND FRONT GROUP COVER VALVE COVER CUP FENCE-REAR SURROUND STEEL UPPER STAINLESS STEEL GRILL DRAIN TUBE 5/8" HIGH TEMP Grindmaster ® CS Espresso Machine...
Page 15 S.T. STEEL WIRE PIPE (600mm) 01329L MOTOR 220-240V 50/60Hz 1.6A (ETL) 410-00491 CAPACITOR 10μF 01330L PUMP FOR CS1-220 PUMP FOR CS2 & CS3 PUMP FOR CS1-110 01312L PIPE GASKET TEFLON NPT FITTING NPT3/8"*NPT1/2" S.T. STEEL WIRE PIPE (2400mm) CS Espresso Machine Grindmaster...
Page 16 PROBE ( SUS304 /3mm L132 ) EXPANSION DRAIN TUBE 410-00496 BRASS NUT NUT M8 410-00497 TEFLON WASHER SPRING WASHER M8 410-00498 SI O-RING 410-00493 PRESSURE RELEASE TAP BULK PS1/4xPS1/4 410-00499 SHAFT BOILER DRAINTUBE REAR 410-00500 ANTI-EDDY VALVE BASE Grindmaster ® CS Espresso Machine...
Page 17 410-00504 PROBE ( SUS304 /3mm L132 ) 410-00493 PROBE FIXED BOLT PRESSURE RELEASE TAP BULK UNIT PS1/4xPS1/4 BOILER DRAINTUBE REAR 410-00502 PROBE FIXED SUPPORT ELBOW BRASS 5/16*1/4 LEVEL PROBE BASE NUT M8 BRASS CONNECTOR 1/2-20UNF*PT1/4 SPRING WASHER M8 CS Espresso Machine Grindmaster ®®...
Page 18 Parts Diagram (continued) Boiler Hydraulic Circuit CS3 Grindmaster ® CS Espresso Machine...
Page 19: Item Part # Description Spring Washer M8
FLOWMETER INLET TUBE 410-00498 SI O-RING HEAT EXCHANGER RETURN TUBE LEFT 410-00499 BRASS CONNECTOR PT1/4*1/2-20UNF*1/2-20UNF HEAT EXCHANGER INLET TUBE RIGHT 410-00500 ANTI-EDDY VALVE BASE BOILER DRAINTUBE REAR WATER REFILL SET NUT M8 STEAM OUTLET TUBE FRONT RIGHT CS Espresso Machine Grindmaster ®®...
Page 20 SIGHT GLASS RUBBER GASKET�10.69*ψ 3.5� 01306L COPPER SEAL 01372L BRASS NUT 01373L LEVEL-INDICATING BALL 01307L SIGHT GLASS PC PANNEL 01374L WASHER (M8*3t) 01376L LAVEL CONNECTOR (LOWER) WATER LEVEL ASSEMBLY SIGHT GLASS REAR COVER 01370L LEVEL CONNECTOR (UPPER) LEVEL LABEL Grindmaster ® CS Espresso Machine...
Page 21 Parts Diagram (continued) Distribution Group Assembly CS1-110, CS1-220 CS2-220, CS3-220 Item Part # Description Item Part # Description DISTRIBUTION GROUP CAP 410-00506 HEX SCREW M4*12 TEFLON GASKET D22*d18*2.0 01381L GROUP JET D0.8 01382L GROUP FILTER ST.STEEL D13.8*d10.5*11.5 01301L PAEKER GROUP SOLENOID VALVE COIL 208~240V...
Page 22 COPPER SEAL EXTERNAL SPRAYER STEAM TAP SPRING 410-00514 STEAM TUBE TAP CONNECTOR 410-00515 STEAM TUBE KIT 01335L CHROMED TAP SHAFT 410-00516 ANTISCORCHING CLIP WASHER (SUS 304) O-RING TIGHTING GASKET STEAM SPRAYER HOT WATER SPRINKLE-NOZZLE (UNDER) Grindmaster ® CS Espresso Machine...
Page 23 2 CUP PORTA FILTER ASSEMBLY 01346 FILTER HOLDER KNOB CAP 01354 FILTER HOLDER BACK LID 01348 1 CUP STAINLESS STEEL FILTER 01351 1 CUP BRASS SPOUT 01347 1 CUP PORTA FILTER ASSEMBLY 01346 SILICA GEL WASHER CS Espresso Machine Grindmaster ®®...
Page 24 TEMP. PROTECTION FUSE (ETL) 410-00523 MAIN SWITCH ASSEMBLY /N3 (ETL)(63A) 01326L SI_501 CE PRESSURE SWITCH 220V AC 7KW 30A 410-00524 MAIN SWITCH ASSEMBLY FOR CS3 410-00529 SELECT SWITCH 410-00525 MAIN SWITCH ASSEMBLY FOR CS1 CS2 Grindmaster ® CS Espresso Machine...
Page 25 SPRING WASHER M8 SCREW M8*25 410-00530 PRESSURE GAUGE 0 � 20 BAR 410-00531 PRESSURE GAUGE 0 ~ 6 BAR ANTI FOOT VIBRATION SPRING WASHER M6 NUT M6 410-00532 DRAIN BASIN 410-00533 SPRING WASHER M10 410-00534 NUT M10 CS Espresso Machine Grindmaster ®®...
Page 26: Wiring Diagram
Wiring Diagram CS1-110 White Green Black Grindmaster ® CS Espresso Machine...
Page 27 Wiring Diagram (continued) CS1-220 Green White White White Violet CS Espresso Machine Grindmaster ®®...
Page 28 Wiring Diagram (continued) CS2-220 Violet White Green Grindmaster ® CS Espresso Machine...
Page 29 Wiring Diagram (continued) CS3-220 Black Black Green White White Violet CS Espresso Machine Grindmaster ®®...
Page 30 Grindmaster ® CS Espresso Machine...
Page 31 CS Espresso Machine Grindmaster ®®...
Page 32 Grindmaster-Cecilware 4003 Collins Lane, Louisville, KY 40245 USA Phone: 502.425.4776 Toll Free: 800.695.4500 Fax: 502.425.4664 Web: gmcw.com Email: info@gmcw.com 0318 Form # CW-345-02 ©2018 Grindmaster-Cecilware Part # 390-00119 Printed in Taiwan...
