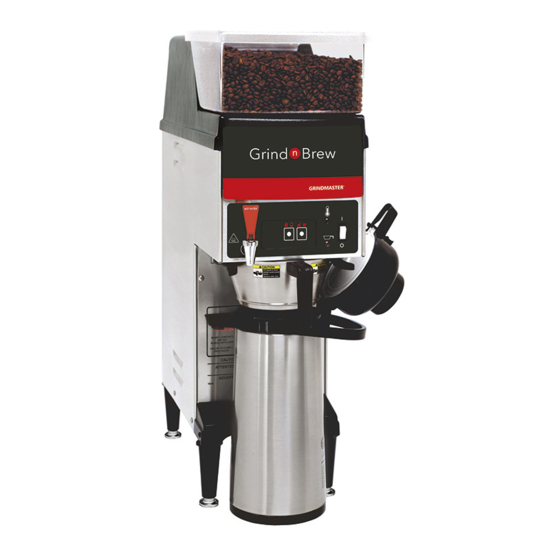

Grind'n Brew Coffee Systems
Operation and Instruction Manual
11, -21, -10, -20 including H, HQ versions
Models:
-
T
ABLE OF
Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Water Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Electrical Hook-up & Start-up Procedure . . . . . . . . .6
Operating the Touchpad . . . . . . . . . . . . . . . . . . . . .6
Brewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
User Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Bean Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pulse Brew Cycle . . . . . . . . . . . . . . . . . . . . . . . . . .8
User Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Brew Volume Setting . . . . . . . . . . . . . . . . . . . . . . .10
System Restore Feature . . . . . . . . . . . . . . . . . . . .10
Factory/Field Test Menu . . . . . . . . . . . . . . . . . . . .11
Water System Errors . . . . . . . . . . . . . . . . . . . . . . .12
Timer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Setting the Grind . . . . . . . . . . . . . . . . . . . . . . . . . .12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Shear Plate Replacement . . . . . . . . . . . . . . . . . . .14
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . .15
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . .22
PRINTED IN USA
C
ONTENTS
for
Model Grind'n Brew-10H
Model Grind'n Brew-20H
Grindmaster Corporation
4003 Collins Lane
Louisville, KY 40245 USA
(502) 425-4776
(800) 568-5715 (Technical Service Only)
FAX (502) 425-4664
www.grindmaster.com
®
Model Grind'n Brew-11H
Model Grind'n Brew-21H
(800) 695-4500
Patents Pending
1008 Form # BW-350-14
Part #70661
