Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

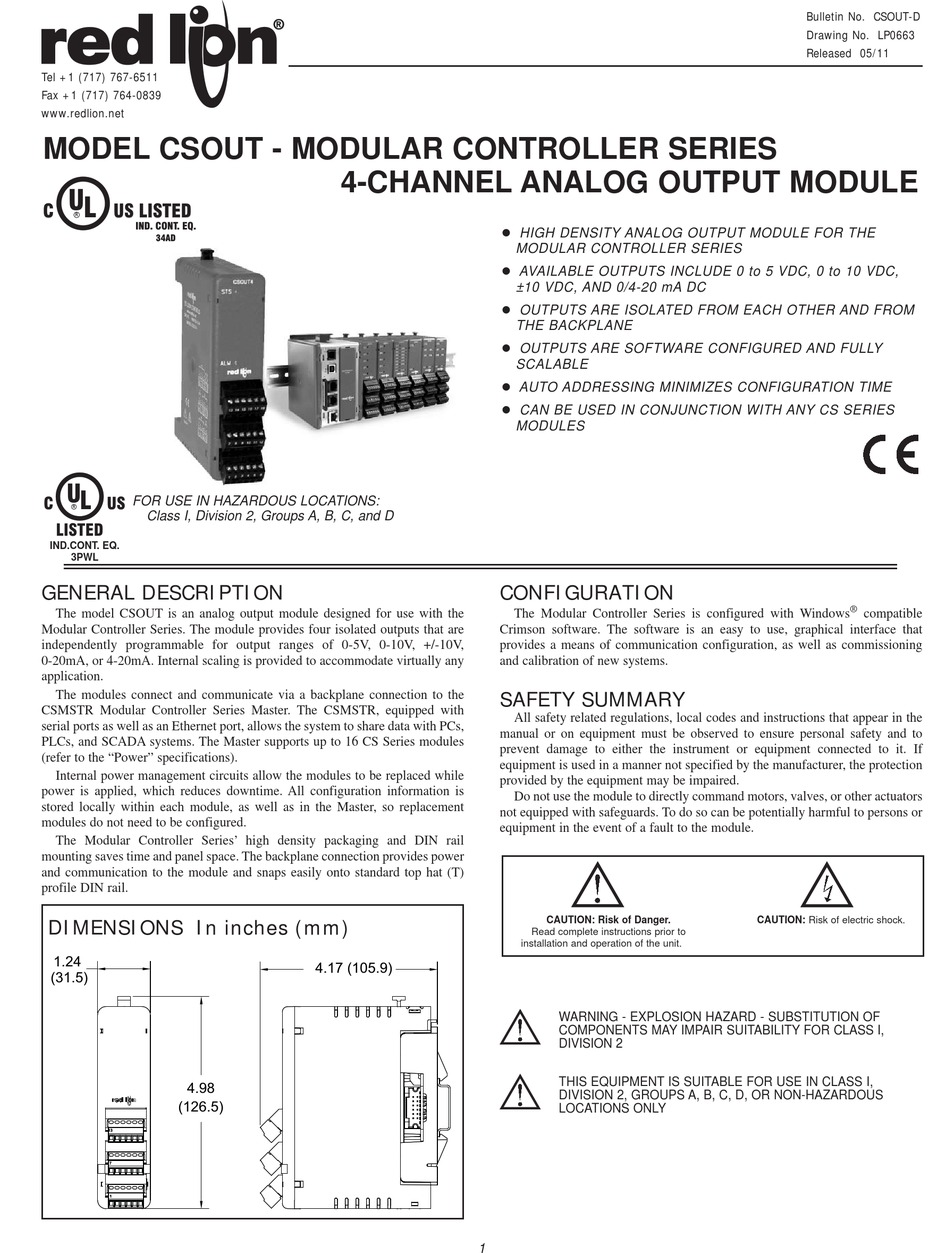

MODEL CSOUT - MODULAR CONTROLLER SERIES
U L
C C
US LISTED
US LISTED
R
IND. CONT. EQ.
34AD
U L
C C
US
US
FOR USE IN HAZARDOUS LOCATIONS:
R
Class I, Division 2, Groups A, B, C, and D
LISTED
IND.CONT. EQ.
3PWL
GENERAL DESCRIPTION
The model CSOUT is an analog output module designed for use with the
Modular Controller Series. The module provides four isolated outputs that are
independently programmable for output ranges of 0-5V, 0-10V, +/-10V,
0-20mA, or 4-20mA. Internal scaling is provided to accommodate virtually any
application.
The modules connect and communicate via a backplane connection to the
CSMSTR Modular Controller Series Master. The CSMSTR, equipped with
serial ports as well as an Ethernet port, allows the system to share data with PCs,
PLCs, and SCADA systems. The Master supports up to 16 CS Series modules
(refer to the "Power" specifications).
Internal power management circuits allow the modules to be replaced while
power is applied, which reduces downtime. All configuration information is
stored locally within each module, as well as in the Master, so replacement
modules do not need to be configured.
The Modular Controller Series' high density packaging and DIN rail
mounting saves time and panel space. The backplane connection provides power
and communication to the module and snaps easily onto standard top hat (T)
profile DIN rail.
DIMENSIONS In inches (mm)
1.24
(31.5)
4.98
(126.5)
13
7
1
4-CHANNEL ANALOG OUTPUT MODULE
4.17 (105.9)
1
HIGH DENSITY ANALOG OUTPUT MODULE FOR THE
MODULAR CONTROLLER SERIES
AVAILABLE OUTPUTS INCLUDE 0 to 5 VDC, 0 to 10 VDC,
±10 VDC, AND 0/4-20 mA DC
OUTPUTS ARE ISOLATED FROM EACH OTHER AND FROM
THE BACKPLANE
OUTPUTS ARE SOFTWARE CONFIGURED AND FULLY
SCALABLE
AUTO ADDRESSING MINIMIZES CONFIGURATION TIME
CAN BE USED IN CONJUNCTION WITH ANY CS SERIES
MODULES
The Modular Controller Series is configured with Windows
Crimson software. The software is an easy to use, graphical interface that
provides a means of communication configuration, as well as commissioning
and calibration of new systems.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the module to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the module.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
Bulletin No. CSOUT-D
Drawing No. LP0663
Released 05/11
®
compatible
CAUTION: Risk of electric shock.
