- Page 1 Tempoplex Plus drain, high drainage capacity Instructions for Use Model Year built: 6960 from 01/2010 en_INT...
- Page 2 Tempoplex Plus drain, high drainage capacity 2 from 13...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview 2.2.2 Technical data Handling Assembly information 3.1.1 Mounting conditions 3.1.2 Installation dimensions Assembly... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information

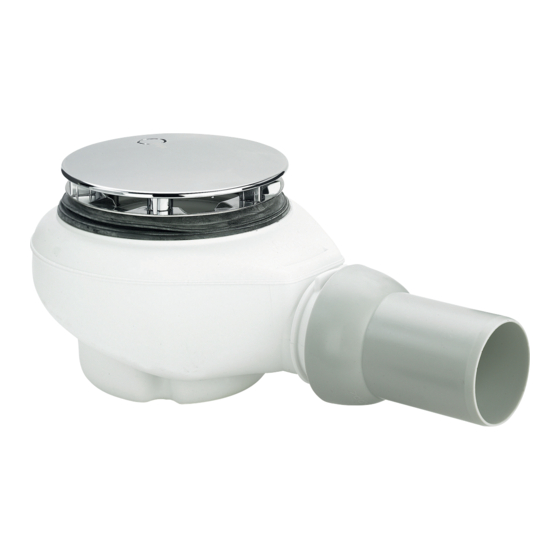

(DN 50) for shower trays with 90 mm drain holes. The drain is suit- able for shallow shower trays and provides a high drainage capacity. Detailed information regarding all shower tray models and the corre- sponding Viega drains can be found in the catalogue or on the Internet. Product description 2.2.1 Overview Fig. -
Page 7: Technical Data
Product information 2.2.2 Technical data Drainage capacity at an accumulation height of 0.85 l/s 15 mm Diameter drain hole 90 mm DN (nominal diameter) drain support 50 mm Height 90 mm Ä Chapter 3.1.2 „Installation dimensions“ on page 8 Dimensions and installation depth Water head seal 50 mm Tempoplex Plus drain, high drainage capacity... -
Page 8: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting conditions The following requirements exist for the mounting of the drain: The shower tray is installed. The drainage line is installed all the way to the shower tray. The underside of the shower tray is accessible. The drainage capacity is sufficient at an accumulation height of 15 mm. - Page 9 Handling Cut the seal into two pieces at the sealing bead. Insert seal Proceed as follows to mount the drain: Place the seal on the sealing surface of the drain and push into the holding groove. Position the body of the drain unit with seal under the shower tray. Push the upper part of the seal through the drain hole.
- Page 10 Handling Insert screws by hand. NOTICE! Only use a screwdriver, not a cordless screwdriver. Tighten screws evenly. Insert immersion pipe into the odour trap. Press the cover plate onto the three fixing points. Tempoplex Plus drain, high drainage capacity 10 from 13...
-
Page 11: Connecting The Wastewater System
Handling 3.2.2 Connecting the wastewater system Proceed as follows to connect the drain to the wastewater system: Requirement: The drain unit is installed onto the shower tray. Turn ball joint drain socket until the required position has been reached. Push wastewater pipe onto the drain socket. 3.2.3 Leakage test The leakage test is only carried out as a visual inspection. -
Page 12: Cleaning The Drain
Handling Cleaning the drain NOTICE! Be careful not to damage the odour trap when cleaning the drain system. Remove cover plate. Remove the immersion pipe upwards. For free access to the drain pipe: Grip the closing plug on the lug with pliers and pull off. Clean the drain carefully to avoid damaging the fitting. -
Page 13: Disposal
Handling Insert closing plug flush with the surface. Make sure to position the closing plug properly. The lug must be positioned vertically. Insert immersion pipe. Mount cover plate. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
