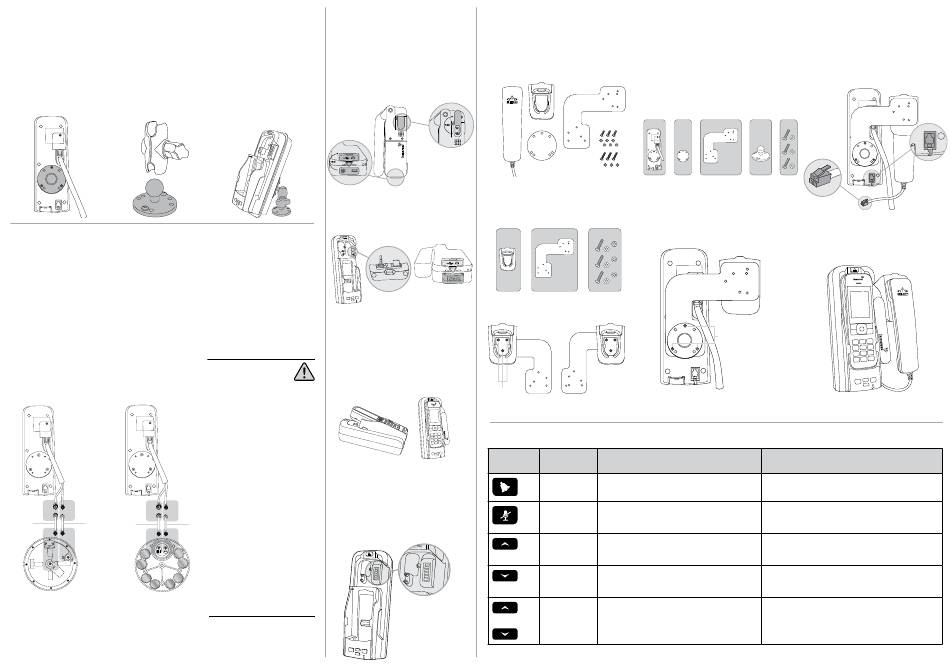

Beam IsatDock2 LITE Quick Start Manual page 2

3. Mounting Cradle
The IsatDock2 LITE is supplied with a universal RAM® mounting bracket that
enables mounting to any flat surface (vertical or horizontal) within a vehicle,
attached on a wall or on a table as required.
1. Attach one pivot base to 2. Secure the second pivot
the rear of the IsatDock2 base to the location you
LITE using the M4 screws have selected for mounting
supplied. the IsatDock2 LITE.
4. Antenna Connection
The antenna connections exit from the rear of the IsatDock2 LITE cradle, via the antenna
loom. There are two RF connections required, the Satellite Connector (TNC-Female) and
GPS Connector (SMA-Female).
1. Refer to the antennas installation guide for antenna mounting and location
requirements.
2. Connect the antenna cable labelled "Inmarsat" to the IsatDock2's TNC connector
3. Connect the antenna cable labelled "GPS" to the IsatDock2's SMA connector
4. Connect the antenna cable labelled "Inmarsat" to the antenna via the SMA connector.
5. Connect the antenna cable labelled "GPS" to the antenna via the SMA connector.
A B
TNC SMA
2 3 TNC 2 3 SMA
Satellite
GPS
Satellite
Antenna
Antenna
Antenna
Cable Cable
Cable
4 5 4 5
SMA
SMA
SMA SMA
A - Connection with Fixed/Directional Antenna (Passive)
B - Connection with Transport Mag mount Antenna (Active)
5. Docking and Un-docking your
IsatPhone 2
1. Lift the antenna 'cover' and rotate
through 180 degrees, then push down
into the open position.
3. Use the interconnecting
2. The 'cover' in the base of the phone
arm of the RAM® mount
should be rotated 180 degrees to be in
to secure the IsatDock2
the open position
LITE to the pivot base and
tighten into the desired
position firmly using the
wing nut on the arm.
3. Detach the USB/Audio adapter from
the dock and insert by hand in the
base of the IsatPhone 2.
4. To dock the handset, open the antenna
slightly, align the IsatPhone 2 with the
phone tray and slide the handset down
until it seats flush to the bottom of
the tray. Swing the phone down into
the cradle by applying pressure to the
top of the handset. An audible 'click' is
heard when the phone is in the docked
WARNING
position.
DO NOT pull with force on the
cables from the rear of the IsatDock2
LITE. Please install strain relief
clamping for the antenna cables
where required.
Correct installation of the antenna
system is a vital part of the IsatDock2
LITE system, to ensure reliable
5. To remove the handset from the
functionality, and drop-free calls.
cradle, press the EJECT button at the
WARNING
top of the docking station. The dock
Changes or modifications not
will swing out and the handset can be
expressly approved by BEAM
removed.
Communications could voidthe
product warranty.
6. Place the adapter back in its dedicated
GPS
Antenna
slot, when the phone is not in the
WARNING
Cable
docking unit.
To satisfy FCC RF exposure
requirements for mobile transmitting
devices, a separation distance of 55
cm or more should be maintained
between the antenna of this
device and persons during device
operation. To ensure compliance,
operations at closer than this
distance is not recommended.
6. Privacy Handset (Optional - Extra Order)
The IsatDock2 LITE provides a RJ9 audio socket on the bottom of the docking unit, for connection to the BEAM privacy handset. This
provides a privacy handset function, conveniently mounted next to the IsatDock2 LITE cradle.
1. The Privacy Handset Kit (purchased/ 3. Mount the spacer plate and the mounting
ordered separately) contains a bracket, bracket to the rear of the IsatDock2 LITE,
by using the longer screws provided with
spacer plate, screws, washers and nuts.
the kit. The original RAM® Base is also
reinstalled on top of the plate and spacer.
Install in the following order:
a
+
2. Mount the handset cup to the bracket
which can be installed to the left
[a] Rear of IsatDock2 LITE [b] Spacer plate
or right side of the dock. Use the
[c] Mounting bracket
washers and nuts behind the bracket
[e] 3 x M4x18 screws and washers
to secure the cup.
a b c
+ +
[a] Handset cup [b] Mounting bracket
[c] 3 x M4x14 screws, washers and nuts
3 screws
M4x14
Left and right configuration
7. IsatDock2 LITE Front Panel
LOCATION BUTTON ACTION
MODE
Out of Call:
Ringer Press
(1 second) Toggle through the available ring tones
Mute Press In a Call:
ON/OFF Mute the microphone (uplink) on the privacy handset
(optional accessory) if connected to cradle.
UP In a Call
Increase volume on the privacy handset (optional
accessory) if connected to cradle.
DOWN In a Call:
Decrease volume on the privacy handset (optional
accessory) if connected to cradle.
Brightness Out of Call:
dual button Enter LED brightness change mode. Press UP and DOWN
+
simultaneous arrows to vary intensity. Mode will automatically exit after
press 5 seconds after the last button press.
(1 second)
4. Plug the Privacy Handset RJ9
connector into the bottom of the
docking unit.
b c d e
+ + +
[d] RAM® base
Privacy Handset mode is enabled when the
handset is removed from the cup. Please
ensure to re-dock the Privacy Handset
when not in use.
3 Long Screws
M4 x 18 and
washers
LED/SOUND
Hear ring tone change.
LED turns RED - Muted
LED turns OFF - Not muted
Audio will sound louder in privacy handset with each press.
Audio will sound quieter in privacy handset with each press.
All LED's will change to WHITE and a double beep will sound
when entering brightness change mode.
A short single beep will sound when exiting change mode.
