KERN CCS 6K-6 Operating Manual

Counting balance/counting system
Hide thumbs Also See for CCS 6K-6:
Table of Contents

Advertisement

Quick Links

Operating manual
Counting balance/counting system

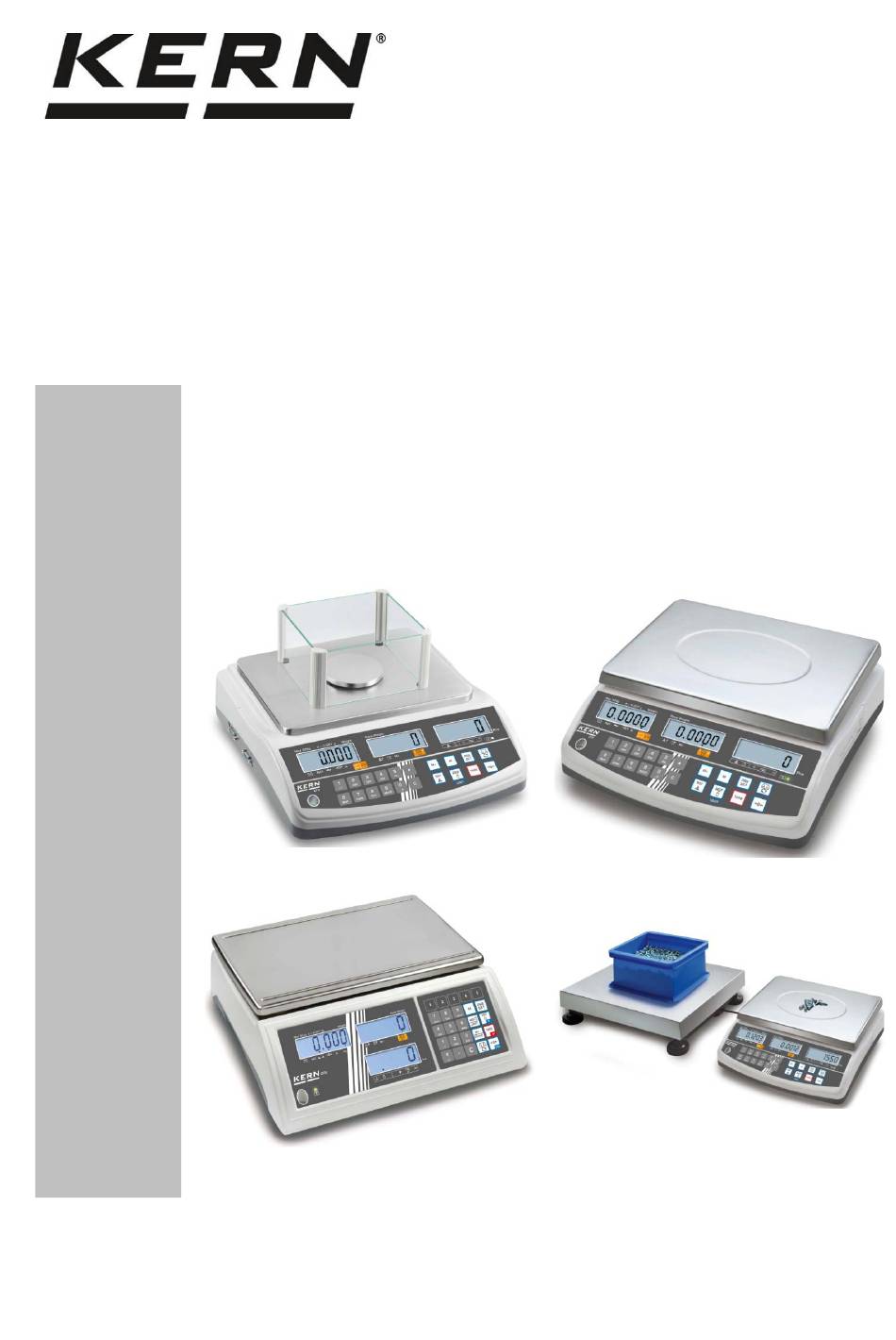

KERN CFS/CCS
Version 2.5
2018-03
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
CFS/CCS-BA-e-1825
