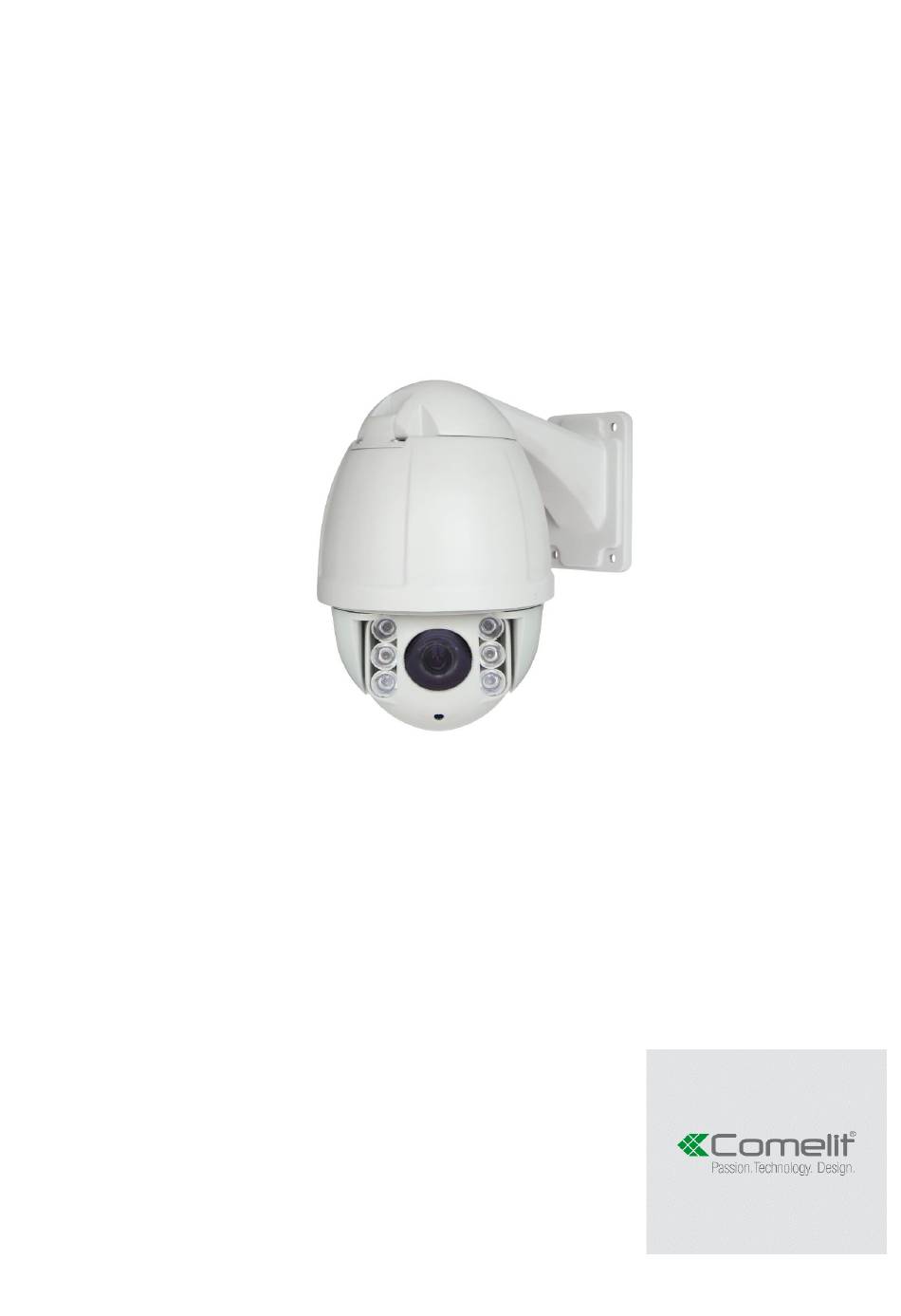

- Page 1 DOME IR PTZ 4 IN 1 ART. AHPTZ10IRC Please read this manual thoroughly before use and keep it for future reference...
- Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user the presence of non-insulated “dangerous voltage”...
- Page 3 PRECAUTIONS: 1. Persons without technical qualifications should not attempt to operate this dome device before reading this manual thoroughly. 2. Remove any power to the dome before attempting any operations or adjustments inside the dome cover to avoid potential damage to the mechanism. 3.
- Page 4 IMPORTANT SAFEGUARDS 1. Read these instructions before attempting installation or operation of dome device 2. Keep these instructions for future reference 3. Heed all warnings and adhere to electrical specifications, follow all instructions 4. Clean only with non-abrasive dry cotton cloth, lint free and approved acrylic cleaners 5.
-
Page 5: Table Of Contents
INDEX 1 Product Introduction ......................1 1.1 Package Contents ......................1 1.2 Specification ........................1 1.3 Function Description ...................... 2 2.1 Product Dimension......................5 2.2 Bracket Dimensions ....................... 5 2.2.1 Wall Mounted Bracket ................... 5 2.3 Installation ........................6 3. Function Instruction......................7 3.1 Power Up Action ...................... - Page 6 Copyright Statement ......................24 * Indicates the functions with default protocol, it might not function by using other protocols ※ Indicates the optional functions, only with certain models...
-
Page 7: Product Introduction
1 Product Introduction 1.1 Package Contents IR Speed dome Wall mount bracket Power supply Screws kits User manual 1.2 Specification Horizontal Rotation Speed 200°/sec. Tilt Rotation Speed 80°/sec. Horizontal Rotation Range 360° Tilt Rotation Range 93° Auto Flip Horizontal 180°, Vertical 93° Auto control IR LED A-B Scan User programmable... -
Page 8: Function Description
Communication RS485 Baud Rate 1200/2400/4800/9600bps 3D Location support Video output AHD/TVI/CVI/CVBS Operating Temperature Indoor: 0°~ +40° Outdoor: -40°~ +60° ≤95% Non Condensing Operating humidity Heater & Blower Auto temperature control 12 VDC ≤3A Power Lightning protection transient voltage 6000V IR Illumination Distance ≤... - Page 9 can use manual focus to in special condition. Under the following conditions camera will not auto focus on the camera target: (1) Target is not the center of the screen; (2) Attempting to view images that are far and near at the same time; (3) Target is strongly lighted object, such as neon lamp, etc.
- Page 10 Dome circularly scan close-up real-time scene according to A-B points at setting speed in both horizontal and vertical directions. Pan Scan Dome 360°clockwise continuous scan the display scene at setting speed in horizontal direction under the condition that pitch angle remains the same. ...
-
Page 11: Product Dimension
2.1 Product Dimension 2.2 Bracket Dimensions 2.2.1 Wall/Ceiling Mount Bracket... -
Page 12: Installation
2.3 Installation 2.4 Connection Connection of RS485 Before connecting, please turn off the power and read carefully the instructions of all connected devices. Fig 24... -
Page 13: Function Instruction
3. Function Instruction 3.1 Power Up Action <SYSTEM> <SYSTEM> PROTOCOL ATUO PROTCOL ATUO DOME ID DOME ID COMM COMM VERSION VERSION DETECTING PAN: XXX TILT: XXX Power Up Self Testing Pan, Tilt, Camera Self-test Completion Pan action: Pan rotate in certain direction and stop in zero coordinate. ... -
Page 14: Special Function
Remark: Some preset points are used tentatively for special functions. 3.3 Special Function The follow presets are predefined as special function, please shot+ preset No+ enter to enable those functions: PRESET FUNCTION PRESET FUNCTION Pan scan180 º BLC off Reset Freeze on Digital zoom on Freeze off... -
Page 15: Osd Menu
2. “→”means the cursor selecting some option. 3. “ ※ ” means editing the content of some option selected. 4. When entering the setting page in menu, it is useless to call preset 94 to exit the menu directly. Such as the submenu <SET> in menu <GUARD TOUR SET>. 4 OSD Menu 4.1 Menu Index... -
Page 16: System Information
<MAIN MENU> <SYSTEM> <DOME> <CAMERA> <LANGUAGE> <DISPLAY> Fig 4.1.1 Get into the Menu Screen <RESET> EXIT Fig 4.1.1 Get into the Menu Screen 4.2 System Information <SYSTEM> PROTOCOL AUTO DOME ID COMM 2400.N.1 VERSION EXIT Fig 4.2.1 MFG: max 15 characters display on the screen. PROTOCOL: display the protocol of the dome DOME ID: display the dome address. -
Page 17: Dome
4.3 Dome <DOME> <COMM> <IR DISPLAY> <GUARD TOURS> <A-B SCAN> <PAN SCAN> <PARK ACTION> <PRIVACY ZONE> <ADVANCED> EXIT Fig 4.3.1 4.3.1 Communication <COMM> DEVICE ID CHECK ID 0000 TARGET ID SOFT PROTOCOL AUTO BAUD RATE 2400BPS <COMM RESET> SAVE EXIT Fig 4.3.1.1 DEVICE ID It is only and used to distinct from the ID of other domes. -
Page 18: Ir Display
CHECK ID Distinguishing several domes with same ID and altering target ID, soft protocol and baud rate need to enter check ID in line with the device ID, otherwise altering can’t be completed. TARGET ID Target ID is available from 001 to 250. SOFT PROTOCOL Soft protocol is auto, Pelco-D and Pelco-P available BAUD RATE... -
Page 19: Guard Tours
OUTPUT POWER IR output consumption has 40% 、 60% 、 80% 、 100% selectable. STANDBY POWER IR stand by power has 20% 、 40% 、 60% 、 80% selectable. IR standby power is much less than IR output power. STANDBY TIME IR standby time is 15-30s selectable. -
Page 20: A-B Scan
GUARD TOUR Total 3 guard tours selectable: 01, 02, 03. SETTING Each guard tour includes max 16 presets. The number of the preset is from 0-64. 0 is not valid, dwell time is 1 to 60s selectable. Speed is 1 to 64 grade selectable. INIT After init., preset point, dwell time, speed will resume to default setting. -
Page 21: Pan Scan
DELETE After deleted, the preset points display as 0. While the exact preset point information doesn’t be deleted. So it is convenient for user to select the preset point needing to be scanned. Speed and dwell time will reset as default setting. 4.3.5 Pan Scan <PAN SCAN>... -
Page 22: Privacy Zone
When park mode is OFF status, the dome doesn’t run park mode. When park mode is PRESERVE ACTION status, it record previous action order(A-B scan, Pan scan, Guard tour 01, Guard tour 02, Guard tour 03). Example: Running A-B scan at first, when the action stops unexpectedly, it enters the park mode to continue to run A-B scan. - Page 23 Remark : The mask size is better more than double the target size. If needing to modify mask NO.02, set it again. If needing to stop it, set mask to OFF status. If the module doesn’t support privacy mask, the screen will display the interface as Fig. 4.3.7.3.
-
Page 24: Camera
4.4 Camera <CAMERA> AUTO ZOOM SPEED QUICK DIGITAL ZOOM FOCUS AUTO IRIS AUTO FREEZE EXIT Fig. 4.4.1 Display the information of module supported by this dome. ZOOM SPEED Zoom speed is quick and slow selectable. DIGITAL ZOOM Digital zoom is on/off selectable. FOCUS Focus is auto and manual selectable IRIS... -
Page 25: Language
4.5 Language <LANGUAGE> LANGUAGE ENGLISH EXIT Fig. 4.5.1 LANGUAGE Language can be set English. Default settings are English. 4.6 Display <DISPLAY> SYSTEM P AND T ACTION DOME ID COMM EXIT Fig. 4.6.1 SYSTEM Video system includes NTSC and PAL. N means NTSC and P means PAL. P AND T On screen, it displays the pan and tilt degree, user can enable or disable it. -
Page 26: Reset
DOME ID At the top left corner of screen, it displays the dome ID. User can enable or disable it. COMM At the top left corner of screen, it displays the dome communication information. User can enable or disable it. 4.7 Reset <RESET>... -
Page 27: Auto Temperature Control
CONFIRM: Delete the presets information saved by the dome. 5. Auto Temperature Control This product has built-in fan and heater, which accordingly cool or heat through temperature sensitive circuit inside the dome. Appendix I Anti-lightning, Anti-surge This product is extremely air discharge and lightning protection with TVS tube technology, which can effectively prevent the transient lightning below voltage 3000V, surge and damages caused by other types of pulse signals. -
Page 28: Appendix Ii Clean Transparent Cover
Appendix II Clean Transparent Cover In order to assure a clear image of dome, the under cover of dome should be cleaned regularly. ● Be careful when cleaning and hold the outer ring of under cover by hands to avoid directly touching with it. -
Page 29: Appendix Iv Exception Handling
Appendix IV Exception Handling Issue Possible Reason Solution Cable harness is Verify that the orientation of the After power is applied, improperly connected connector input there is no motion Input power voltage is too Verify the voltage of the input (self-test) and no video power image. - Page 30 Copyright Statement This copyright merely belongs to the manufacturer. Without permission, please don’t plagiarize or copy the contents of this book in any form or by any means. The company follows the policy of continuous development. Therefore, the company reserves the right to modify or improve the products described in this manual without notice.
