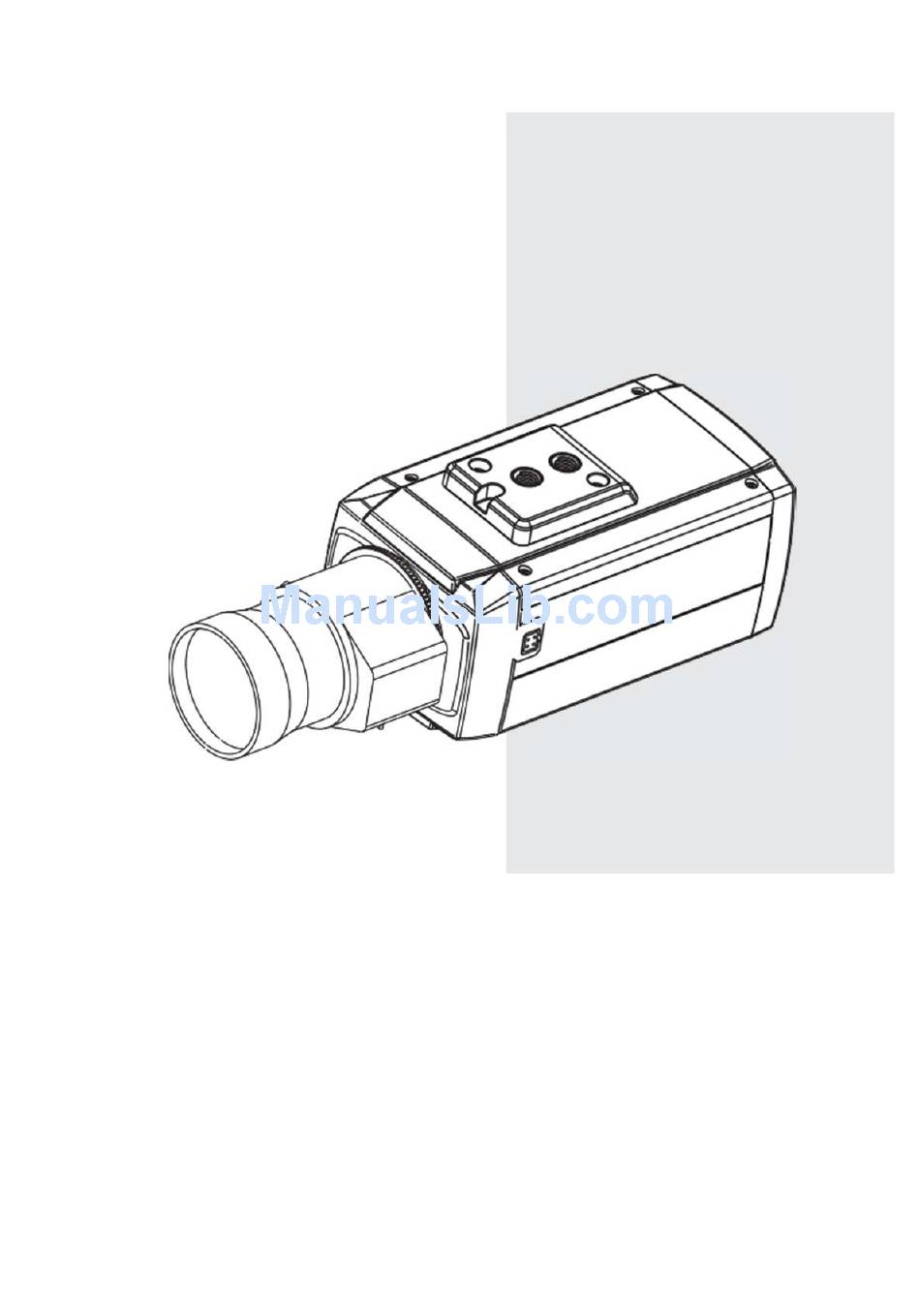

- Page 1 INSTRUCTION MANUAL Full HD Day&Night Box Camera Art. AHCAM742A 2.2Mega High Resolution Please read this manual thoroughly before use, and keep it handy for future reference. Design and specifications are subject to change without notice.
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions.\ 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
CONTENTS • INTRODUCTION • CAMERA OVERVIEW • CONTENTS OF PACKAGE • STRUCTURE OF THE SETUP MENU • LENS • SPECIFICATIONS... -
Page 5: Introduction
INTRODUCTION The 1/2.9” 2.2M Full HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. Features: • High performance SONY 1/2.9” 2.2M EXMOR CMOS • 1.0 lux(Color), 0.1 lux(BW) • Auto electronic shutter [1/60(1/50) ~ 1/50,000] and manual electronic shutter modes •... -
Page 6: Camera Overview
CAMERA OVERVIEW 2x1/4-20UNC Bottom View 45.3(1.781 ) 4.0(0.55) 6.9(0.27) 56.0(2.2) Front View Side View 1-32UNEF Unit: mm(Inch) 66.0(2.59) Left Button (Long Key : AHD) Up Button Enter Button Right Button (Long Key : TVI) Down Button Power Indicator Video Out Connector(BNC) AC24V/DC12V Input Terminal Video out Mode switch (HD / CVBS) CONTENTS OF PACKAGE... -
Page 7: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <SETUP> LENS EXPOSURE BACKLIGHT WHITE BAL <LENS> <EXPOSURE> DAY&NIGHT IMAGE SHUTTER FUNCTION MANUAL SYSTEM SENS-UP BRIGHTNESS EXIT D-WDR DEFOG RETURN <BACKLIGHT> <WHITE BAL> <DAY&NIGHT> AUTO AWC->SET COLOR INDOOR HSBLC B&W OUTDOOR MANUAL <FUNCTION> <SYSTEM> <RESET> <IMAGE>... - Page 8 LENS The EXPOSURE menu is used to set the automatic light control method for the camera. It provides the ability to adjust the SHUTTER speed. AGC SENS-UP, BRIGHTNESS, D-WDR, and DEFOG functions of the camera. Select the DC mode. ▶INDOOR, OUTDOOR 1) DC Select the DC iris speed ▶...
- Page 9 BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. 1) BLC Prevents such a back light effect to secure a clear image under All illumination environments. Adjust the size of Back Light Compensation area. Select the BLC gain ▶...
-
Page 10: White Balance
WHITE BALANCE The screen color can be adjusted by using the Auto White Balance function. It compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. 1)ATW Automatically adjust color temperature. - Page 11 DAY&NIGHT The DAY&NIGHT menu is used to configure the day and night related . setting for the camera. 1) D&N AUTO -Input Method DAY&NIGHT mode are changed according to the sensor inputs D&N LEVEL Adjust levels of transition ▶ N&D LEVEL Adjust levels of transition ▶...
- Page 12 The IMAGE menu provides the ability to adjust the SHARPNESS, LSC and D-EFFECT functions of the camera. 1) SHARPNESS Adjust the SHARPNESS level. ▶ OFF, AUTO (0 - 10) Select the lens Lens Shading Compensation. ▶ ON, OFF 2) LSC Select real or still mode ▶...
- Page 13 FUNCTION The IMAGE menu provides the ability to adjust the DNR, MOTION, PRIVACY and DEFECT DET functions of the camera. Select Digital Noise Reduction. 1) DNR ▶ OFF, LOW, MIDDLE, HIGH ▶ OFF, LOW, MIDDLE, HIGH Detects the Motioned Object in the image. ▶ ON, OFF 2) MOTION Select the Motion area ▶...
- Page 14 <DNR> FUNCTION MIDDLE MIDDLE MOTION RETURN PRIVACY DEFECT DET RETURN <MOTION> FUNCTION MOTION SELECT AREA1 MOTION DISPLAY PRIVACY SENSITIVITY |▪I▪▪▪| 10 DEFECT DET COLOR WHITE RETURN TRANS ALARM DEFAULT RETURN <PRIVACY> PRIVACY FUNCTION SELECT AREA1 DISPLAY COLOR MOTION COLOR WHITE PRIVACY TRANS DEFECT DET...
- Page 15 SYSTEM The IMAGE menu provides the ability to adjust the CAM TITLE, RS485, MONITOR, CVBS CROP, VIDEO OUT, LANGUAGE and VERSION functions of the camera. 1) CAM TITLE Maximum of 15 characters are allowed. Select the Monitor type ▶ LCD, CRT 2) MONITOR Adjust the Blue gain level ▶...
-
Page 16: Lens
<MONITER> SYSTEM CAM TITLE GAMMA USER MONITOR RED GAIN |▪▪|▪▪| 69 VIDEO OUT NTSC BLUE GAIN |▪▪|▪▪| 60 ENGLISH RETURN COMET RETURN EXIT The EXIT menu provides the ability to adjust the RESET, SAVE & END and NOT SAVE functions of the camera. -
Page 17: Specifications
SPECIFICATIONS MODEL 2M HD-Hybrid BOX CAMERA Power Source AC24V / DC12V ± 10% Power Power Consumption MAX 3.0 Watts (250mA) Image sensor 1/2.9" 2.2M Sony CMOS Total Pixels 2000(H) x 1121(V) Active Pixels 1920(H) x 1080(V) Scanning system Progressive Sync. System Internal General Video Frame Rate... - Page 20 50304160A...
