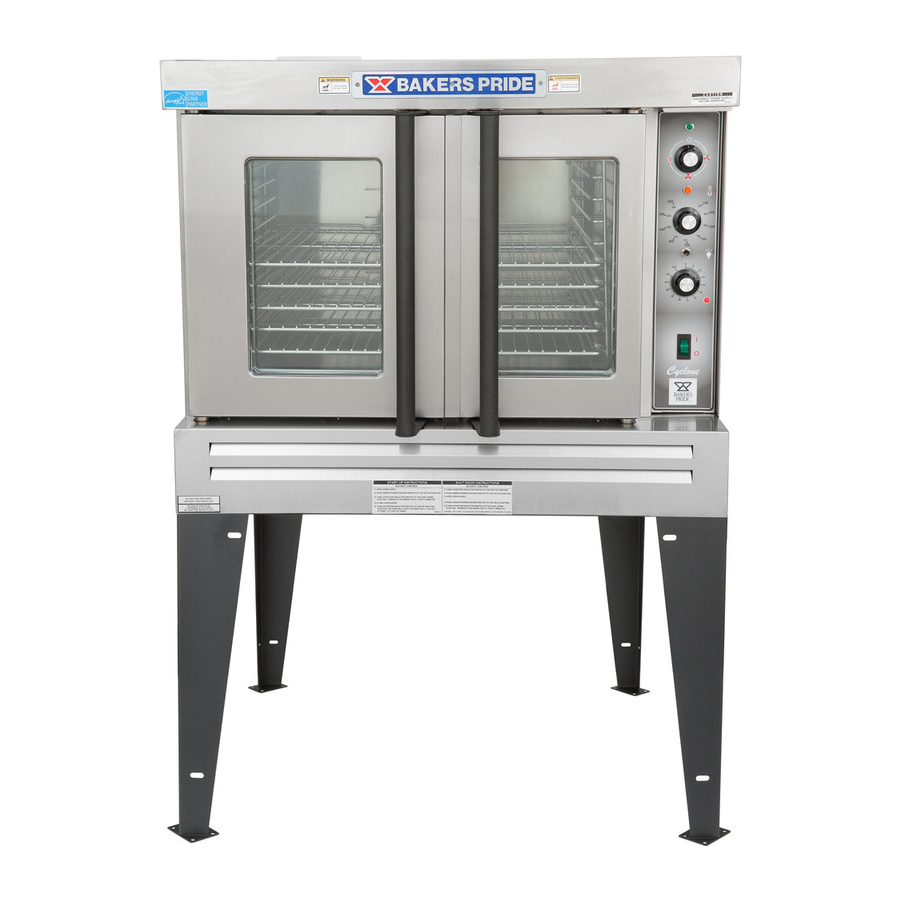

Bakers Pride BCO-G Installation And Operating Instructions Manual

Cyclone series gas convection ovens
Hide thumbs Also See for BCO-G:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
INSTALLATION AND OPERATING INSTRUCTIONS
GAS CONVECTION OVENS
INTENDED FOR OTHER THAN HOUSEHOLD USE. RETAIN THIS MANUAL FOR FUTURE
REFERENCE. OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES.
IMPORTANT INSTRUCTIONS:
check piping for possible leaks. To do this, use soap and water solution or solutions that are expressly made for this
purpose. DO NOT USE matches, candles, flames, or other sources of ignition since these methods are extremely
dangerous. Instructions to be followed in the event you smell gas should be posted in a prominent location. Obtain
these instructions from your local gas supplier.
!
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Improper installation, adjustment, alteration, service or maintenance
!
can cause property damage, injury or death. Read the Installation,
Operating and Maintenance Instructions thoroughly before installing or
servicing this equipment.
Initial heating of oven may generate smoke or fumes and must be done in
!
a well-ventilated area. Overexposure to smoke or fumes may cause
nausea or dizziness.
This equipment has been engineered to provide you with year round dependable service when used
according to the instructions in thismanual and standard commercial kitchen practices.
+1 (800) 431-2745 US & Canada
+1 (914) 576-0200 Phone
+1 (914) 576-0605 Fax
Cyclone
Models: BCO-G and GDCO-G
After the gas supply has been connected to your unit, it is extremely important to

FOR YOUR SAFETY

WARNING
WARNING
BAKERS PRIDE OVEN CO., INC.
30 Pine Street
New Rochelle, NY 10801
1
SERIES
sales@bakerspride.com E-Mail
www.bakerspride.com WebAddress
!
!
!
Form # 8898500 4/05

Advertisement

Table of Contents
loading

Related Manuals for Bakers Pride BCO-G

Summary of Contents for Bakers Pride BCO-G

  • Page 1: For Your Safety

    INSTALLATION AND OPERATING INSTRUCTIONS Cyclone SERIES GAS CONVECTION OVENS Models: BCO-G and GDCO-G INTENDED FOR OTHER THAN HOUSEHOLD USE. RETAIN THIS MANUAL FOR FUTURE REFERENCE. OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES. IMPORTANT INSTRUCTIONS: After the gas supply has been connected to your unit, it is extremely important to check piping for possible leaks.

  • Page 2: Table Of Contents

    Table of Contents I. INSTALLATION INSTRUCTIONS SECTION ITEM PAGE Receiving Set Up / Mounting Installation with Casters (Optional) Location and Minimum Clearances Gas Connections Electrical Connection Flue Connection Ventilation Burner Operation System Check Rotary Control Programming Menus II. OPERATING INSTRUCTIONS General Instructions Operation Sequence Rotary Control Cook only rotary control...

  • Page 3: B Set Up / Mounting

    Your oven will be packed sitting on its bottom. The skid may be left under the oven for convenience in further handling. Unpack carefully, avoiding damage to the Stainless Steel front and/or trim. If concealed damage is found, follow the instructions detailed in Section A (Receiving). Keep the area around the ovens free and clear of combustible materials.

  • Page 4: C Installation With Casters (Optional)

    Fit the Standard Flue Diverter supplied into the hole in the top of the oven for under ventilation hood installation and secure with screws. For direct venting, FlueAdapter and Draft Hood must be placed into the hole on top of the oven. C.

  • Page 5: F Electrical Connection

    The gas pressure regulator is part of the combination valve and is adjusted to yield a pressure of 3.5” water column (9 mbar) for Natural Gas. If the oven is ordered for use on Propane Gas or Butane, the pressure regulator in the combination valve is preset at the factory to yield a pressure of 10” water column (25 mbar).

  • Page 6: H Burner Operation

    Optional direct venting (not available for European community countries): If direct venting, a flue adapter and a draft hood are required to be installed. They prevent the flue gases leaving the oven to be affected by the air pressure changes on the outside of the flue stack extending out of the building.

  • Page 7: Ii. Operating Instructions

    II. OPERATING INSTRUCTIONS A. GENERAL INSTRUCTIONS: (1) This equipment has an Electronic Temperature Control and Electronic Hot Surface Direct Ignition System. (2) Due to increased efficiency of this oven, the temperature of standard recipes may be reduced 50°F (30°C). (3) Always load each shelf evenly. Space pans away from each other and from sides and back of oven to allow maximum air flow between them.

  • Page 8: Optional Steam Injection Rotary Control

    Optional steam injection: Rotary control: The solenoid valve for steam injection is mounted behind the service panel on the right-hand side of the unit. The electronic timer is preset at the factory. A ¼” copper tubing is provided on the Solenoid Valve for water hookup with a compression fitting.After the water hookup ismade, make sure that there are no leaks.

  • Page 9: Stacking Instructions

    Figure 3 STACKING INSTRUCTIONS FOR: BCO-G & GDCO-G CONVECTION OVENS Attach part # 21818062 with 6 each 8-32 stainless screws Material: 14 ga 201 Stainless Remove the outer and inner flue from the bottom oven before placing the top oven (to prevent damaging the bottom oven’s flue).

  • Page 10: Leg Assembly Instructions

    LEG ASSEMBLY INSTRUCTIONS-MODEL: BCO-G & GDCO-G Figure 4 WITH PLATE CASTER Description Item 21818092 Leg, 25" SS Weldment Assy 8633102 Caster, 5” Swivel W/Top Plate 8227700 Hex Hd 5/16-18 X ¾ Bolt #5 Zn 8509300 Washer, Flat SAE, 5/16 8435000 Hex-nut 5/16-18 82447-00 Hex Hd.

  • Page 11: Wiring Diagrams

    SINGLE-PHASE 120V WIRING DIAGRAM (PUSH-BUTTON CONTROL) HIGH GREEN LIGHT BLACK WHITE 120V BUTTSPLICE TRANSFORMER GROUND 4 POSTION YELLOW SWITCH CENTRIFUGAL SWITCH BLUE GROUND STUD RELAY LIGHTS GROUND STUD PROBE MOTOR IGNITOR DOOR SWITCH L1-24VAC THERMOSTAT PROBE VALVE HOT CH104 GROUND CONTROL FLAMESENSE T2 T3 T4 T5...
  • Page 12 HIGH POWER LIGHT 4 POS BLACK WHITE SWITCH 120V BUTT SPLICE P1 P2 P3 P4 TRANSFORMER GROUND CENTRIFUGAL SWITCH YELLOW T-STAT LIGHT BLUE MOTOR PROBE T-STAT IGNITOR GROUND STUD L1-24VAC THERMOSTAT T8 T9 T10 T11 VALVE HOT GROUND FLAME SENSE LIGHT SWITCH GROUNDSTUD...

  • Page 13: Parts List & Exploded View

    BCO-G & GDCO-G 30 Pine Street • New Rochelle • New York • 10801 914 / 576 - 0200 914 / 576 - 0605 BAKERS 1 - 800 - 431 - 2745 US & Canada PRIDE Full Size Gas Convection Oven www.bakerspride.com...

  • Page 16: Warranty

    BAKERS PRIDE Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturers part. BAKERS PRIDE shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. The repair or replacement of proven defective parts shall constitute a fulfillment of all obligations under the terms of this warranty.
