Overall result for the test:
1
PASS: All measurements are within limits.
FAIL: One or more measurements exceed the limit.
B
The limit, fiber type, wavelengths, and fiber end number (1 or 2) used
for the test. See Table 2 on page 9.
C
Measurements taken and each measurement's status:
E
: The measured value is within the limit.
i
: The measurement has no PASS/FAIL limit in the selected test limit and
is provided for informational purposes.
F
: The measurement exceeds the limit.
D
Shows the OTDR trace.
E
Shows the Event Table.
F
F
Shows the limits used for the test.
amd153f.eps

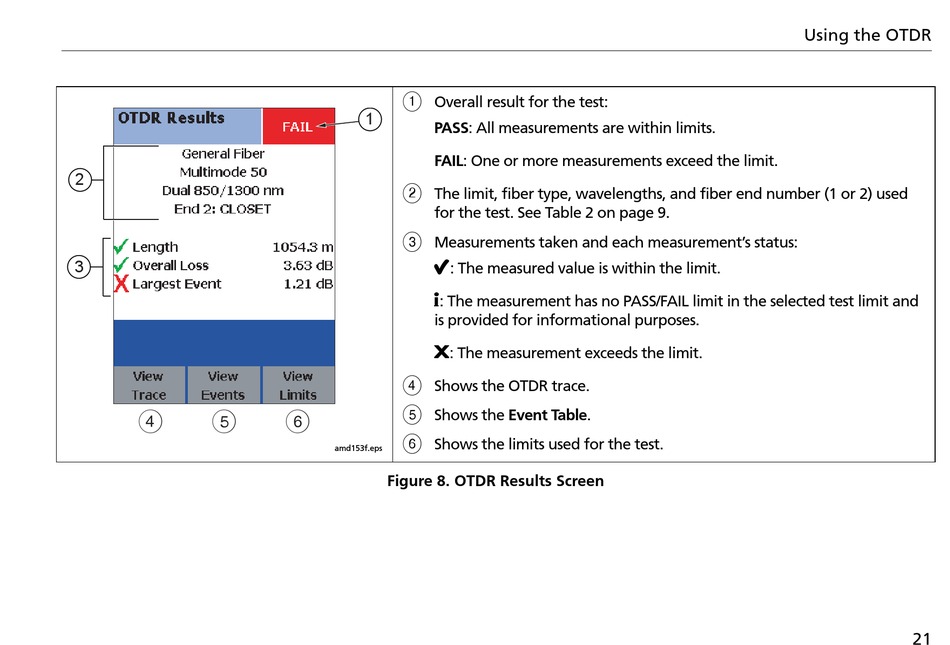

Figure 8. OTDR Results Screen
