Fluke 177 Series - LTE Module Manual

Introduction

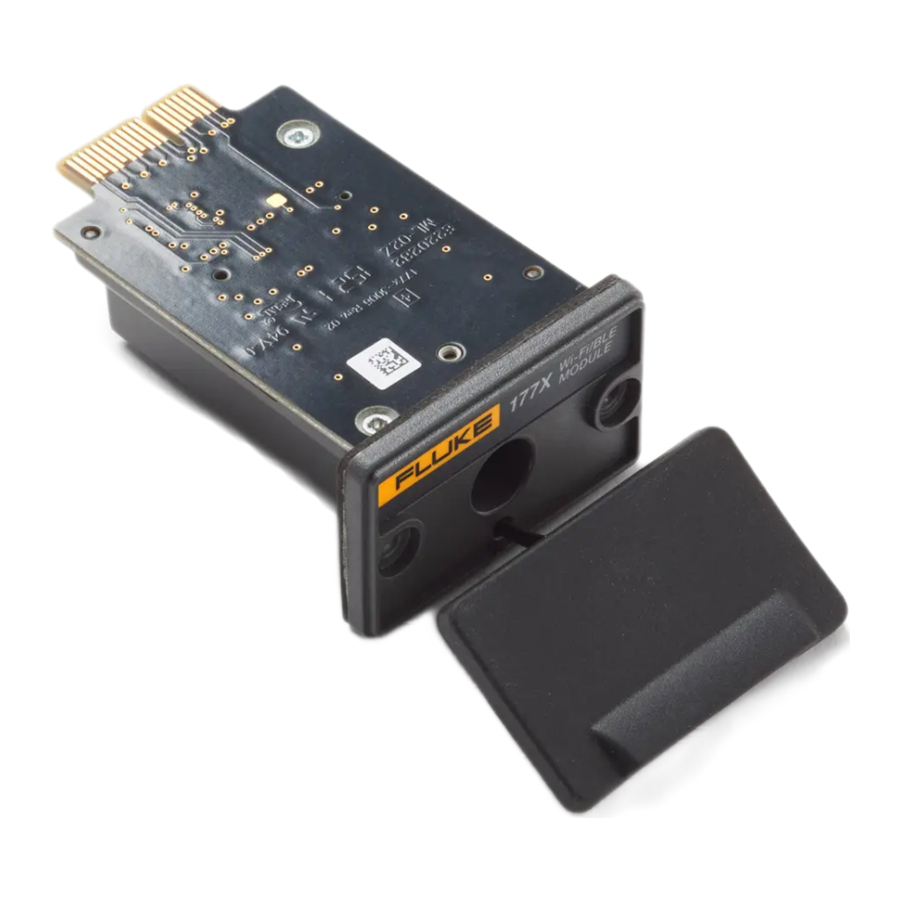

The 177X LTE module provides global LTE (4G) communications and allows connections to Fluke 177X products located remotely. The module requires a SIM card and contract with a service provider that has coverage where the instrument and module are located.
With this module you can wirelessly communicate from a computer to the instrument. Communication can be through a VNC (Virtual Network Connection) or through the Fluke Energy Analyze Plus application package. With this remote connection you do not have to frequently visit the site location to observe how a site survey is progressing. All the measured and logged data is available through the remote connection.

Symbols

The table below lists the symbols that can be used on the Product or in this document.

Symbol Description
Consult user documentation.
warning WARNING. RISK OF DANGER.
shock hazard WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Do not dispose of this product as unsorted municipal waste.

Module Installation

Module Installation

Antenna Attachment

External Antenna with Cable


To prevent possible electrical shock, fire, or personal injury, use Product approved measurement category (CAT) antenna cables when the Product is installed in environment where wires or exposed metal parts provide access to hazardous live voltage, such as, in cabinets.
Antenna Attachment - Method 1
Note
The external antenna is not sold by Fluke. The antenna cable connects to the antenna with a SMA connector that has an outside thread and a center receptacle (SMA female/jack). Former FCC regulations required that WiFi equipment must use reverse polarity connectors. You must use an SMA male plug to RP-SMA female adapter if the antenna uses a RP-SMA male connector with an internal thread and center receptacle.

177x Antenna

Antenna Attachment - Method 2 - 177x Antenna

Specifications

Size: 72.3 mm x 45.6 mm x 28.5 mm
Weight: 35 g
Storage Temperature: -20 °C to 60 °C
Note
Complete specifications are at www.fluke.com. See the 1773/1775/1777 Product Specifications.
Safety: IEC 61010-1: Pollution Degree 2
4G/LTE Specification
LTE category: LTE Cat 4 (max. 150 Mbit/s downlink, 50 Mbit/s uplink)
Frequency bands: LTE-FDD: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 18, 19, 20, 25, 26, 28, 66, 71
LTE-TDD: 38, 39, 40, 41
WCSDMA: 1, 2, 4, 5, 6, 8, 19 (617 MHz to 2690 MHz)
SIM card slot: Mini-SIM (2FF)

Safety Information

A Warning identifies hazardous conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test.

To prevent possible electrical shock, fire, or personal injury:

  • Read all safety information before you use the Product.
  • Do not alter the Product and use only as specified, or the protection supplied by the Product can be compromised.
  • Carefully read all instructions.
  • Do not use the Product if it operates incorrectly.
  • Do not work alone.
  • Use only specified replacement parts.
  • Have an approved technician repair the Product.
  • Disable the Product if it is damaged.
  • Do not exceed the Measurement Category (CAT) rating of the lowest-rated individual component of a Product, probe, or accessory.

Contact Fluke

Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com.
To register your product, or to view, print, or download the latest manual or manual supplement, go to our website.
+1-425-446-5500
