OTDR Module Features
W
Warning*
Never look directly into optical output
connectors (A and B). Some sources produce
invisible radiation that can permanently
damage your eyes.
A
OTDR ports for singlemode (left) and multimode (right) fiber.
The ports have removable SC connector adapters with
protective caps.
B
Visual fault locator (VFL) output with universal fiber connector
and protective cap. The connector accepts 2.5 mm ferrules.
C
Laser safety label (shown below):
amd155f.eps

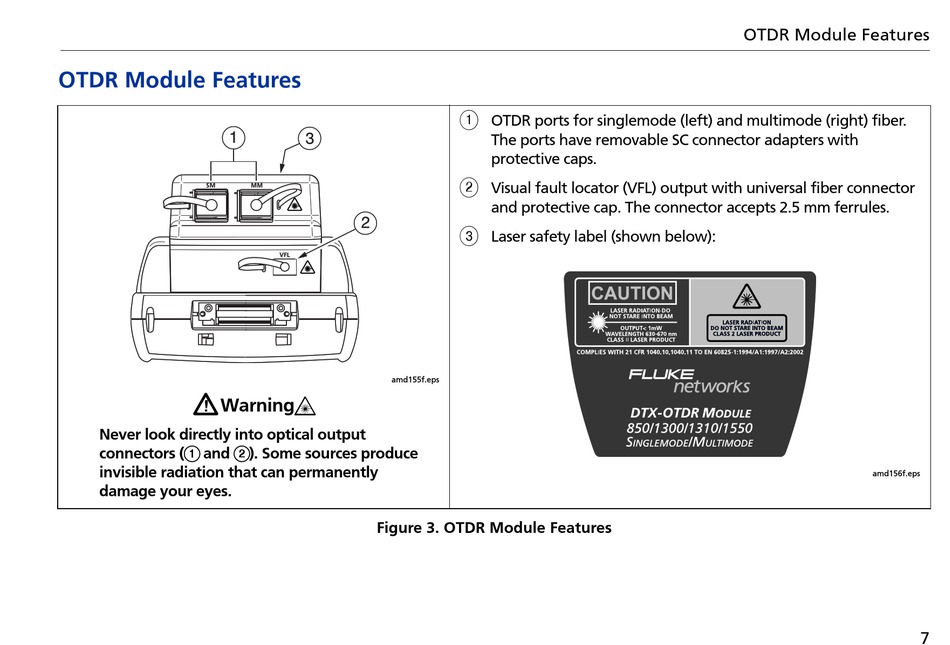

Figure 3. OTDR Module Features
OTDR Module Features
amd156f.eps
7
