Using the OTDR

F1 F2 F3
EXIT TEST
ENTER
SAVE
AUTO
TEST
SINGLE SETUP
TEST
SPECIAL
MONITOR FUNCTIONS
TALK
A
Tester with OTDR module
B
Memory card (optional)
C
AC adapter with line cord (optional)
D
Launch fiber and receive fibers (optional). Match the fiber
to be tested. Match cable connectors at one end when
possible.
E
Fiber cleaning supplies (optional)

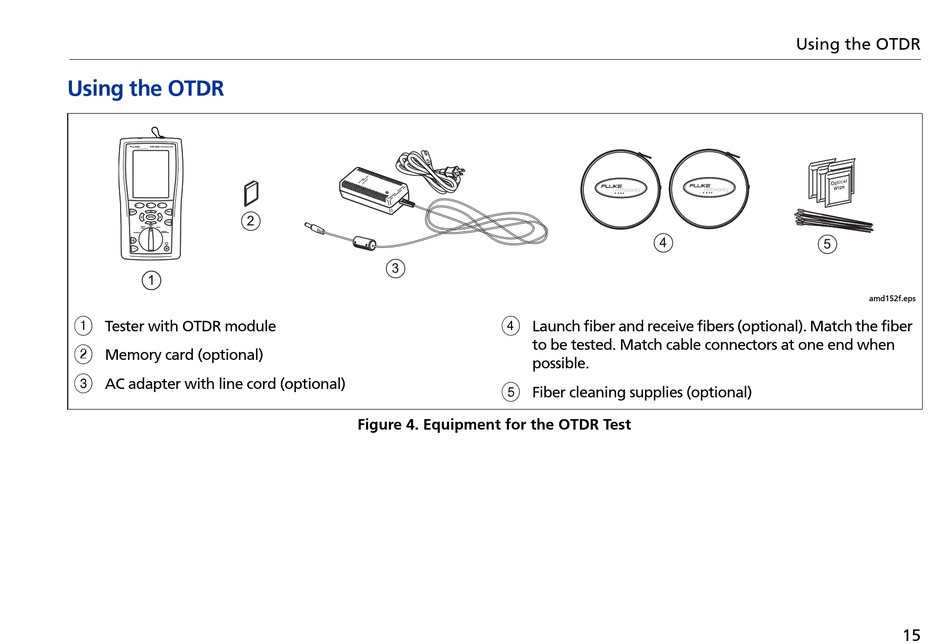

Figure 4. Equipment for the OTDR Test
Using the OTDR
amd152f.eps
15
