ST310U

User Manual

Suntech International Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST310U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SunTech ST310U

Summary of Contents for SunTech ST310U

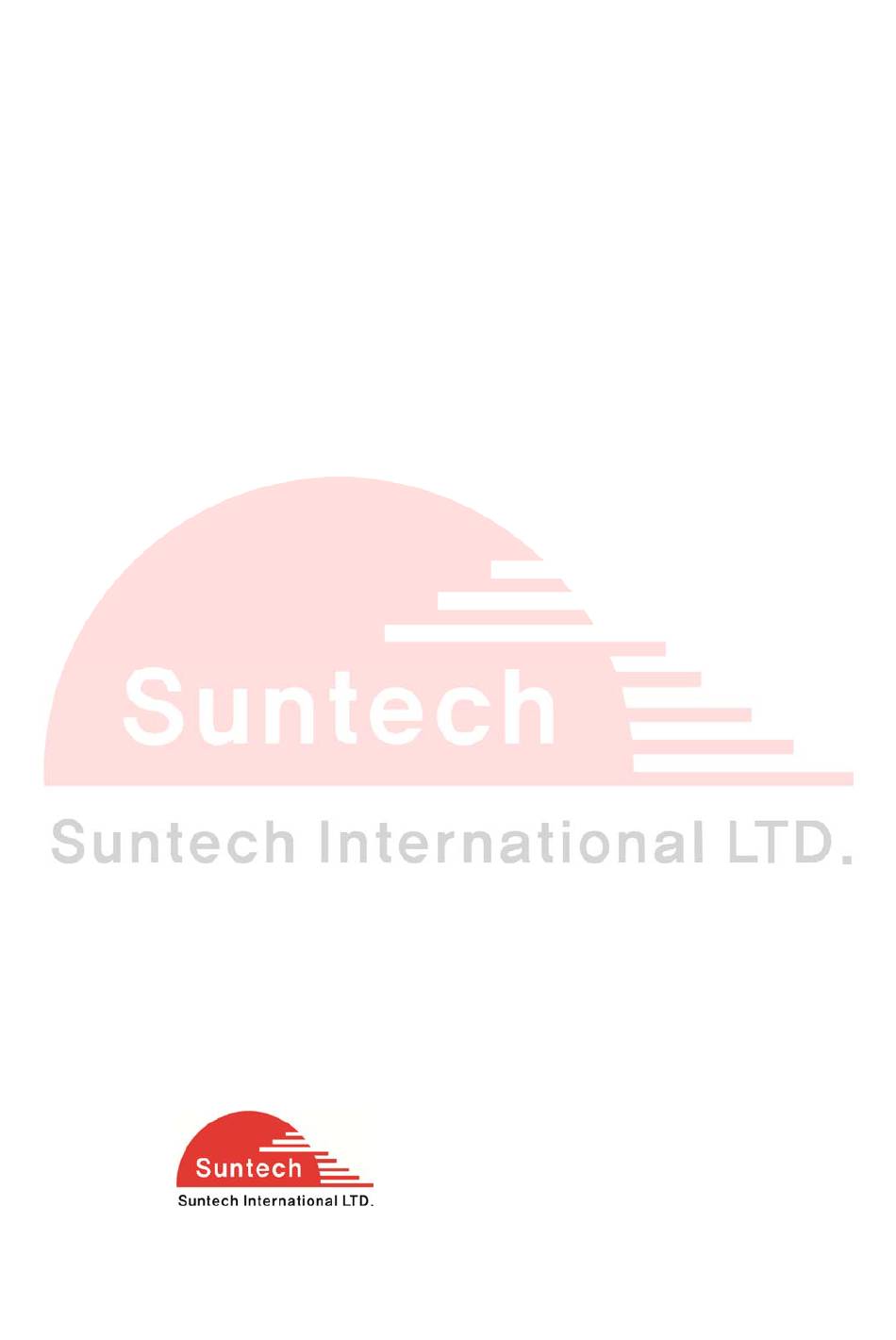

  • Page 1: User Manual

    ST310U User Manual Suntech International Ltd.
  • Page 2 ST310U User Manual 1. Introduction This document describes features, protocols and detail operation of ST2xx series. If there is another operation description document for special buyer to customize or model and the contents of the document is different with this, customizing document should be applied for special buyer.
  • Page 3 ST310U User Manual Emergency is the first to be sent after recovering GPRS condition. 2-3. Setting Parameter Parameters of device can be changed by GPRS or SMS, and some control can be realized also in the same way. Detail protocols are described in Chapter 4.
  • Page 4 ST310U User Manual It’s applicable only for models that have external antenna. - Main Power Checking The device can recognize the main power and inform to server when main power line is disconnected or main power drops below preset value.
  • Page 5 ST310U User Manual DEV_ID 6 char. Device ID of AVL “001” Software version that the device has. Field 1 ~ n String Contents 4. Commands When the device is received a command, it responds with response string and changes some parameters or acts related operation.
  • Page 6 ST310U User Manual For no use, it should be empty. PIN_NO String PIN Number to release PIN lock if it is enabled <example> [command] SA200NTW;850000;02;0;internet;;;111.111.111.111;8600;;;; [response] SA200NTW;Res;850000;010;0;internet;;; 111.111.111.111;8600;;;; SA200NTW;Res;850000;010;A1;tim.br;tim;tim; 111.111.111.111;8600;;;; <notes> ** If network does not require User ID and Password, these fields should be empty.
  • Page 7 ST310U User Manual If 0, report in driving will be sent only one time when vehicle starts driving. String Interval for sending status report in emergency mode Range : 0 ~ 9999 If 0, emergency report will be sent only one time when emergency state occurs.
  • Page 8 ST310U User Manual DEV_ID IGNITION IN1_TYPE IN2_TYPE IN3_TYPE IN1_CHAT IN2_CHAT IN3_CHAT OUT1_TYPE OUT2_TYPE OUT1_ACTIVE OUT2_ACTIVE PULSE1_NO PULSE1_ON PULSE1_OFF PULSE2_NO PULSE2_ON PULSE2_OFF IN4_TYPE IN5_TYPE IN4_CHAT IN5_CHAT BAUD ● Definition : Set parameter related event. Field Definitions Unit Remark “SA200EVT” Command type DEV_ID 6 char.
  • Page 9 ST310U User Manual OUT1_TYPE ‘0’ ~ ‘5’ 0 = GPIO 1 = immobilizer 2 = Immobilizer & Auto active Auto active means immobilizer activated automatically when the vehicle starts parking. 3 = Pulse 4 = LED Out for indicating call status. Refer 7-2-3.
  • Page 10 ST310U User Manual <example> [command] SA200EVT;850000;02;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 [response] SA200EVT;Res;850000;010;1;60;0;3;2;2;30;20;20;1;0;1;0;0;0;0;0;0;0;0;0;0;0;0 <notes> ** If IGNITION is set to ‘0’, device doesn’t check driving or parking state of the vehicle. It reports status string with idle mode always, and cannot support parking lock and the service that enters sleep or deep sleep automatically when the vehicle is parked.
  • Page 11 ST310U User Manual IN1_TYPE ‘0’ ~ ‘5’ 0 = Falling Edge 1 = Rising Edge 2 = Both Edge (Falling & Rising) 3 = Panic Button 4 = Call1 Button 5 = Call 2 Button 6 = Reserved 7 = Anti-Theft Button 13 = Disable Immobilizer if it’s activated by jammer...
  • Page 12 ST310U User Manual SMS_MT4 IN_CALL_LOCK CALL_MT1 CALL_MT2 CALL_MT3 CALL_MT4 CALL_MT5 CALL_MO1 CALL_MO2 ● Definition : Set parameters related SMS or Call. Field Definitions Unit Remark “SA200GSM” Command type DEV_ID 6 char. Device ID “02” Protocol Version SMS_LOCK ‘0’ or ‘1’...
  • Page 13 ST310U User Manual DEV_ID PARKING_LOCK SPEED_LIMIT PWR_DN CON_TYPE GROUP_SEND MP_CHK ANT_CHK BAT_CHK M_SENSOR CALL GEO_FENCE DATA_LOG ANTITHFT_CNT1 ANTITHFT_CNT2 JAM_DET JAM_CHK_DIST JAM_CHK_TM ● Definition : Set parameters related report. Field Definitions Unit Remark “SA200SVC” Command type DEV_ID 6 char. Device ID “02”...
  • Page 14 ST310U User Manual MP_CHK ‘0’ or ‘1’ Main Power Disconnection Check Disable (0) / Enable (1) ANT_CHK ‘0’ or ‘1’ GPS Antenna Connection Error Check Disable (0) / Enable (1) BAT_CHK ‘0’ or ‘1’ Backup Battery Error Check Disable (0) / Enable (1) M_SENSOR ‘0’...
  • Page 15 ST310U User Manual 3minutes. In this case, it cannot receive a command by GPRS. 3. KEEP_NOP : The device doesn’t send any report after be installed. When the device enters emergency mode or receive ‘Start Report’ command by SMS or RS232, it starts report depending on report parameters.
  • Page 16 ST310U User Manual Field Definitions Unit Remark “SA200ADP” Command type DEV_ID 6 char. Device ID “02” Protocol Version SVR_TYPE ‘T’ / ‘U’ Server Protocol Type T : TCP U : UDP B_SVR_TYPE ‘T’ / ‘U’ Backup Server Protocol Type T : TCP...
  • Page 17 ST310U User Manual UDP is protocol that doesn’t check whether the data is transmitted successfully. So, the device checks completion of sending with ACK depending on UDP_ACK type. ACK is sent by server when the data is received. If the ACK is not sent during more than 2 minutes after sending, the device recognizes the data was not reached to server and sends the data again.
  • Page 18 ST310U User Manual CHR_STOP_THRES_12 String Voltage value to stop backup battery charging in 12V vehicle. CHR_STOP_THRES_24 String Voltage value to stop backup battery charging in 24V vehicle. DECIDE_BAT_24 String Voltage value to check whether the vehicle’s battery is 12V or 24V.
  • Page 19 ST310U User Manual “SA200MSR” Command type DEV_ID 6 char. Device ID “02” Protocol Version SHOCK_DELAY String Sec. Delay for entering shock detection mode after ignition off 0 – Disable Range : 1 ~ 21600 (5hour) Recommend : 600 ( 10 min.)
  • Page 20 ST310U User Manual <notes> * For the shock level, we recommend it to set to 0.04. if it's over than 0.04, the sensor will be more insensitive as it for shock detection. 4-11. Control Command DEV_ID CMD_ID ● Definition : Controls some functions.
  • Page 21 ST310U User Manual ● Definition : Reset all of parameters. Field Definitions Unit Remark CMD_ID “Reset” Reset Initialize all parameters with factory value and reboot the device. <example> [command] SA200CMD;850000;02;Reset [response] SA200CMD;Res;850000;010;Reset 4-11-3. Preset ● Definition : Reset all of parameters.
  • Page 22 ST310U User Manual <notes> ** After power on, device sends response string of preset once. ** DEV filed informs current status of device as below. BAT_CON OUT1 OUT2 PWR_DN Backup battery 0 = Disable 0 = Disable 0 = Normal disconnected.
  • Page 23 ST310U User Manual 4-11-4. ACK of Emergency ● Definition : Stop emergency report. Field Definitions Unit Remark CMD_ID “AckEmerg” Acknowledgement of emergency report. The device will stop emergency reports if it is in emergency state. <example> [command] SA200CMD;850000;02;AckEmerg [response] SA200CMD;Res;850000;010;AckEmerg 4-11-5.
  • Page 24 ST310U User Manual Field Definitions Unit Remark CMD_ID “Disable1” Disable Output1 <example> [command] SA200CMD;850000;02;Disable1 [response] SA200CMD;Res;850000;010;Disable1 [response] SA200CMD;Res;850000;010;Disable1NoUse (in case that IN type is set to ‘No Use’). <notes> ** Output1 line goes to inactive status. 4-11-9. Request IMSI ● Definition : Request the unique SIM ID.
  • Page 25 ST310U User Manual Field Definitions Unit Remark CMD_ID “ReqVer” Request device version Device reports Model, Buyer, Protocol and S/W release version. <example> [command] SA200CMD;850000;02;ReqVer [response] SA200CMD;Res;850000;010;ReqVer;SA200E_SAMPLE_STBASE_001 4-11-12. Erase All ● Definition : Erase all of data in buffer. Field Definitions...
  • Page 26 ST310U User Manual Field Definitions Unit Remark CMD_ID “InitMsgNo” Set message number to 0. <example> [command] SA200CMD;850000;02;InitMsgNo [response] SA200CMD;Res;850000;010;InitMsgNo 4-11-23. Reboot ● Definition : reboot unit. Field Definitions Unit Remark CMD_ID “Reboot” Reboot device. <example> [command] SA200CMD;850000;02;Reboot [response] SA200CMD;Res;850000;010;Reboot 4-11-24. Request SIM IP Address ●...
  • Page 27 Active state of Output 1 is open(Hi-Z) and active state of output 2 is ground. 3.6 Check GPS/GPRS operation and battery charger operation with LEDs. It takes 3~10 minutes for GPS connected. Caution: Direction of ST310U is very important when installed in the vehicle. Make sure that top side of ST310U...
  • Page 28 ST310U User Manual 4. Trouble Shooting (LED Indicator) 4.1 Blue LED: Indicates GPRS status. GPRS Blink Count Remarks Normal Server Com. Error <Possible Cause> 1. Server or network parameter is wrong. 2. Server is closed. 3. Temporary network barrier GPRS Com. Error <Possible Cause>...
  • Page 29 ST310U User Manual 4.2 RED LED: Indicates GPS status. Blink Count Remarks Normal No Fix <Possible Cause> 1. If power on, GPS chipset is trying to find position during some minutes. 2. GPS antenna lays on weak or no GPS signal position 3.
  • Page 30 ST310U User Manual FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 31 ST310U User Manual IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
