1. Install the USB driver to communication with ST3940B or ST4940B
Please refer to the "USB Driver Install guide.pdf"
2. Install the Synctrak4 which program to set the device's configuration.
Please refer to the "SyncTrak_v4 User Guide 101.pdf".
Use "SyncTrak.exe" in the folder "2-Synctrak Install"
3. Setting the Network parameter with Synctrak.

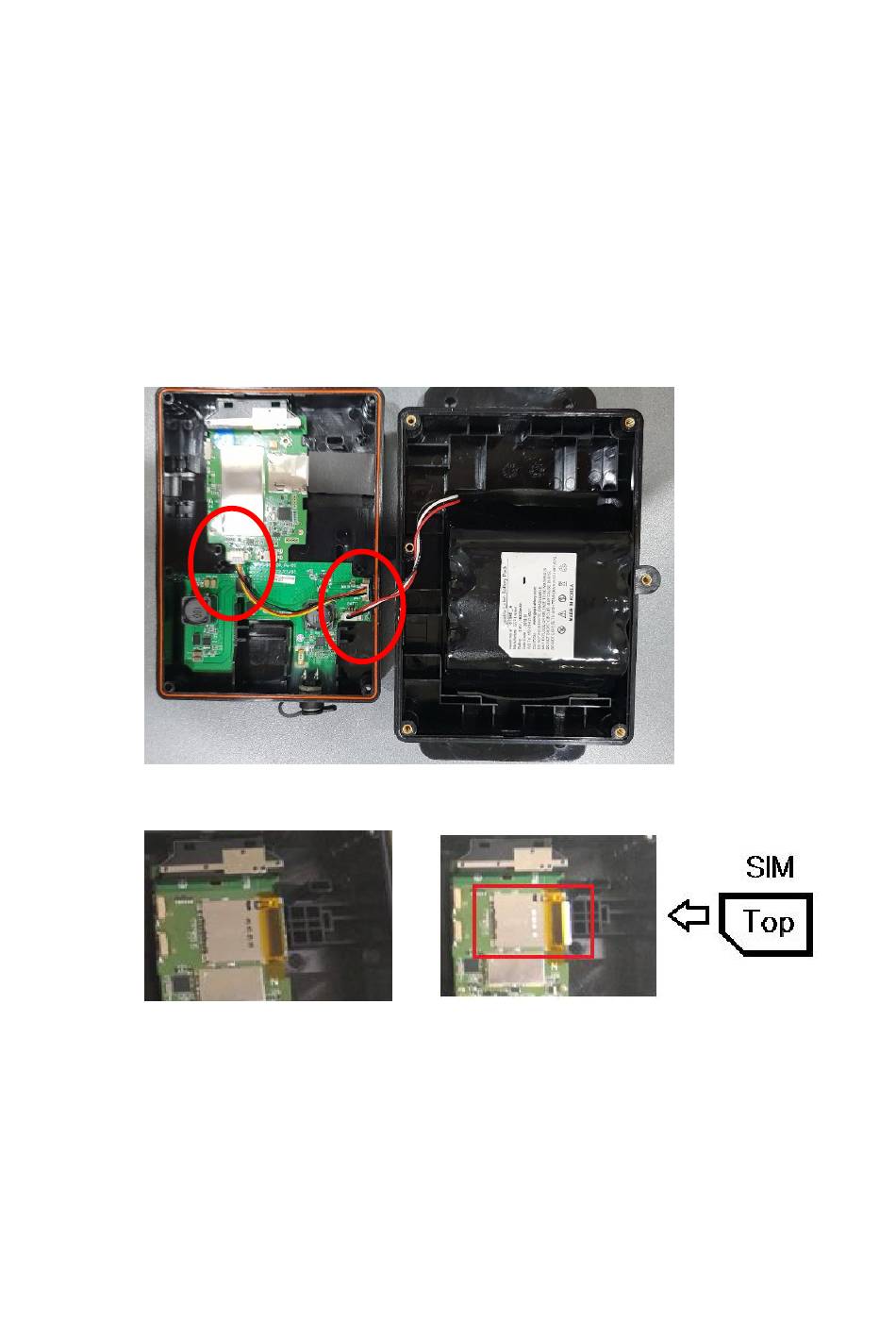

A. Battery Connection.
B. Insert SIM
C. Attach the cushion.
=>
Advertisement
Table of Contents
Related Manuals for SunTech ST3940B
Summary of Contents for SunTech ST3940B
- Page 1 1. Install the USB driver to communication with ST3940B or ST4940B Please refer to the “USB Driver Install guide.pdf” 2. Install the Synctrak4 which program to set the device’s configuration. Please refer to the “SyncTrak_v4 User Guide 101.pdf”. Use “SyncTrak.exe” in the folder “2-Synctrak Install”...
- Page 2 In order not to make the SIM separate from the PCB, please attach a cushion part to the red area. D. Turn on the device. Press and hold the device power button for 3 seconds to turn on the device. POWER Button Make sure the LED is blinking on the front of the case and press it again for 3 seconds if it...
- Page 3 F. Run Synctrak4 installed. G. When the following screen appears, press “Port Open” H. When connection is made, the following screen displayed. Setting item 1 in the above figure for Network connection., This is the data setting under “How to set ‘Network Parameters’” of OperationManual chapter8 ‘0’...
- Page 4 0 : Disable (PAP) (‘NO’ in ‘SyncTrak’) 1 : Enable (CHAP) (‘YES’ in ‘SyncTrak’). A : Automatic GPRS set. In this case, parameters for APN, USER_ID and USER_PWD field should remain empty. *PAP : Password Authentication Protocol *CHAP : Challenge Handshake Authentication Protocol String Access Point Name USER_ID...
- Page 5 K. Verify that the report was sent to the server. L. USB cable Removal & Case Assembly Assembly; Tighten the five screws Screws : normal 2.6 * 12.0mm size M. *Proper Torque: 3.0~3.5 Kgf.cm * See Operation Manual for other details. -- END...
