Safety

Safety Devices

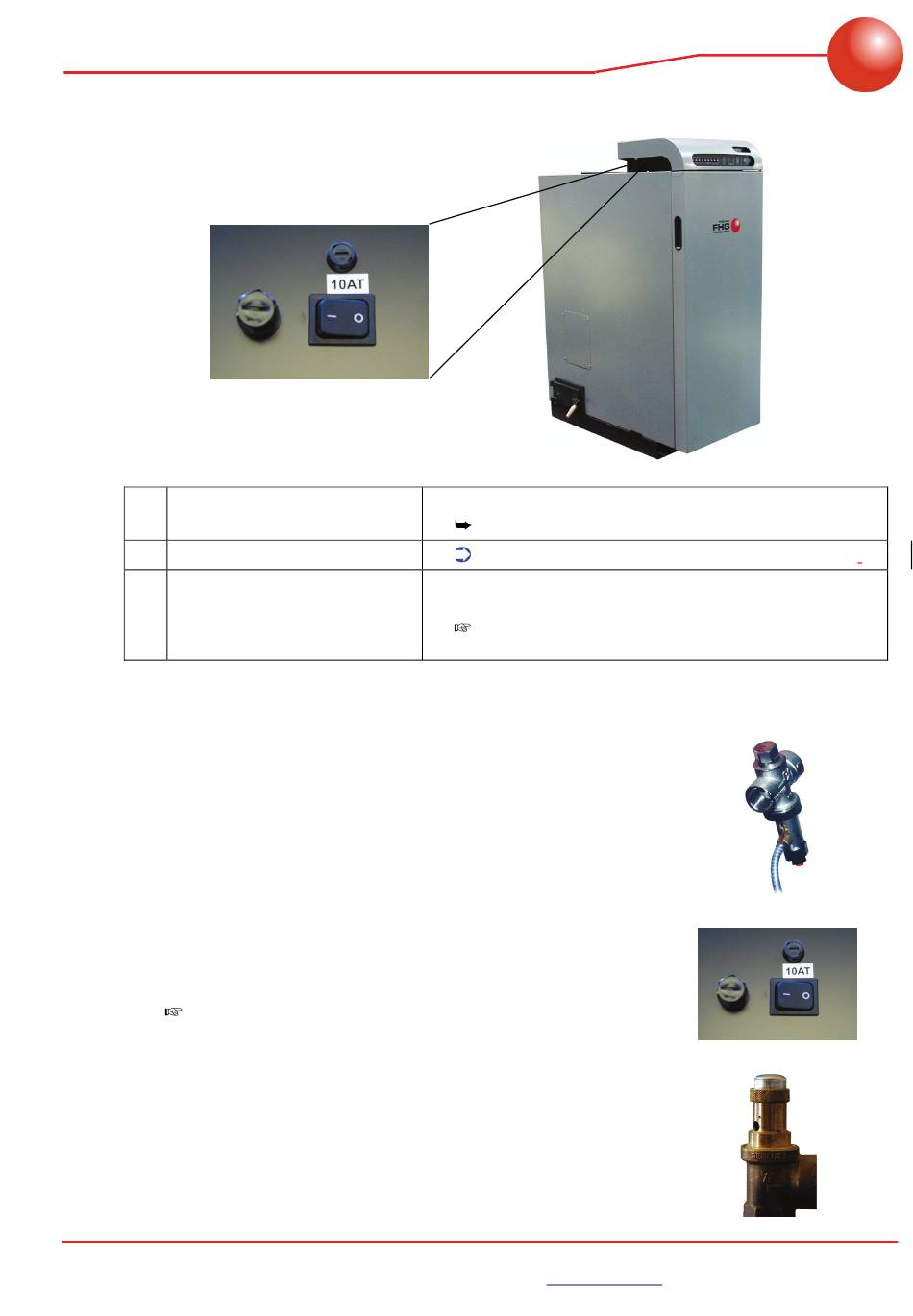

2.3 Safety devices
9 Main switch
10 Safety Temperature Limiter
11 Fusing

Devices for Preventing the Boiler from Over-heating

1. Thermal Discharge Safety Device
When 100 °C is reached, this device opens a valve and sends
cold water to the safety heat-exchanger in order to decrease
the temperature.
2. Safety Temperature Limiter
Switches off the blower fan at the maximum boiler temperature
of 105 °C. The pumps continue to run.
Once the temperature has fallen to under approx. 95 °C,
the safety temperature limiter 10 can be unlocked
mechanically.
3. Safety valve
Protection against over-heating:
When the boiler pressure reaches approximately 3 bar, the
safety valve opens and the heated water is blown off in the
form of hot water or steam.
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestraße 12, A-4710 Grieskirchen
Tel. +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com
11
9
10
For shutting down the entire system
All components are switched off and powered down
Devices for Preventing the Boiler from
Properly fuse the control system and any electronic
components
When changing fuses, ensure the fuses are rated for
the rated current (10AT).
www.froeling.com
2
Over-heating.
10
