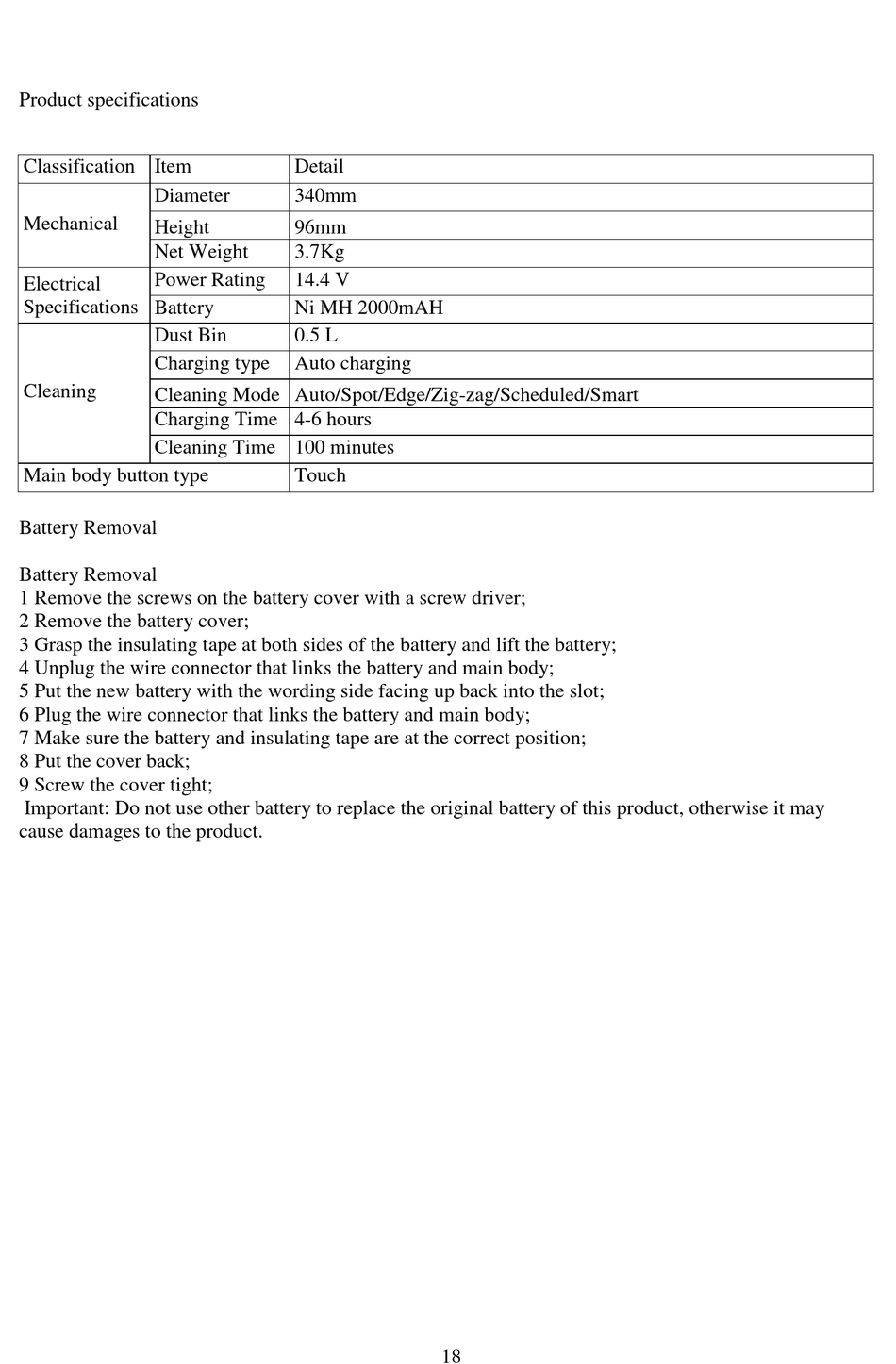

Product Specifications; Battery Removal - Midea MVC-RTB2-R User Manual

Product specifications

Classification Item
Diameter
Mechanical
Height
Specifications
Net Weight
Power Rating
Electrical
Specifications Battery
Specifications
Dust Bin
Capacity
Charging type
Cleaning
Cleaning Mode Auto/Spot/Edge/Zig-zag/Scheduled/Smart
Specifications
Charging Time 4-6 hours
Cleaning Time 100 minutes
Main body button type

Battery Removal

Battery Removal
1 Remove the screws on the battery cover with a screw driver;
2 Remove the battery cover;
3 Grasp the insulating tape at both sides of the battery and lift the battery;
4 Unplug the wire connector that links the battery and main body;
5 Put the new battery with the wording side facing up back into the slot;
6 Plug the wire connector that links the battery and main body;
7 Make sure the battery and insulating tape are at the correct position;
8 Put the cover back;
9 Screw the cover tight;
Important: Do not use other battery to replace the original battery of this product, otherwise it may
cause damages to the product.
Detail
340mm
96mm
3.7Kg
14.4 V
Ni MH 2000mAH
0.5 L
Auto charging
Touch
18
