FLIR Scout Quick Start Manual

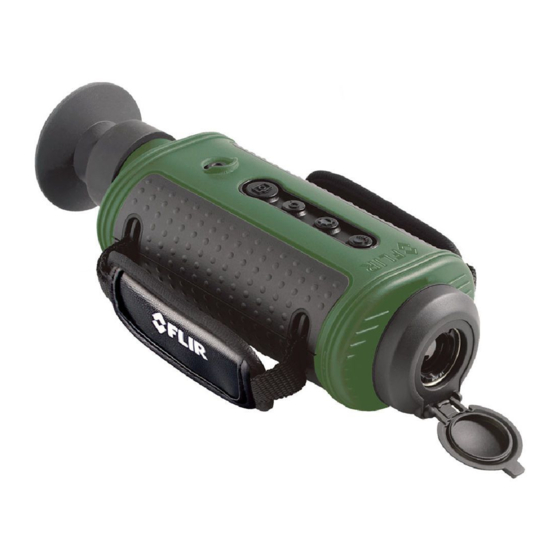

Scout Quick Start Guide

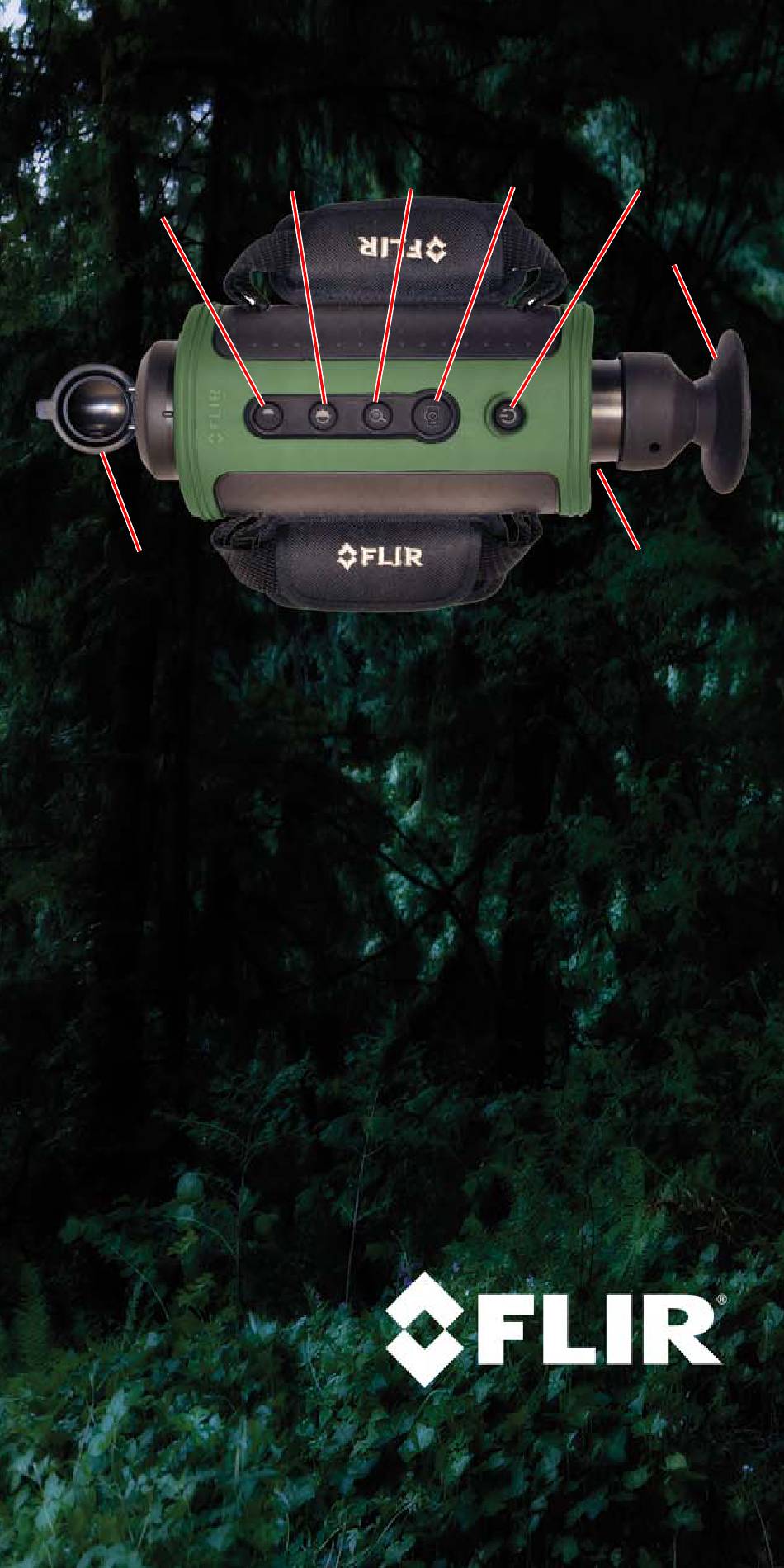

Display
Brightness
Lens cap
Power Button – The Scout camera has 3 power modes:
On, Off, and Standby.
• On - Takes approximately 90 seconds (during bootup there is a
fast-flashing red LED on the eyepiece display).
• Standby - After the camera is on, pressing the Power button will
toggle the camera between On and Standby mode. (In Standby
there is a slow-flashing red LED on the eyepiece display.)
• Off - Push and hold the power button for 8 sec. to turn off.
Capture Button – When enabled, takes snapshots (press and
release) or video clips (press and hold 3 seconds to start video
recording). The files are stored on the integrated SD card..
Display Brightness – Toggle through five brightness settings.
White/Black Hot/Instalert – In White Hot, hotter items appear
as white or light grey. In the Black Hot, hotter items appear as black
or dark grey. In Instalert, hot items in a scene are outlined in red.
2× Zoom – When enabled, causes the image to zoom to 2X.
Diopter Controls – The diopter adjustment knob allows a ±2
diopter range.
431-TS00-02-QS Rev 110
White hot/
Black hot/
2x zoom
Instalert
Capture Power
Adjustable
diopter ±2
June 2012
Eyepiece
