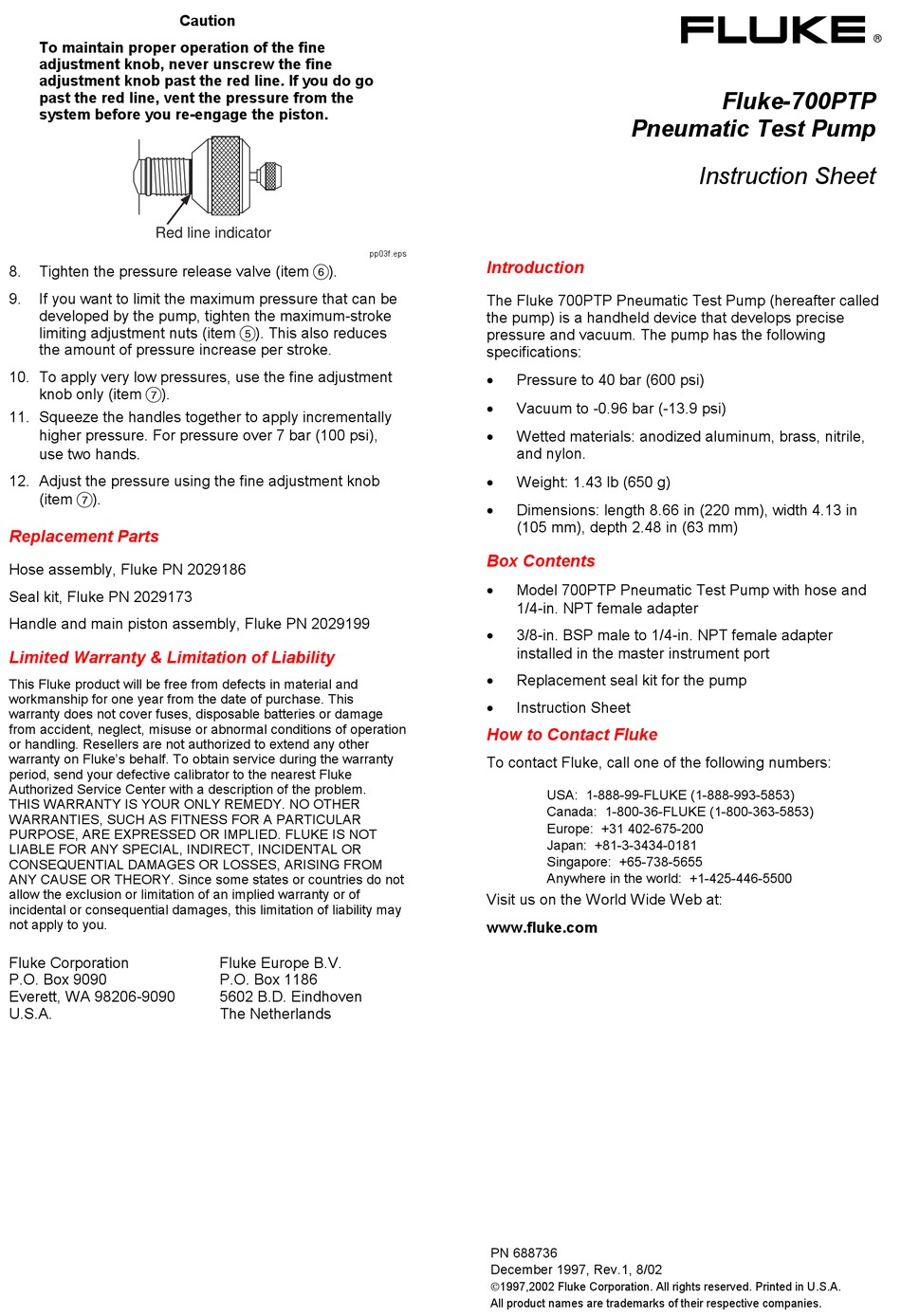

Fluke 700PTP Instruction Sheet

To maintain proper operation of the fine
adjustment knob, never unscrew the fine
adjustment knob past the red line. If you do go
past the red line, vent the pressure from the
system before you re-engage the piston.
Red line indicator
Tighten the pressure release valve (item .).
8.
9. If you want to limit the maximum pressure that can be
developed by the pump, tighten the maximum-stroke
limiting adjustment nuts (item -). This also reduces
the amount of pressure increase per stroke.
10. To apply very low pressures, use the fine adjustment
knob only (item /).
11. Squeeze the handles together to apply incrementally
higher pressure. For pressure over 7 bar (100 psi),
use two hands.
12. Adjust the pressure using the fine adjustment knob
(item /).

Replacement Parts

Hose assembly, Fluke PN 2029186
Seal kit, Fluke PN 2029173
Handle and main piston assembly, Fluke PN 2029199
Limited Warranty & Limitation of Liability
This Fluke product will be free from defects in material and
workmanship for one year from the date of purchase. This
warranty does not cover fuses, disposable batteries or damage
from accident, neglect, misuse or abnormal conditions of operation
or handling. Resellers are not authorized to extend any other
warranty on Fluke's behalf. To obtain service during the warranty
period, send your defective calibrator to the nearest Fluke
Authorized Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM
ANY CAUSE OR THEORY. Since some states or countries do not
allow the exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of liability may
not apply to you.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Caution
Fluke Europe B.V.
P.O. Box 1186
5602 B.D. Eindhoven
The Netherlands
pp03f.eps
Introduction
The Fluke 700PTP Pneumatic Test Pump (hereafter called
the pump) is a handheld device that develops precise
pressure and vacuum. The pump has the following
specifications:
•
Pressure to 40 bar (600 psi)
•
Vacuum to -0.96 bar (-13.9 psi)
•
Wetted materials: anodized aluminum, brass, nitrile,
and nylon.
•
Weight: 1.43 lb (650 g)
•
Dimensions: length 8.66 in (220 mm), width 4.13 in
(105 mm), depth 2.48 in (63 mm)
Box Contents
• Model 700PTP Pneumatic Test Pump with hose and
1/4-in. NPT female adapter
•
3/8-in. BSP male to 1/4-in. NPT female adapter
installed in the master instrument port
•
Replacement seal kit for the pump
•
Instruction Sheet
How to Contact Fluke
To contact Fluke, call one of the following numbers:
Visit us on the World Wide Web at:
www.fluke.com
PN 688736
December 1997, Rev.1, 8/02
1997,2002 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.
Pneumatic Test Pump
Instruction Sheet
USA: 1-888-99-FLUKE (1-888-993-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
®
Fluke-700PTP
