Installation Sheet
(
)
Wiegand Interface

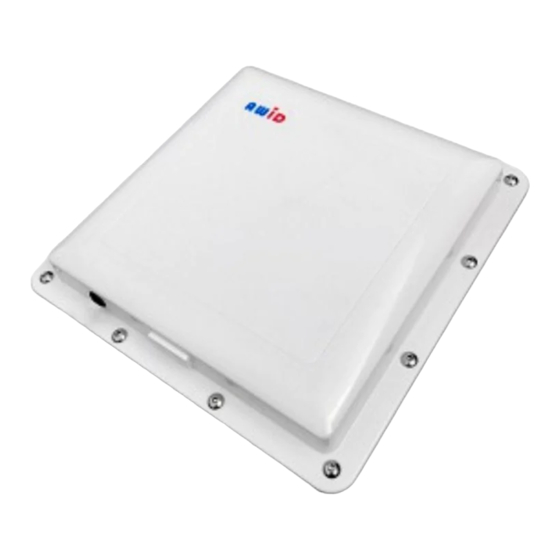

LR-3200 UHF Reader
These instructions are for AWID's Model LR-3200 Long Range Reader, using compatible UHF credentials from
AWID. This guide describes installation using the Wiegand interface. For RS-232 interface, download AWID's
Technical Reference.

Preparation

Reader Location: Select the reader's mounting location. The LR-3200 Reader may be screwed to a pole,
pedestal, or flat surface with appropriate mounting hardware (LR-MB-0-0). Mounted on a metal surface; the
read range may be reduced.
DC Power Supply: A separate dedicated DC Power Supply for each LR-3200 Reader. Do not draw the
reader's power from the system's controller. Nominal 12 volts DC supply to the reader. Current capacity
needed; 3 amperes or more.
Cable: May be separate for data and for power, or may be combined for data and power together.
Max. length = 500 ft.
Power Alone – 18 gauge, 2 conductors, stranded wires, color-coded, overall shielded, high quality.
Data Alone – 22 gauge, 3 conductors, stranded wires, not twisted pairs, overall shielded, high quality.
Combined Cable – 18 gauge, 5 conductors, stranded wires, not twisted pairs, overall shielded, high quality.
If cables are pulled through metal conduit, the conduit should be earth-grounded.
Figure 1
LR-3200 Reader Installation Sheet
Version 1.0
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR-3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AWID LR-3200

Summary of Contents for AWID LR-3200

  • Page 1 (LR-MB-0-0). Mounted on a metal surface; the read range may be reduced. DC Power Supply: A separate dedicated DC Power Supply for each LR-3200 Reader. Do not draw the reader’s power from the system’s controller. Nominal 12 volts DC supply to the reader. Current capacity needed;...
  • Page 2 Testing the Completed System Once mounting and wiring is completed, power up the LR-3200 and check that the Red LED is illuminated. Drive a vehicle/walk with an attached tag into the read-zone on the lane. Observe the Green LED activity light, good reads are indicated by blinking from the Green LED.
