INSTALLATION INSTRUCTIONS
Natural Woven Shades
DuoShade
Natural Woven Shades
Installation Instructions
DuoShade
Thank you for purchasing your new Natural Woven Shade.
It has been custom-made from the highest quality materials
to the dimensions you specified. With proper installation and
care, it will provide you with many years of beauty and trouble-
free use.
Please read all instructions before you start so you will be familiar
with the overall process.
Getting Started
Remove the shades from the packaging but do not dis-
pose of the packaging until the shades are installed to
your satisfaction.
As much as possible, leave the shades in their factory configura-
tions as they come out of the boxes. However, for cord and
pulley or cord lock lifting systems, depending on the placement
of the cords, you may need to remove the T pins immediately to
avoid damaging the cords during installation. Leave the straps
around the roll shade until it is installed.
Tools
• Pencil
• Awl
• Tape measure
• Level
• Ladder or stepstool
• Motor tester (if shade
is motorized)
Hardware

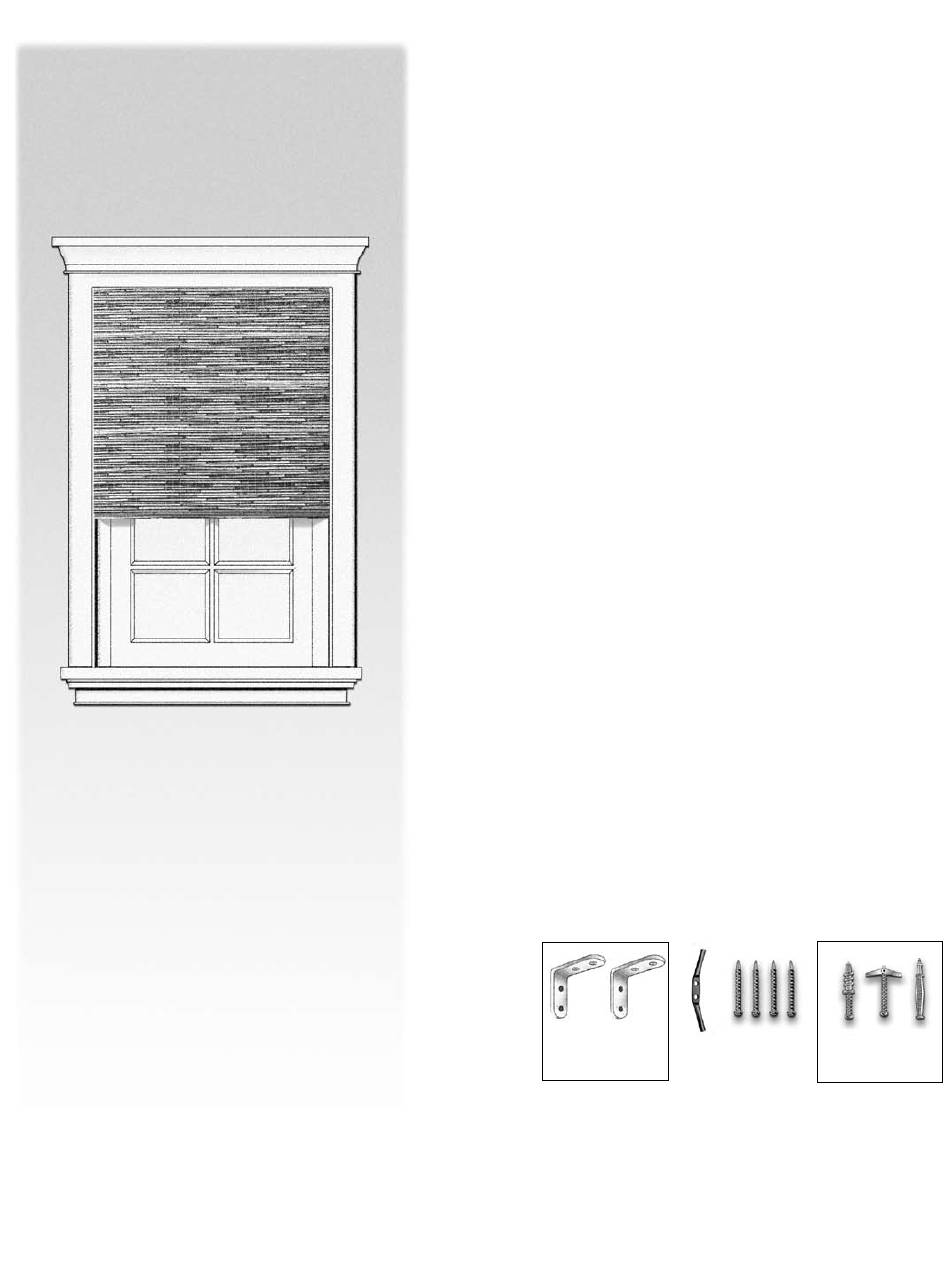

Check to make sure you received the brackets and screws
shown in the diagram. Keep in mind that the brackets must
be securely attached to the wall or other mounting surface,
preferably by drilling the screws into wood studs. If studs
are not available, you will need to purchase special fasteners
designed for your situation (see illustration for examples of
common fasteners).
• Power drill with the following bits:
– ¹⁄
" drill bit
16
– ¹⁄₈" drill bit
– ¹⁄₄" hex driver
– Phillips screwdriver
– Masonry drill bit (if drilling
into concrete or brick)
Common Fasteners
(Not included)
Advertisement
Table of Contents
Related Manuals for Fabritec designs DuoShade Natural Woven Shades
Summary of Contents for Fabritec designs DuoShade Natural Woven Shades
- Page 1 Natural Woven Shades INSTALLATION INSTRUCTIONS Installation Instructions DuoShade Thank you for purchasing your new Natural Woven Shade. It has been custom-made from the highest quality materials to the dimensions you specified. With proper installation and care, it will provide you with many years of beauty and trouble- free use.
- Page 2 Components The following components are included: Natural Woven Shade and Rollstar™ shade (shipped in separate cartons), motor brackets or chain and clutch brackets shipped attached to the headrail, screws, mounting brackets (for outside mount), and cord cleat. Inside Mount Step 1: Mark the Shade Position Center the shade inside the window frame at the required depth.
- Page 3 Step 3: Attach the Rollstar Shade Step 2: Mark the Bracket Mounting Positions Remove the Rollstar shade from its packing, but leave the Mark the bracket mounting positions below the headrail position shade rolled up. as shown. Place a bracket about 3" from each end of the headrail and make sure the brackets are level with each other.
-
Page 4: Troubleshooting
Safety Motorized Lifting System—First place the idler end in its bracket on the headrail. Then, drop the motor end into its bracket, making sure the limit switches are easily accessible. Hanging cord or chain is a safety hazard for children or pets. Insert the cotter pin in the motor end, and bend the tabs so it To prevent possible strangulation, be sure these finishing cannot slip out.
