EST. 1973

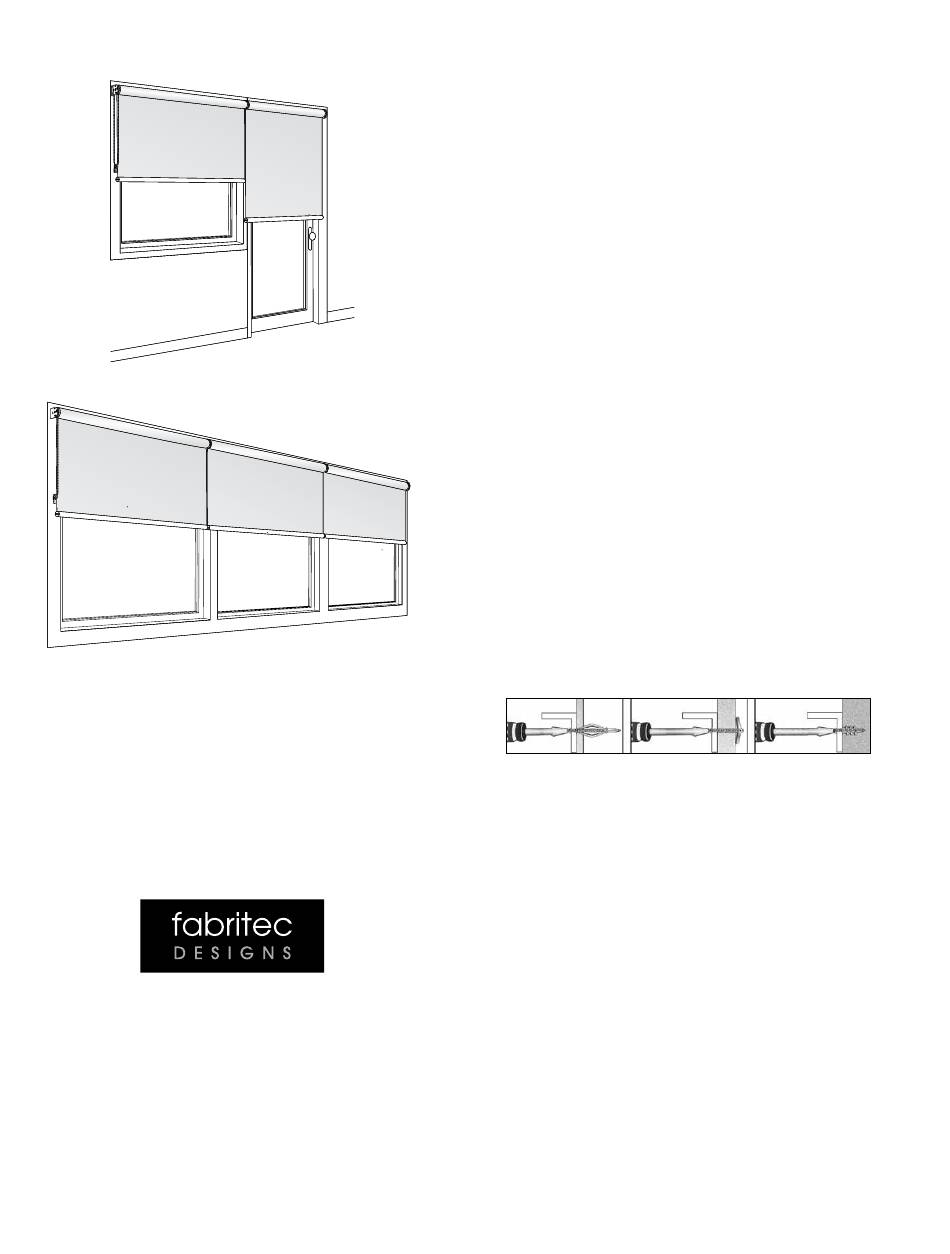

»Duo Link
EST. 1973
EST. 1973
»Multi Link
DUO & MULTI LINK SYSTEMS
INSTALLATION INSTRUCTIONS
(for the L40, L40 PLUS and
L45, L45 PLUS SYSTEMS)
EST. 1973
EST. 1973
DUO & MULTI LINK SYSTEMS
INSTALLATION INSTRUCTIONS
Thank you for purchasing your new Duo/Multi Link Systems.
They have been custom-made from the highest quality
materials to the dimensions you specified. With the proper
installation and care, it will provide you with many years of
beauty and trouble-free use.
Please read all instructions before you start so you will be
familiar with the overall process.
Make sure you measure your window to ensure the links,
clutches and shades will fit properly before beginning.
Getting Started
Remove the clutch and shade from the packaging. Keep
the packaging until you have successfully installed the Duo/
Multi Link system, clutch and shade.
TOOLS REQUIRED
• Pencil
• Awl
• Tape Measure
• Level
• Ladder or Stepstool
• Putty Knife
FASTENER NOTES
For outside mount, it is best to attach the bracket to wood
studs. If this is not possible, you will need to purchase special
fasteners (see illustration below for examples).
Molly Bolt
Here are some HELPFUL TIPS:
• If you are using a special fastener, make sure it is
designed to support the weight of the clutch and shade.
Follow the fastener manufacturer's instructions carefully.
• When drilling into drywall or plaster, use a fastener
designed for hollow wall applications (see illustration).
• When drilling into concrete, stone, brick, or tile, use
appropriate plugs, anchors, or screws (not included).
• When drilling into metal, the included screws are sufficient.
Pre-drill ¹⁄₈" holes.
1
4
- page
of
-
• Power Drill with the following bits:
- ¹⁄₁₆" Drill Bit
- ¹⁄₄" Hex Driver
- Standard Screwdriver
- Masonry Drill Bit (if drilling into
concrete or brick)
Hollow Wall Anchor
Anchor
Advertisement
Related Manuals for Fabritec designs L45 PLUS
Summary of Contents for Fabritec designs L45 PLUS
-
Page 1: Getting Started
• If you are using a special fastener, make sure it is (for the L40, L40 PLUS and designed to support the weight of the clutch and shade. L45, L45 PLUS SYSTEMS) Follow the fastener manufacturer’s instructions carefully. • When drilling into drywall or plaster, use a fastener designed for hollow wall applications (see illustration). - Page 2 BEFORE YOU BEGIN, VERIFY THAT YOU HAVE ALL THE NECESSARY STEP 2 - INSTALLING THE SHADES (CONTINUED). PARTS AND PIECES: FOR THE MULTI LINK SYSTEM • PACKAGE - Contains two universal end brackets with a Note: On the shade with the idler end, remove the cross shaped hole, center brackets (one only for the Duo transit clip.
- Page 3 STEP 2 - INSTALLING THE SHADES STEP 2 - INSTALLING THE SHADES. (CONTINUED). FOR THE MULTI LINK SYSTEM FOR THE DUO LINK SYSTEM d) Next, install the second shade with the idler end. The idler a) Sort the shades based on your order. Both of the shades end of this shade must be installed first.
- Page 4 STEP 2 - INSTALLING THE SHADES STEP 4 - ADD THE END CAPS FOR A FINISHED LOOK. (CONTINUED). FOR THE DUO LINK SYSTEM Note: The end caps cannot be used on an inside mount installation. d) Next install the shade with the female coupler end. The control end of this shade must be installed first.
