Fabritec designs SMARTROLL 24-1 Installation Instructions

Safe and Silent Solutions
for Roller Shades
SMARTROLL™ 24-1

INSTALLATION INSTRUCTIONS

ROLLER SHADES
INSTALLATION INSTRUCTIONS ~ SMARTROLL™ 24-1
Thank you for purchasing your new Smartroll shades. They
have been custom-made from the highest quality materials
to the dimensions you specified. With the proper installation
and care, it will provide you with many years of beauty and
trouble-free use.
Please read all instructions before you start so you will be
familiar with the overall process.
Make sure you measure your window to ensure the shade
will fit properly before beginning.

Getting Started

Remove the Smartroll shades from the packaging. Keep the
packaging until you have successfully installed the shades.
TOOLS REQUIRED
• Pencil • Power Drill with the following bits:
• Awl - ¹⁄₁₆" Drill Bit
• Tape Measure - ¹⁄₄" Hex Driver
• Level - Standard Screwdriver
• Ladder or Stepstool - Masonry Drill Bit (if drilling into
FASTENER NOTES
For outside mount, it is best to attach the bracket to wood
studs. If this is not possible, you will need to purchase special
fasteners (see illustration below for examples).

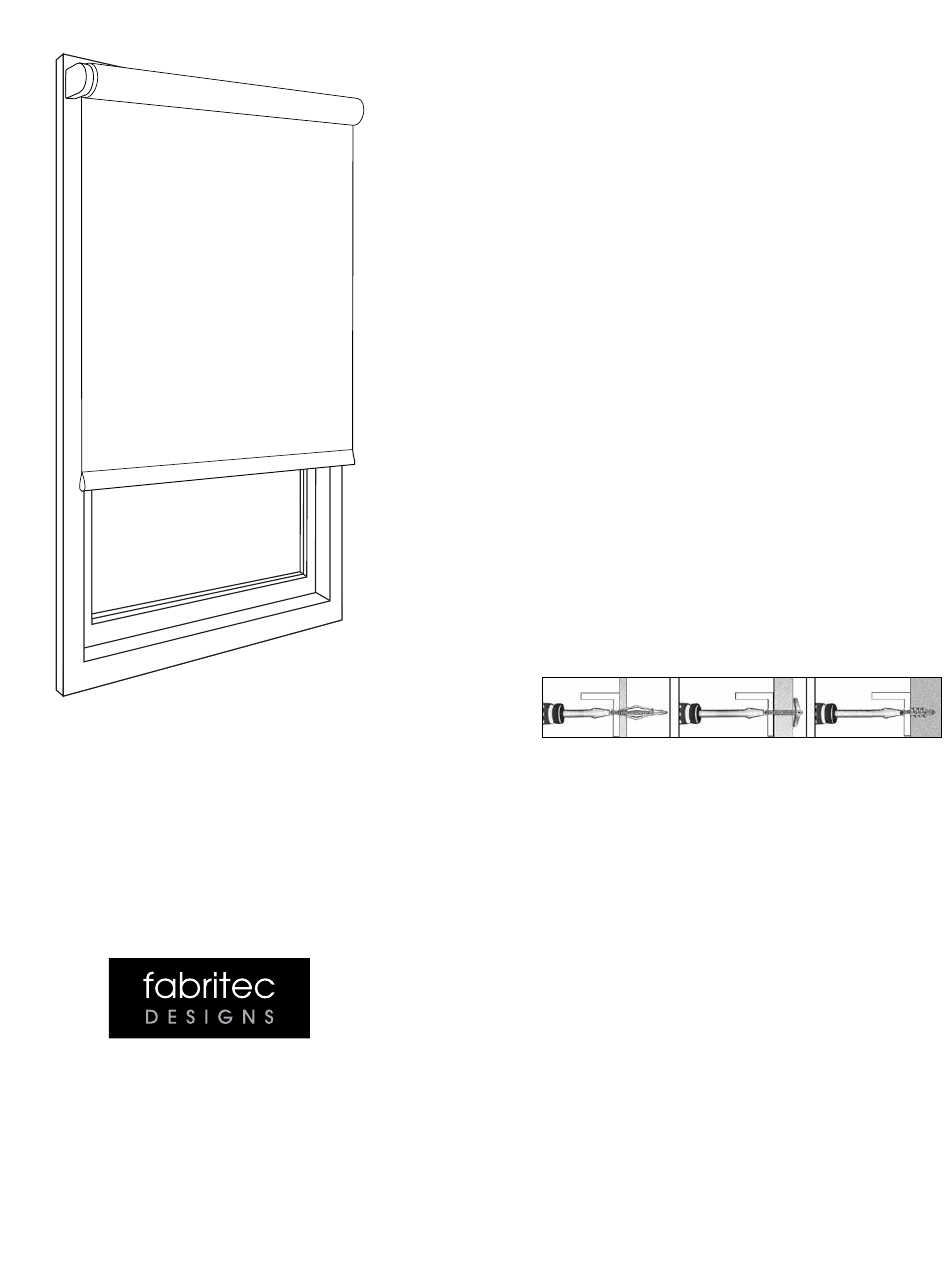

Molly Bolt Hollow Wall Anchor
Here are some HELPFUL TIPS:
• If you are using a special fastener, make sure it is
designed to support the weight of the shades. Follow the
fastener manufacturer's instructions carefully.
• When drilling into drywall or plaster, use a fastener
designed for hollow wall applications (see illustration).
• When drilling into concrete, stone, brick, or tile, use
appropriate plugs, anchors, or screws (not included).
• When drilling into metal, the included screws are sufficient.
Pre-drill ¹⁄₈" holes.
concrete or brick)
Anchor
