Specifications
Image Sensor
¼" B&W CMOS Image
Sensor
Effective Pixels
H: 320, V: 240
Scanning System
2:1 Interlace EIA
Scanning Frequency
H: 15.75KHz, V: 60Hz
Resolution
240 TV Lines
Shutter Speed
Auto 1/60 – 1/6,000 Sec
S/N Ratio
N/A
Sync. System
Internal
Min. Illumination
0.5 Lux F2.0
White Balance
AWB
Video Output
1 Vp-p
Video Termination
6 pin Mini DIN
Lens
3.6 mm F2.0
Power Supply
12 Vdc (from Monitor)
Current Consumption
150 mA
º
Operating Temp
14
F to 113
Weather Proof Rating
IP 44
Gain Control
AUTO
It's all on the web
Product Information
User Manuals
Quick Start Guides
V I S I T
www.lorexcctv.com
Strategic Vista International Inc.
Copyright © 2005 Strategic Vista International Inc
As our products are subject to continuous improvement, SVII
º
º
º
F (-10
C to 45
C)
and its subsidiaries reserve the right to modify product design,
specifications and prices, without notice and without incurring
any obligation. E&OE
O B S E R V A T I O N S Y S T E M C A M E R A
Specification Sheets
Software Upgrades
Firmware Upgrades
B U S I N E S S & H O M E
B & W I N D O O R / O U T D O O R

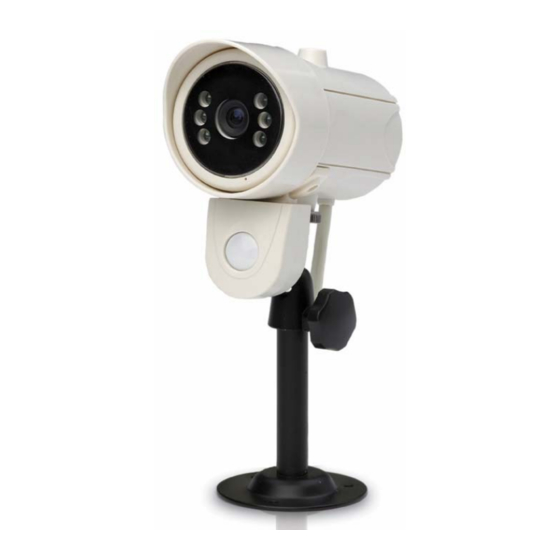

Model SG7210S
Quick Set-up Guide
Advertisement
Table of Contents
Related Manuals for Lorex SG7210S
Summary of Contents for Lorex SG7210S
-
Page 1: Specifications
B & W I N D O O R / O U T D O O R O B S E R V A T I O N S Y S T E M C A M E R A Product Information Specification Sheets Model SG7210S User Manuals Software Upgrades Firmware Upgrades... -
Page 2: Troubleshooting
3. Connect the Camera to the Monitor a. Connect the other end of the cable to the back a. Attach the camera to the mounting stand and SG7210S Camera with 6’ cable and of the observation system monitor. tighten the swivel.
