FLIR Horizon Series Quick Installation Manual

A. Horizon NVR RAID Server 2U

Package Contents

1. NVR RAID Server 2U, preloaded with Horizon Software
2. Printed QIG Instructions
3. Printed Dell transfer tag document
4. Printed MS EULA
5. ReadyRails Sliding Rails
6. Power Cord
7. Internal Horizon Recovery Image USB Stick
Note:
This Quick Installation Guide covers all variations of the NVR RAID Server 2U supplied for the
Horizon system.
B. Prerequisite Workflow
1. Setup your video network LAN and configure network infrastructure to
match your security plan (switches, routers, Ethernet cables and jacks).
2. Install power system infrastructure for the cameras - Power over
Ethernet (PoE), or properly-rated power supplies.
(Follow local electrical indoor and outdoor safety codes).
3. Install infrastructure wiring and hardware for ancillary devices, if they
interface with the system (relay outputs, alarm inputs, microphones, etc.).
4. Install optional infrastructure for analog cameras (BNC cabling to
encoders, etc.).
5. Mount the cameras and connect them to the network. Verify cameras are
suitable for the ambient conditions, or installed in protective housings as
needed – water, dust, heat, cold, and so on. Refer to the camera
specifications.
Horizon NVR Raid Server 2U
Quick Installation Guide
C. Horizon NVR RAID Server 2U

Hardware Connections

1. On the rear of the unit, connect the Power (1) and Monitor (2) cables to
the ports as shown. Connect the USB keyboard and mouse to 2
available USB ports (3).
2. Connect the Horizon server to the network:
- If your cameras are installed on a segregated (dedicated) network,
then connect the network cable to the "VIDEO" NIC (4).
Note: You may still use the "CORPORATE" NIC (5) to connect the Horizon server
to the corporate network, to allow remote viewing for clients whose
computers are connected to the corporate network.
- If your cameras are installed on the existing corporate network,
connect the network cable to the "CORPORATE" NIC (5).

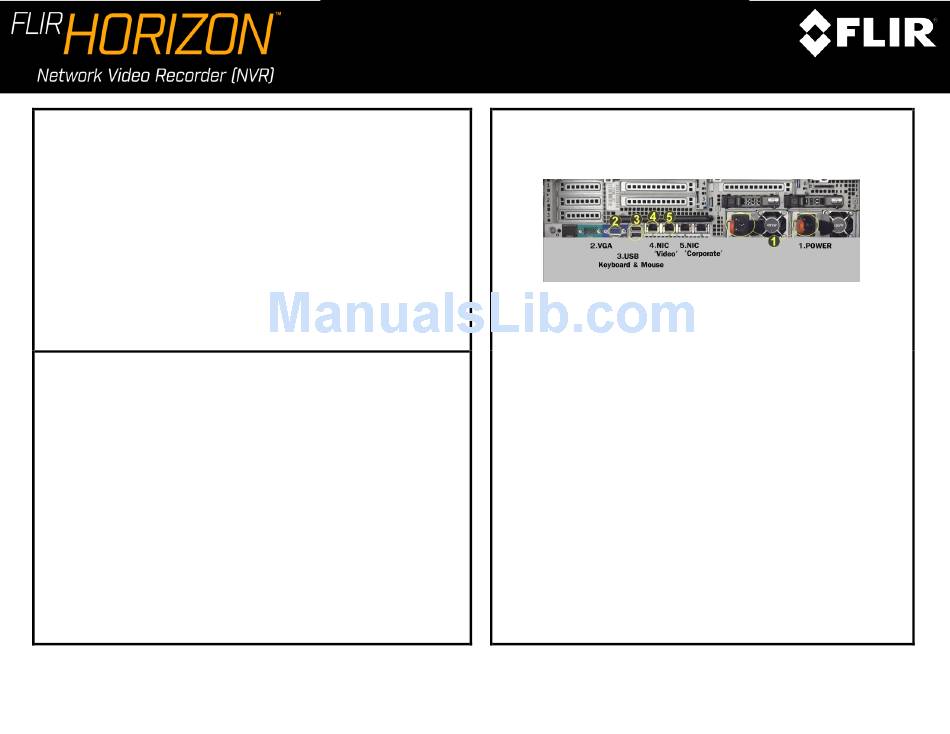

Figure 1 - NVR RAID Server 2U Hardware Connections
