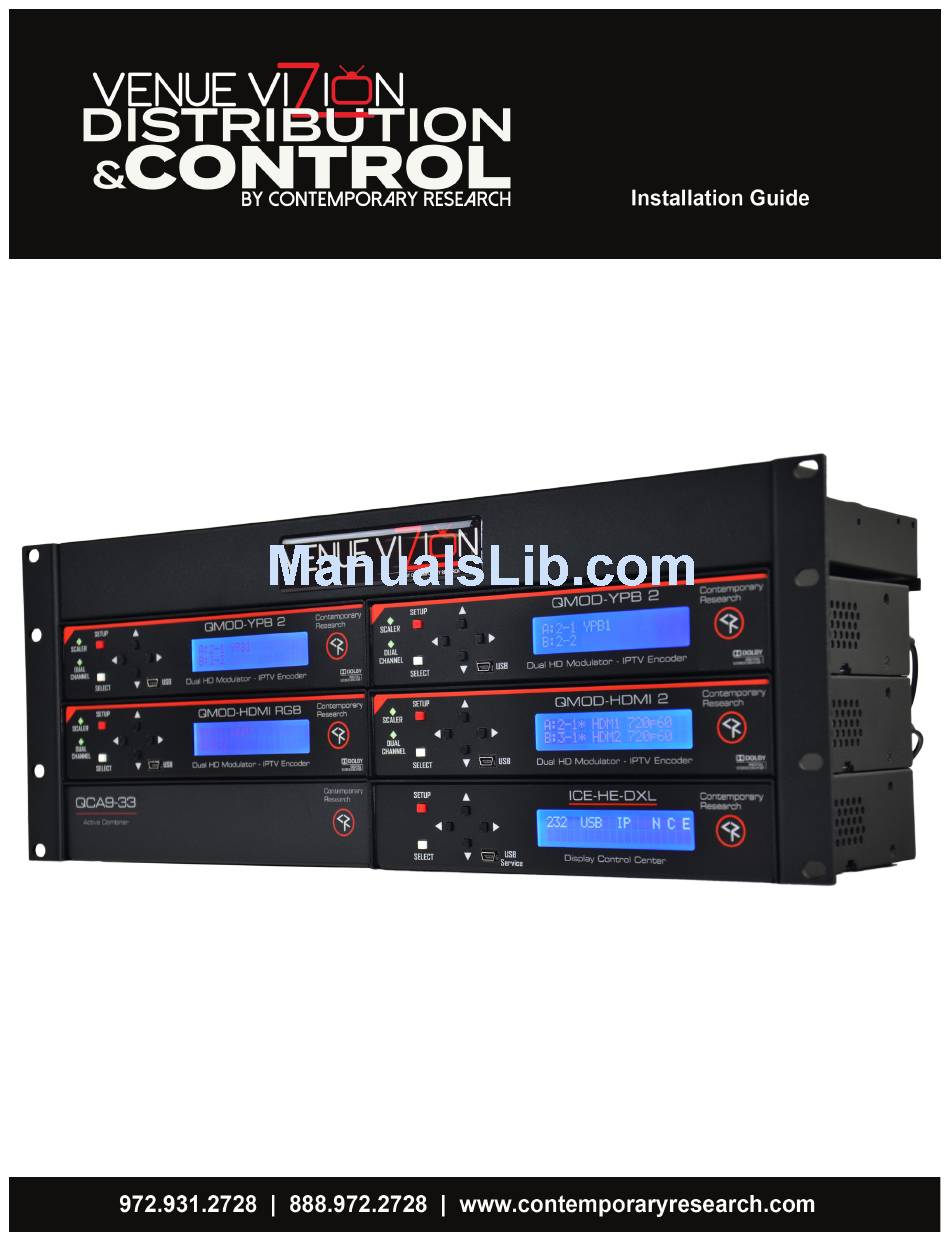

- Page 2 Check the packing list to identify the specific components and cables included in the shipment. Simplified Integration Process Venue Vizion arrives pre-racked, pre-wired, pre-set, pre-configured, and ready to install. This enables the system to be fully tested prior to the final rack installation.
-
Page 3: Testing The System
Testing the System Preparation • Remove the 4RU rack from the shipping box. • The rack is pre-wired for RF and power supplies. • Turn the racked units around to face the back. • If you ordered additional QMODs, those can be connected to the open input ports on the QCA9-33. Testing •... - Page 4 The switches on the left, S1, set the TV number, and the switches on the right, S2, set the Zone. The Up wswitch position is “On” and the Down position is “Off”. This corresponds to the 1 (On) and 0 (Off) values in the spreadsheet. For the Venue Vizion system, all TVs need to be set to Zone 1, 256.
- Page 5 TV Integration Setup • Connect the RF coax feed to RF In. • ICC1-IRX Connect IR Emitter cable to IR Out If the TV does not have discrete power on/off commands, there is an optional USB sensor cable that connects from the CSM1 sensor input to the TV’s USB port.
-
Page 6: Basic Network Setup
ICE-HE-DXL Setup Basic Network Setup • Connect the Display Control Center to the network. • Press the red SETUP button. • Press the Down arrow until “Network” is displayed then press the white SELECT button. • Use the Down arrow to view “IP Mode”. •... - Page 7 Display Express Lite The Display Express Lite web page in the ICE-HE-DXL Display Control Center is a compact version of full Display Express software that runs on a PC. The Lite version is simplified, allowing channel selection for individual or groups of TVs, and power and volume control for individual or groups of TVs.
- Page 8 Programming Display Express Lite The first 20 TVs and 8 channels have been predefined for ease of installation, but they may be modified. To customize the settings, click on the settings icon at the top right and select “Toggle Edit Mode” from the pop-up.
-
Page 9: Front Panel Display
Front Panel Display During normal operation, the ICE-HE-DXL displays the above text on the LED display. The top line shows communication ports as well as net- work and control status. “Rx” or “Tx” appears briefly under the three external ports (232, USB, IP) to show I/O activity, and a white cursor will blink under the three status options (Network, Communication, Error). - Page 10 Each QMOD has two encoders, Program A and Program B. Both programs are included in each channel, and a TV will show both programs in its channel list. For example, R F Channel 2 will be shown as 2-1 and 3-1 on a TV (using the default setup for Venue Vizion systems).
- Page 11 65 but should not be a factor if the cable runs are less than 150 to 200 feet. For the example below to work correctly, the RF level of the QMOD devices in the Venue Vizion system will need to be set to 25 dBmV. Refer to the instructions on previous page for modifying the RF level.
