Summary of Contents for Technicolor CGA4233

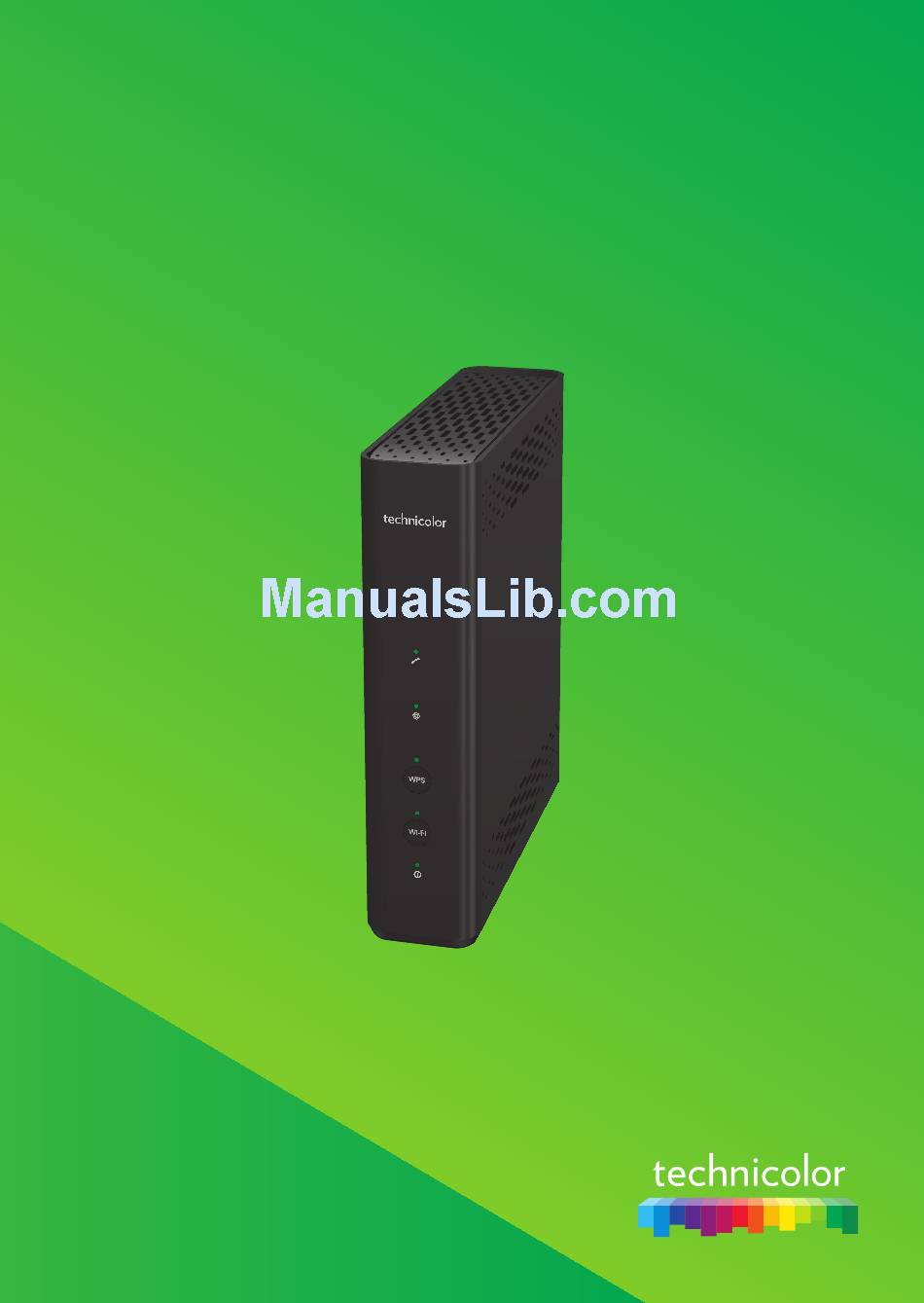

- Page 1 CGA4233 Quick Setup Guide...
- Page 2 1. Before you start Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with the installation of your CGA4233. 2. Check the content of your package Besides this Quick Setup Guide, your package contains the following items:...
- Page 3 3. Connect the CGA4233 to the broadband service 1 Take a coaxial cable. 2 Connect one end of the coaxial cable to the coaxial wall jack or splitter. 3 Connect the other end to the port on the back of the CGA4233.
- Page 4 1 Take the yellow Ethernet cable. 2 Connect one end of the Ethernet cable to one of the yellow Ethernet ports on your CGA4233. Connect the other end of the Ethernet cable to your device. 6. Connect your wireless network devices...
- Page 5 SSID root: XXXXXXX Wi-Fi password: XXXXXXXXXXXXXXXXXX On the bottom of the CGA4233 you can find a label with the following information: • The SSID root (for example: 1A2B3C4) The network name of both the 2.4 GHz and the 5 GHz access point will end with this value (for example: TCH1A2B3C4).
- Page 6 3 The CGA4233 web interface appears. 8.2. How to restart or reset your CGA4233 If at some point you want to restart or reset your CGA4233, proceed as follows: 1 Make sure that your CGA4233 is turned on. 2 If you want to: ƒ...
- Page 7 8.3. LED overview On your CGA4233, you can find a number of LEDs that allow you to check the state of the services offered by your CGA4233. Colour State Description Phone Green Solid Telephony service is up. Blinking Incoming call or ongoing call.
- Page 8 *37824400* 37824400 TECHNICOLOR 1-5 rue Jeanne d’ A rc Copyright 2017 Technicolor. All rights reserved. DMS3‑QIG‑25‑521 v2.0. 92130 Issy-les-Moulineaux All tradenames referenced are service marks, trademarks, or registered France trademarks of their respective companies. Specifications subject to change www.technicolor.com without notice.
Need help?
Do you have a question about the CGA4233 and is the answer not in the manual?
Questions and answers

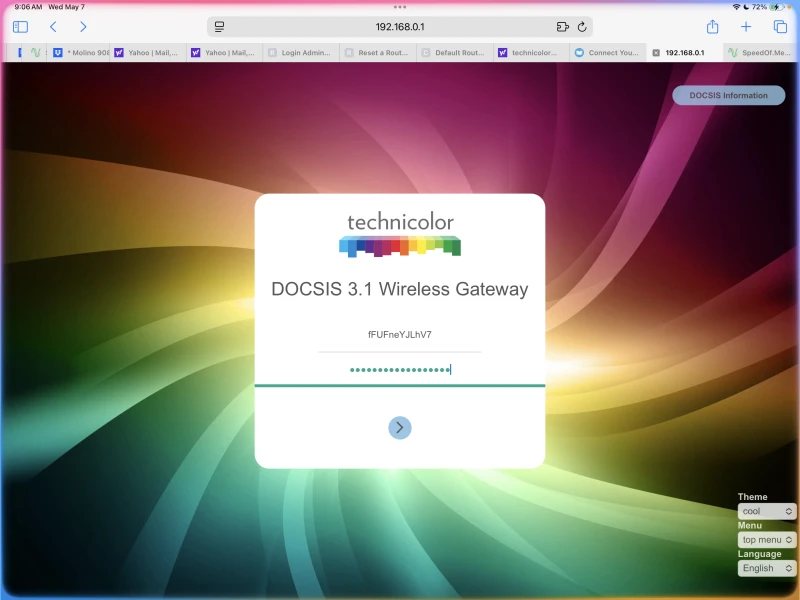

I can not log on to my router using the login/password located on the bottom of my device. 192.168.0.1 even after factory reset. technicolor cga4233tlv2
@Fred J added an image
If you cannot log in to your Technicolor CGA4233 router using the default username and password after a factory reset, do the following:
1. Make sure your device is connected to the router (wired or wirelessly).
2. Open a browser and go to http://192.168.0.1.
3. For the username, enter: user.
4. For the password, enter the user password printed on the bottom label of the router.
If this still does not work, ensure the reset was done correctly:
- Hold the recessed Reset button for at least 10 seconds with a pen or paperclip.
- Wait for the router to fully restart and try logging in again using the steps above.
This answer is automatically generated

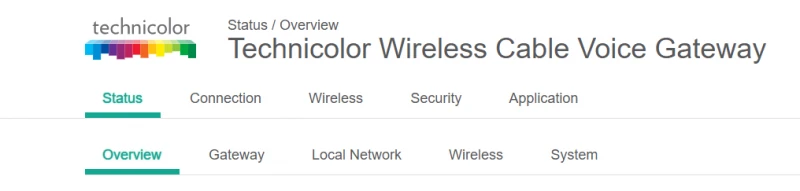

I cannot see administrator tab on settings for modem cga4233
You may not see the administrator tab in the Technicolor CGA4233 settings because you are logged in with the default user credentials ("user" as username and the password printed on the bottom label). This account may have limited access and not show administrator-level settings. To access the administrator tab, you likely need to log in with the administrator username and password (e.g., "admin"/"admin" or as configured via bcm2cfg).
This answer is automatically generated
How do I change the dns on my new CGA4233
