FlowVis® - INSTRUCTION MANUAL
1.0

DESCRIPTION

FlowVis® is a revolutionary Patent Pending product that converts a standard Check
Valve into a Flow Meter and Check Valve.
The product is currently available in two formats:
a)
Retrofi t to install to an existing Jandy® (7305) 2" by 21/2" Check Valve body -
FV-J.
b)
A complete Check Valve body assembled with FlowVis® - FV-C.
c)
A complete Check Valve body assembled with FlowVis® and a safety fl apper, as
described in section 6 of this manual.
The Retrofi t kit comprises a fully assembled FlowVis® lid, calibrated spring, pin, indicator
arm, 'O'-ring and calibrated scale. Installation simply requires the removal of the eight
screws securing the existing lid, installing the new 'O'-ring and securing the FlowVis®
with the original eight screws.
2.0

CONCEPT

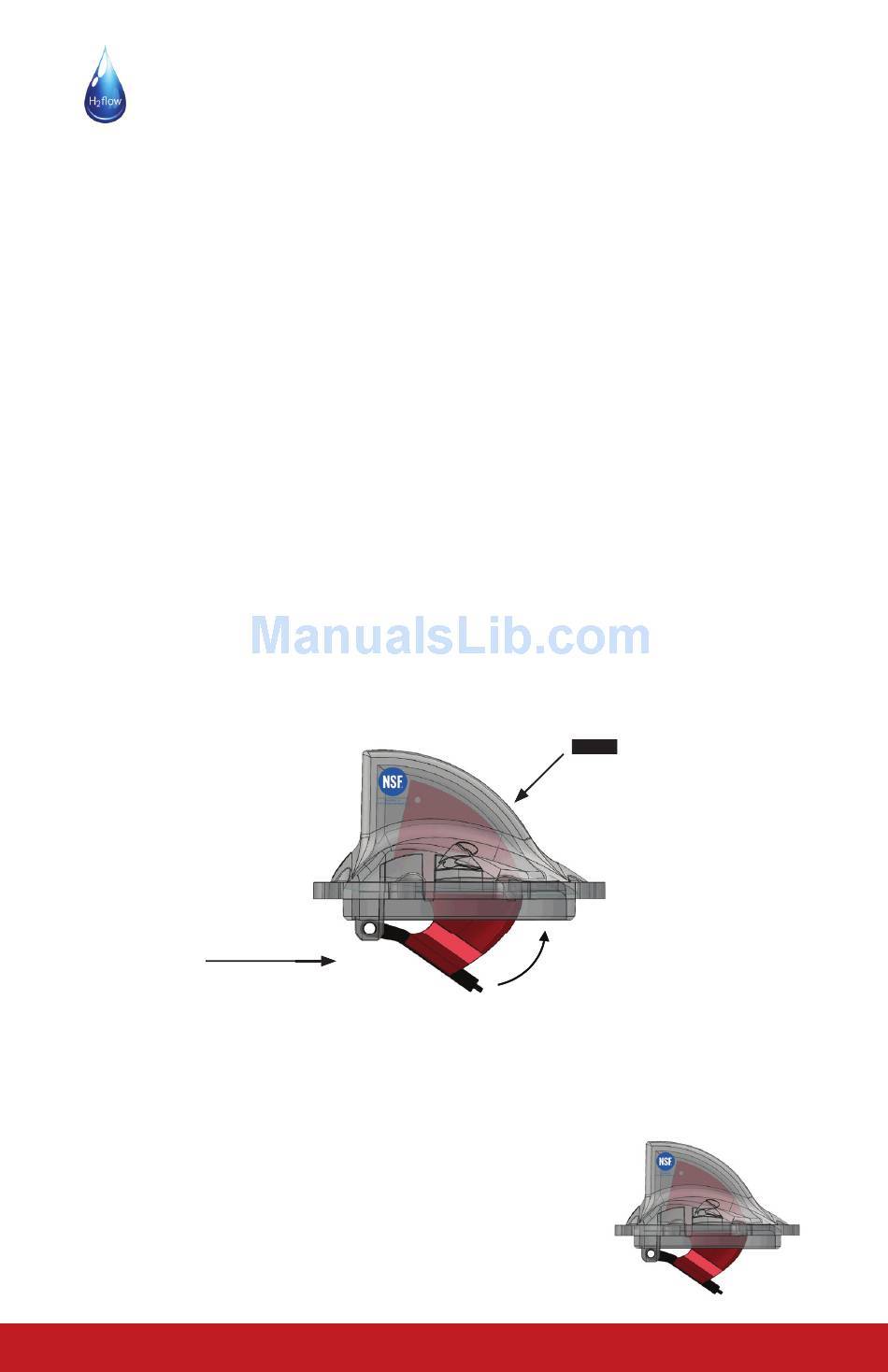

As fl ow increases, the check valve fl apper extends towards its fully open position. The
angular position of the fl apper is determined by the fl ow through the valve body. A
calibrated scale on the valve lid provides an accurate reading of fl ow.
Flow
3.0
NSF 50
FlowVis® model FV-C has been tested and certifi ed as a Flow Meter to NSF 50.
4.0
NSF 50 Mark
Models certifi ed to NSF 50 will comprise the Mark as shown
in the image to the right.
Calibrated Scale
Calibrated Scale
Page 3
