SMC Networks EX500-IE1 Installation & Maintenance Manual page 2

EX500-TFI70GB-A

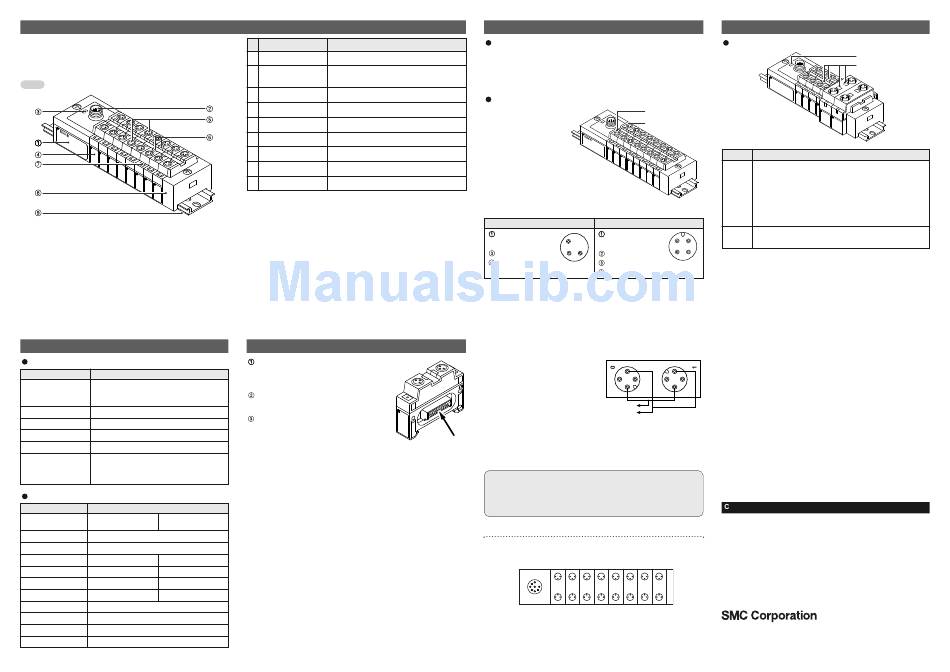

Names and Functions of individual parts
The Input unit manifold consists of Input unit, input block (s), end block
and DIN rail.
The input block up to 8 can be connected ( 16 points ).
Any combination of input blocks ( for M8 connector, M12 connector and
8-point-integrated type ) is acceptable.
Note Do not mix sensor input specifications ( PNP and NPN ).
Figure shows the configuration when only input blocks for M8 connector
are connected.
Specification
Specifications for Input unit
Item Specification
Current source type input block ( PNP input
Connected block block ) or Current sink type input block ( NPN
input block )
Connected block stations Max. 8 blocks
Supply voltage for block 24VDC
Supply current for block Max. 0.65A
Current consumption 100mA or less ( at rated voltage )
Operates at 1A Typ. ( Cuts power supply. )
Can be reset by returning the power after
Short circuit protection
cutting the power supply to input and control
section of GW unit.
Specifications for input block
Item Specification
Current source type Current sink type
Applicable sensor
( PNP output ) ( NPN output )
No. of input points 2 points/8 points ( for M8 connector only )
Rated voltage 24VDC
Logical "1" input voltage 15V - 26.4V 0V - 8V
Logical "0" input voltage 0V - 5V 19V - 26.4V
Logical "1" input current 5mA Typ. -5mA Typ.
Logical "0" input current 1.5mA -1.5mA
Input delay time 1msec. or less
Indicator LED Green LED
Insulation N/A
Supply current to sensor Max. 480mA/Input unit manifold
Application
No. Part name
1 Input unit Unit to communicate with GW unit or SI unit.
To be connected with branch cables from GW
Communication
2
unit or SI unit ( branch cable with M12
connector
connector ) ( Note1 )
3 Power LED Indicates the power supply status. ( Note2 )
4 Input block Unit for sensor signal input.
5 Sensor connector Connects with sensor. ( Note1 )
6 Indicator LED Indicates sensor signal status. ( Note2 )
7 Marker To be used for writing input No. etc.
8 End block Composes the end of Input unit manifold.
9 DIN rail To be mounted with Input unit manifold.
Note1: For wiring method, refer to subsection "Wiring" in this manual.
Note2: For display, refer to "Display" in this manual.
Installation ( unit : mm )
Connect each connector of Input unit, input
blocks, and end block
( portion indicated by arrow in the figure to the
right ).
Holding with hands so that there will be no gap
between blocks, place the jointed unit and
blocks on DIN rail.
Tighten the bolts of Input unit and end block to
secure the jointed unit and blocks to DIN rail.
Be sure to tighten the bolts by proper
tightening torque.
( Tightening torque: 0.6Nm )
Wiring
Branch wiring
For wiring method, refer to subsection "Wiring" in the Instruction Manual of
EX500.
To input devices such as sensor, the power is supplied through the branch
wiring ( branch cable with M12 connector ). Therefore, there is no need to
supply the power to them individually.
Sensor wiring
Connect sensors to the
Sensor connector "1"
sensor connectors of input
Sensor connector "0"
block.
Pin layout of sensor connector
M8 connector ( 3-pin socket ) M12 connector ( 4-pin socket )
Power supply Power supply
1
( 24VDC ) ( 24VDC )
Power supply ( 0V ) ( Input ) ( Note )
4 3
Input Power supply ( 0V )
Input
Note: Internal wiring of M12 input block and key position for mounting sensor connector.
• No. 2 pins of M12 input block
connectors are wired to each other's
Input "0" (n) side Input "1" (n+1) side
sensor signal input pins ( No. 4 pins )
4
internally.
key
• This wiring enables direct input of
3 1 1
signals from two points combined into
one cable through concentric
key
2
connector etc.
• When connecting sensors, confirm the Input "1" (n+1)
specification of output signal carefully. Input "0" (n)
Otherwise malfunction can result.
M12 Block
• The key position for mounting sensor
connector is as shown to the right.
Consider this key position when
selecting sensor.
NOTE
Mount a waterproof cap on each unused connector of Input unit. The
proper use of waterproof cap can achieve IP65 Enclosure. The waterproof
caps are delivered together with each input block as accessories.
( Tightening torque: 0.05Nm for M8 and 0.1Nm for M12 )
Correspondence between input number and input block
Input block up to 8 can be connected ( 16 points ).
Input numbers are 0 - 15 from Input unit side.
Unità d'entrata 0 2 4 6 8 10 12 14
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
1 3 5 7 9 11 13 15
Display
Settings for display
Display Description
Power Lights on: Power for input and controlling GW is supplied.
LED Flashing: Under short circuit protection ( abnormal status ).
As the short circuit protective function is operating,
the power is not supplied.
To cancel flashing, turn off and return the power to
GW unit.
Lights off: Power for input and controlling GW is not supplied.
Indicator Lights on: Sensor signal input ON ( logical "1" )
1 2
LED Lights off: Sensor signal input OFF ( logical "0" )
4 3
2
3
4
