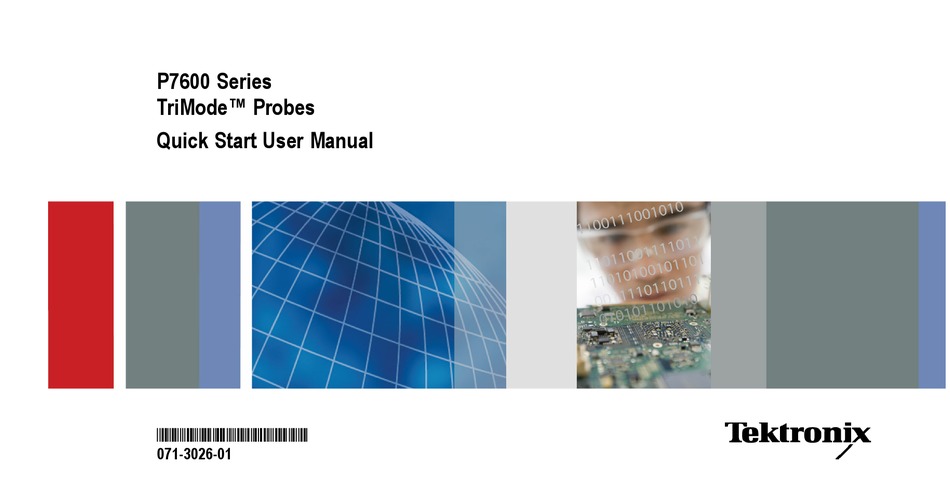

P7600 Series
TriMode™ Probes
ZZZ
Quick Start User Manual
*P071302601*
071-3026-01

Advertisement

Table of Contents
loading

Related Manuals for Tektronix P7630

Summary of Contents for Tektronix P7630

  • Page 1 P7600 Series TriMode™ Probes Quick Start User Manual *P071302601* 071-3026-01...
  • Page 3 P7600 Series TriMode™ Probes Quick Start User Manual www.tektronix.com 071-3026-01...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

  • Page 7: Table Of Contents

    Table of Contents Table of Contents General safety summary ........................Environmental Considerations ..
  • Page 8 Table of Contents Connecting to a Circuit Board ..................... . . Accessories and Options .

  • Page 9: General Safety Summary

    General safety summary General safety summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures. To avoid fire or personal injury Connect and disconnect properly.
  • Page 10 General safety summary Terms in this manual These terms may appear in this manual: Warning statements identify conditions or practices that could result in injury or loss of life. WARNING. Caution statements identify conditions or practices that could result in damage to this product or other property. CAUTION.

  • Page 11: Environmental Considerations

    The symbol shown below indicates that this product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). P7600 Series TriMode Probes Quick Start User Manual...
  • Page 12 Environmental Considerations Restriction of Hazardous Substances This product is classified as an industrial monitoring and control instrument accessory, and is not required to comply with the substance restrictions of the recast RoHS Directive 2011/65/EU until July 22, 2017. P7600 Series TriMode Probes Quick Start User Manual...

  • Page 13: Preface

    This manual describes the installation and operation of the P7600 Series TriMode Probes. Basic probe operations and concepts are presented in this manual. All documents listed below are located on the Documentation CD that came with your product. You can also access the Tektronix Web site for these documents (www.tektronix.com/manuals). Probe Models The probe models covered in the P7600 Series TriMode Probes documentation are listed below.
  • Page 14 Preface viii P7600 Series TriMode Probes Quick Start User Manual...

  • Page 15: Key Features

    Key Features Key Features The P7600 Series TriMode Probes allow you to take differential, single-ended, and common mode measurements with one probe connection. Key features include: Revolutionary TriMode operation TekConnect interface >33 GHz Bandwidth (typical, P7633) 14 ps Rise time 10-90% (typical, P7633) <1.1 mV System noise with P76CA-xxx adapters...

  • Page 16: Operating Considerations

    Operating Considerations Operating Considerations Table 1: P7600 Series TriMode Probes Characteristic Description P76CA-xxx adapters P76TA adapter Input voltage Dynamic range 1.2 V (single-ended) 6.0 V (single-ended) 2.0 V (differential) 10.0 V (differential) Input voltage range +4.0 V, –4.0 V +5.0 V, –5.0 V (DC + peak AC, input referenced to ground) Maximum nondestructive voltage...

  • Page 17: Installation

    Installation Installation Before you connect the probe to your instrument, read the Overview below to understand the sequence of events necessary to properly install the probe and adapters. CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at a static-approved workstation when you handle the probe.

  • Page 18: Connect Trimode Adapters To The Probe Body

    Installation Connect TriMode Adapters to the Probe Body TriMode adapters are required to complete the connection between the probe and your circuit, and are briefly described below. The adapters connect the P7600 Series probes to your circuit through 2.92 mm or SMP cables, or through P7500 Series solder tips, such as the P75PST Performance Solder Tip.
  • Page 19 Installation Connect the Adapters All of the adapters mate to the P7600 Series probe head through a keyed, multi-pin connector that transfers the adapter information to the oscilloscope for automatic identification. Connect them as follows: 1. Orient the adapter to the probe body with the A and B inputs on top, as shown.

  • Page 20: Connect To The Host Instrument

    Installation Connect to the Host Instrument NOTE. Your TekConnect instrument may require a firmware upgrade to support full functionality of the P7600 Series probes. Before you connect the probe, check the version requirements. (See page 62, Host Instrument Firmware.) 1. Slide the probe into the TekConnect receptacle.
  • Page 21 Installation Probe Power-On After the initial connection to the oscilloscope is made: 1. The probe briefly lights all LEDs during a self-test, and then the A – B Input Mode LED remains lit. 2. The probe transfers data to the host instrument, and a message displays on the instrument as the transfer occurs.

  • Page 22: Control Box Controls And Indicators

    Installation Control Box Controls and Indicators Input Mode Button and LEDs Press the Input Mode button to select one of the four TriMode measurements. The modes cycle in the following sequence: A – B (for differential signal measurement) A – GND (for A input single-ended measurement) B –...
  • Page 23 Installation Overload LED The Overload LED glows amber under the following conditions when using the P76CA-xxx adapters: • the input voltage on either the A or B input exceeds ±4.5 V • the termination voltage driver current on the A or B input exceeds 50 mA (See page 23, Termination Voltage.) The Overload LED clears when the input signal is removed.
  • Page 24 Installation TriMode Probing The TriMode feature allows you to view two single-ended signals and the resultant differential waveform and common-mode voltage without moving the probe connection. Press the Input Mode button to cycle through the waveform views. This example shows a typical HDMI signal (one half-lane) on the A and B inputs.

  • Page 25: Functional Check And Calibration

    Table 2: Required Equipment Item description Performance requirement Recommended example Oscilloscope TekConnect Interface Tektronix DPO73304DX or DPO72504DX Probe adapter P76CA-xxx or P76TA probe P76CA-292C (connects directly to oscilloscope FAST EDGE connector) adapter P76CA-292 (requires a coaxial cable) P76CA-SMP (requires an SMP-to-SMA adapter) P76TA (requires a coaxial cable and the calibration fixture listed below)
  • Page 26 Functional Check and Calibration Test Setup 1. Connect the probe to any channel (1–4) of the oscilloscope. 2. Set the oscilloscope to display the channel. 3. Connect one of the probe inputs to the FAST EDGE output of the oscilloscope, using the P76CA-292C adapter.
  • Page 27 Functional Check and Calibration Test Procedure 6. Set the probe Input Mode to A–B. 7. Adjust the oscilloscope to trigger on and display a stable waveform (or press the Autoset button). If you do not see a waveform, check NOTE. the connection at the probe body.
  • Page 28 Functional Check and Calibration 9. Cycle the Input Mode button through the remaining selections and compare the displayed waveforms to the waveform that you measured in step 8. A – B (the waveform from step 8) A – GND (same amplitude and polarity as measured in step 8) B –...

  • Page 29: Trimode Probe Dc Calibration

    fixture P76CA-292 and two SMA cables P76CA-SMP P76TA Coaxial cable BNC, 50Ω, male-to-male 012-0208-xx Nine-digit part numbers (xxx-xxxx-xx) are Tektronix part numbers. Standard accessory included with probe. (See page 17.) P7600 Series TriMode Probes Quick Start User Manual...
  • Page 30 Functional Check and Calibration Check the Instrument Calibration Status The Calibration Status of the instrument Signal Path Compensation test must be Pass for the probe calibration routine to run. 1. From the Utilities menu, select Instrument Calibration. 2. In the Calibration box, check that the Status field is Pass.
  • Page 31 Functional Check and Calibration DC Calibration Fixture The DC calibration fixture is shipped with the probe and is used to automatically check and adjust the probe gain and offset to the connected oscilloscope channel. 1. The fixture is powered and automated by a TekConnect control box adapter that connects to the oscilloscope Aux In connector.
  • Page 32 Functional Check and Calibration Calibrate the Probe You must calibrate the probe once on each oscilloscope channel that you intend to use. The probe calibration data is then stored for future use on those channels. 1. Connect the probe to any channel (1–4) of the oscilloscope.
  • Page 33 Functional Check and Calibration 7. In the menu bar, select Vertical and then select Probe Cal. The Probe Setup dialog box appears. 8. Select the Channel tab for the channel that the probe is plugged into. 9. Select Compensate Probe. The probe calibration routine runs, optimizing the probe to the oscilloscope for each input mode setting.

  • Page 34: Basic Operation

    Basic Operation Basic Operation This section includes information about the probe input limits, using the probe controls, and procedures for connecting the probe to your circuit. A simplified input model of the probe is shown below to illustrate the probe Offset Voltage and Termination Voltage controls. (The A and B input voltages shown represent the probe when used with the coaxial adapters;...
  • Page 35 Basic Operation Using the Offset and Termination Voltages The Offset Voltage nulls out the DC bias component of an input signal, allowing the (generally smaller) AC component of the signal to be displayed. The size of the probe input dynamic range depends on the probe tip that you are using, as shown in the diagrams, and may also be dependent on the input mode selected.
  • Page 36 Basic Operation Offset Voltage. The Offset Voltage adjusts the probe input dynamic range within the larger probe input operating range, as shown in the diagrams below. The probe input dynamic range is the region where an input signal is within the linear operating region of the probe.
  • Page 37 Basic Operation Termination Voltage. The termination voltage adjusts the effective probe DC loading of the 50 ohm input termination. The probe A and B Termination Voltages are set and stored independently for each of the four input modes. When P76CA-xxx coaxial adapters are used, the termination voltage can be adjusted over a limited operating range before reaching an overload condition.
  • Page 38 Basic Operation Figure 3: Termination voltage operating range for P76CA-xxx coaxial adapters P7600 Series TriMode Probes Quick Start User Manual...

  • Page 39: Probe Setup Screen

    Basic Operation Probe Setup Screen Use the Probe Setup screen to adjust the probe input settings for the measurement you are taking. (See Figure 4.) To display the Probe Setup screen, select Probe Cal from the oscilloscope Vertical menu. The Probe Setup screen has two sections to configure the inputs;...
  • Page 40 Basic Operation Selecting the TriMode Input Mode The Input Mode button on the probe toggles the internal probe input selector switches between the four input mode selections. The input mode can also be selected from the drop-down menu in the Probe Setup screen. This TriMode feature allows full characterization of a differential signal from a single connection.
  • Page 41 Basic Operation Selecting the Offset Voltage You can set both the offset and termination voltages to levels that are unique for each input mode. For reference, the TriMode Input Mode field displays the active input mode in the Offset area of the Probe Setup screen. The input mode can be selected from the drop-down menu next to the input field, or from the Input Mode button on the probe control box.
  • Page 42 Basic Operation Offset Voltage Set Buttons The probe A and B signal inputs are sensed, monitored, and averaged by probe internal circuitry and the sensed values are used by the automatic Offset Voltage Set control buttons. Offsets A, B Individually. Click this Set button to set the A Offset to the average value of the A signal and the B Offset to the average...
  • Page 43 Basic Operation below the average signal level. The B signal will appear 1 volt above and below the average signal level. The A signal is offset by +0.5 volt and the B signal is offset by +2 volts. Using the signal example from above, with a signal that varies from 0 to 1 volt on input A, and another from 1 to 3 volts on input B, clicking the Offsets A, B to Mean button will offset both signals by 1.25 volts (0.5 V + 2 V/2).
  • Page 44 Basic Operation Selecting the Termination Voltage The probe A and B Termination Voltages are set and stored independently for each of the four input modes. A drop-down menu selection control for the Input Mode is available in the Offset selection area of the Probe Setup screen. The Input Mode selection control box also displays the selected Input Mode to which the display of stored Termination Voltages is associated.
  • Page 45 Basic Operation Probe Adapter and Tip Information When the probe is first connected to the oscilloscope channel, the oscilloscope queries the probe for status information, including the probe type and serial number, and the model number of the adapter that is connected to the probe head. However, solder tips that are attached to the P76TA adapter must be identified manually.
  • Page 46 Basic Operation Select button. Click on this button to display the Probe Tip Selection screen. (See page 33, Selecting the Probe Tip.) Next, click on the tip that you have connected to the P76TA adapter, and then click OK. Controls. Click on this button to display the Probe Controls screen.

  • Page 47: Selecting The Probe Tip

    Basic Operation Selecting the Probe Tip Use the Probe Tip Selection screen shown below to identify and select the solder tip that you are using with the P76TA adapter. To display the Probe Tip Selection screen, click the Select button in the Probe Setup screen. (See page 25, Probe Setup Screen.) The P76TA adapter accepts the P7500 Series TriMode solder tips shown in the screen below.

  • Page 48: Improving Measurement Accuracy

    Basic Operation Improving Measurement Accuracy This section covers some of the features and characteristics of the probe that can affect the accuracy of your measurements, and some steps that you can take to improve the performance of the probe. Temperature Compensation The P7600 Series probes employ temperature compensation to optimize measurement accuracy.
  • Page 49 Basic Operation The Effect of DUT Source Impedance on Measurement Accuracy The input impedance of the combined P76TA adapter and P7500 Series solder tip differs from that of the P76CA-xxx coaxial adapters. When the P76TA adapter is used, this impedance difference affects the probe amplifier gain and must be accounted for by including the DUT (Device Under Test) source impedance when calculating circuit loading effects.
  • Page 50 Basic Operation Figure 6: Coaxial adapter measurement configuration Solder Tip Adapter Measurement Configuration In many of the high-frequency signaling standards that the P7600 Series probes are designed for, a 50 ohm termination at the transmitter is in parallel with another 50 ohm termination at the end of the transmission line path, effectively making a 25 ohm signal source impedance.
  • Page 51 Basic Operation Figure 7: Solder tip adapter measurement configuration and equivalent model P7600 Series TriMode Probes Quick Start User Manual...
  • Page 52 Basic Operation For systems with source impedances not equal to 25 ohms, it may be necessary to adjust the oscilloscope EXT ATTEN scale factor and the offset voltage to optimize the measurement accuracy. You may also need to adjust the probe termination voltage control to null out the DC loading effect of the probe.

  • Page 53: Connecting To A Circuit Board

    Basic Operation Connecting to a Circuit Board TriMode adapters are necessary to complete the connection between the P7600 Series probes and your circuit. The adapters are available as optional accessories and provide several connection options. You can use coaxial adapters with SMP or 2.92 mm connectors, or the P76TA adapter, which allows you to use P7500 Series solder tips such as the P75PST Performance Solder Tip.
  • Page 54 Basic Operation P76CA-292 Use this adapter with high quality, skew-matched cables that have male 2.92 mm connectors at the probe end. The other end of the cables can be customized with connectors that mate to your circuit. P76CA-292C This adapter includes a pair of skew-matched, 6 in (15.2 cm) cables with male 2.92 mm connectors.
  • Page 55 Basic Operation P76TA Adapter 1. Align the red cable band to the red A input and then push the cable into the probe adapter until you feel a click. 2. The connector is fully seated when it is flush with the edge of the adapter. The P76TA adapter has CAUTION.
  • Page 56 Basic Operation 3. To remove the tip, pull the cable tab straight out from the probe adapter. CAUTION. Pull only on the cable tab when removing the tip. You may damage the tip or adapter if you pull on the cables. Soldering instructions for the tips are described later in this section.
  • Page 57 Basic Operation P75PST TriMode Performance Solder Tip P75TLRST TriMode Long Reach Solder Tip The Performance and Long Reach solder tips enable you to make full signal characterizations from a multi-point soldered connection. The P75PST tip is optimized for ≥25 GHz performance.
  • Page 58 Basic Operation The dimensions of the solder tip connections are provided here for reference. You can also design the tip footprint into your circuit board layout for easier test connections. To connect the probe tip to your circuit, order the optional wire replacement kit. (See page 54, Optional Accessories.) The solder ramps that are supplied with the P76TA adapter are recommended as an aid to...
  • Page 59 Basic Operation Connect the P75PST or P75TLRST Solder Tip 1. Identify a location where the tip can be placed, soldered, and secured to your circuit. NOTE. You can work with long wires (~1 inch), but keep the finished wire lengths of the signal and ground connections as short as possible.
  • Page 60 Basic Operation 4. Align the bottom of the tip to the notch in the ramp as shown, and then secure the tip to the ramp with glue or tape. (Solder ramps are included with the P76TA adapter or a kit of 25 can be ordered separately.) The notch in the ramp helps you to position the tip as close as possible (<0.032 in./0.8 mm) to the circuit connections.
  • Page 61 Basic Operation Secure the Tip 10. Push the end of the tip into the probe adapter until it seats in the probe adapter. 11. For a secure mechanical connection, use tape or hot glue to secure the tip to your circuit.
  • Page 62 Basic Operation Notes on Using the Tips. Use the following precautions when you solder the tips: Use a low-wattage, temperature-controlled soldering iron and a small mass soldering iron tip. The soldering iron temperature should be set as low as possible, while still providing a reliable solder joint. Use SAC305 solder (included with the optional wire replacement kit) to attach the tip wires to the circuit under test.
  • Page 63 Basic Operation P76CA-BTI292 Coax Adapter The P76CA-BTI292 Coax Adapter allows you to convert the output of the P76TA or P76CA adapters to a pair of 2.92 mm connectors. Using this adapter, the distance between the circuit under test and the oscilloscope, switching matrix or other equipment can be extended.

  • Page 64: Accessories And Options

    Accessories and Options Accessories and Options You can reorder the following replacement parts and accessories. Note that in some cases, the reorder quantities may differ from those that ship with the probe. Standard Accessories The following accessories are shipped with the P7600 Series probes. If no quantity is listed, only one of that item is shipped. Reorder part number Standard accessory and quantity...
  • Page 65 Accessories and Options Reorder part number Standard accessory and quantity Description — Calibration certificate. A certificate of traceable calibration is provided with every probe. — Data calibration report. The Data Calibration Report lists the manufacturing test results of your probe at the time of shipment and is included with every probe.
  • Page 66 Accessories and Options Reorder part number Standard accessory and quantity Description 067-3259-xx DC probe calibration fixture. Use this fixture to perform a functional check and a DC calibration with the host instrument. 012-0208-xx 50 Ω BNC-M to BNC-M cable assembly, 10 in. To perform a probe calibration, use this cable to connect the DC Calibration fixture to the DC Probe Cal output connector on the host instrument.
  • Page 67 Accessories and Options Reorder part number Standard accessory and quantity Description 129-2781-xx Hex wrench. Use this 2 mm hex wrench to secure the TriMode adapters to the probe body. 016-0633-xx Color band kit. This kit includes two sets of five colored pairs. When you are using more than one probe, the bands enable (Package of five colored you to visually match the probes to the channels that they are...

  • Page 68: Optional Accessories

    Accessories and Options Optional Accessories Optional accessory Part number Description P76CA-BTI292 P76CA-BTI292 Coax Adapter. Use this adapter to convert the P7600 custom tip interface on the optional P76TA or P76CA adapters (shown below), to a pair of 2.92 mm connectors. Using this adapter, the distance between the circuit under test and the oscilloscope can be extended.
  • Page 69 Accessories and Options Optional accessory Part number Description P76CA-292C P76CA-292C Adapter. This adapter includes a pair of skew-matched, 6 in (15.2 cm) cables with male 2.92 mm connectors. P76CA-SMP P76CA-SMP Adapter. This adapter includes a pair of skew-matched, 6 in (15.2 cm) cables with female SMP connectors.
  • Page 70 Accessories and Options Optional accessory Part number Description P75PST P7500 TriMode Performance Solder Tip. This tip provides a soldered, multi-point connection that supports full TriMode measurement capabilities at full probe bandwidth. P75TLRST P7500 TriMode Long Reach Solder Tip. This tip provides a soldered, multi-point connection that supports full TriMode measurement capabilities.
  • Page 71 Accessories and Options Optional accessory Part number Description 020-2936-xx TriMode Resistor Solder Tip. This tip provides solder connection points at 100 Ω resistors that extend about 0.2 in (5 mm) from the solder tip board. The resistors can withstand more solder cycles than the P75PST and P75TLRST solder tips, and can be replaced if they break.
  • Page 72 Accessories and Options Optional accessory Part number Description 006-8237-xx Adhesive tip tape. Use the double-sided adhesive tip tape to (Strip of 10) secure the solder tip assembly to your circuit board. 020-3118-xx Solder tip ramp kit. (package of 25) These ramps help you to position the solder tips on your circuit.
  • Page 73 Accessories and Options Optional accessory Part number Description 020-3105-xx Replacement SMPM bullet contacts (P7600 Series probe (Package of 4) head). To maintain the best signal integrity, replace the bullets in the probe head after 200 insertion cycles. 003-1934-xx SMPM bullet removal tool (P7600 Series head). This tool allows you to safely remove and install the bullet contacts from the probe head.
  • Page 74 Accessories and Options Optional accessory Part number Description 003-1896-xx G3PO bullet removal tool (P76TA adapter). This tool allows you to safely remove and install the bullet contacts in the adapter. 067-2431-xx Deskew fixture. Use this fixture to time-align the probe to other probes connected to your measurement system.

  • Page 75: Options

    Accessories and Options Options Option C3. Calibration Service 3 years Option C5. Calibration Service 5 years Option D3. Calibration Data Report, 3 years (with Option C3) Option D5. Calibration Data Report, 5 years (with Option C5) Option G3. Gold Plan 3 years Option G5.

  • Page 76: Maintenance

    V 6.8 or higher To check the firmware version on your instrument, from the menu bar, click Help/About TekScope. If you need to upgrade your instrument firmware, go to www.tektronix.com/software to download the latest firmware. P7600 Series TriMode Probes Quick Start User Manual...

  • Page 77: Error Conditions

    If one of the Input Mode LEDs does not remain lit after you connect the probe, an internal probe diagnostic fault exists. Disconnect and reconnect the probe to restart the power-on diagnostic sequence. If the symptoms continue, connect the probe to another oscilloscope channel or oscilloscope. If the symptoms remain, the probe must be returned to Tektronix for repair. Signal Display If the probe is connected to an active signal source and you do not see the signal displayed on the oscilloscope: Check the probe adapter connection at the probe body.
  • Page 78 Maintenance Measurement Errors If you suspect that your measurement may not be accurate, and you are using the P76TA adapter: Check that the solder tip signal and ground connections are correct and intact. Check that the solder tip that you are using on the adapter is what is selected in the Probe Tip Selection screen. (See page 33, Selecting the Probe Tip.) P7600 Series TriMode Probes Quick Start User Manual...

  • Page 79: User-Replaceable Parts

    Maintenance User-Replaceable Parts This section describes the components that are replaceable in the P7600 Series probe head and the P76TA adapter. Bullet Contacts The input sockets in the P7600 Series probe head and in the P76TA adapter are protected by replaceable bullet contacts. The bullet contacts protect the input sockets by absorbing the wear from repeated connect/disconnect cycles of the accessory...
  • Page 80 Maintenance Removing the Bullets Follow these steps to remove the bullets by using the removal tool: 1. Squeeze the tool plunger to extend the holder tangs. 2. Insert the tool into the probe head or adapter so that the holder tangs surround one of the bullets.
  • Page 81 Maintenance Inspecting the Bullets and Connectors Use a microscope to closely examine the bullets and connectors. Use the illustrations to determine if the contacts appear worn or broken, and always replace them in pairs. 1. Good 2. Chipped or bent ground contacts (outer conductor) 3.
  • Page 82 Maintenance Installing the Bullets 1. Squeeze the tool plunger to extend the holder tangs. 2. Insert a new bullet into the tool so that the holder tangs surround the bullet. 3. Release the plunger to secure the holder tangs on the bullet. 4.

  • Page 83: Handling The Probe

    Maintenance Handling the Probe The P7600 Series probes are precision high-frequency devices; exercise care when you use and store the probe. The probe and cable are susceptible to damage caused by careless use. Always handle the probe at the control box and probe body to avoid undue physical strain to the probe cable, such as kinking, excessive bending, or pulling.

  • Page 84: Cleaning The Probe

    Maintenance Cleaning the Probe CAUTION. To prevent damage to the probe, do not expose it to sprays, liquids, or solvents. Avoid getting moisture inside the probe during exterior cleaning. Do not use chemical cleaning agents; they may damage the probe. Avoid using chemicals that contain benzine, benzene, toluene, xylene, acetone, or similar solvents.

  • Page 85: Returning The Probe For Servicing

    Maintenance Returning the Probe for Servicing If your probe requires servicing, you must return it to Tektronix. If the original packaging is unfit for use or not available, use the following packaging guidelines: Preparation for Shipment 1. Use a corrugated cardboard shipping...
  • Page 86 Maintenance P7600 Series TriMode Probes Quick Start User Manual...
