Tektronix P6136 Instruction Manual

Tektronix P6136 Instruction Manual

P6136 10x passive probe for 2400 series oscilloscopes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

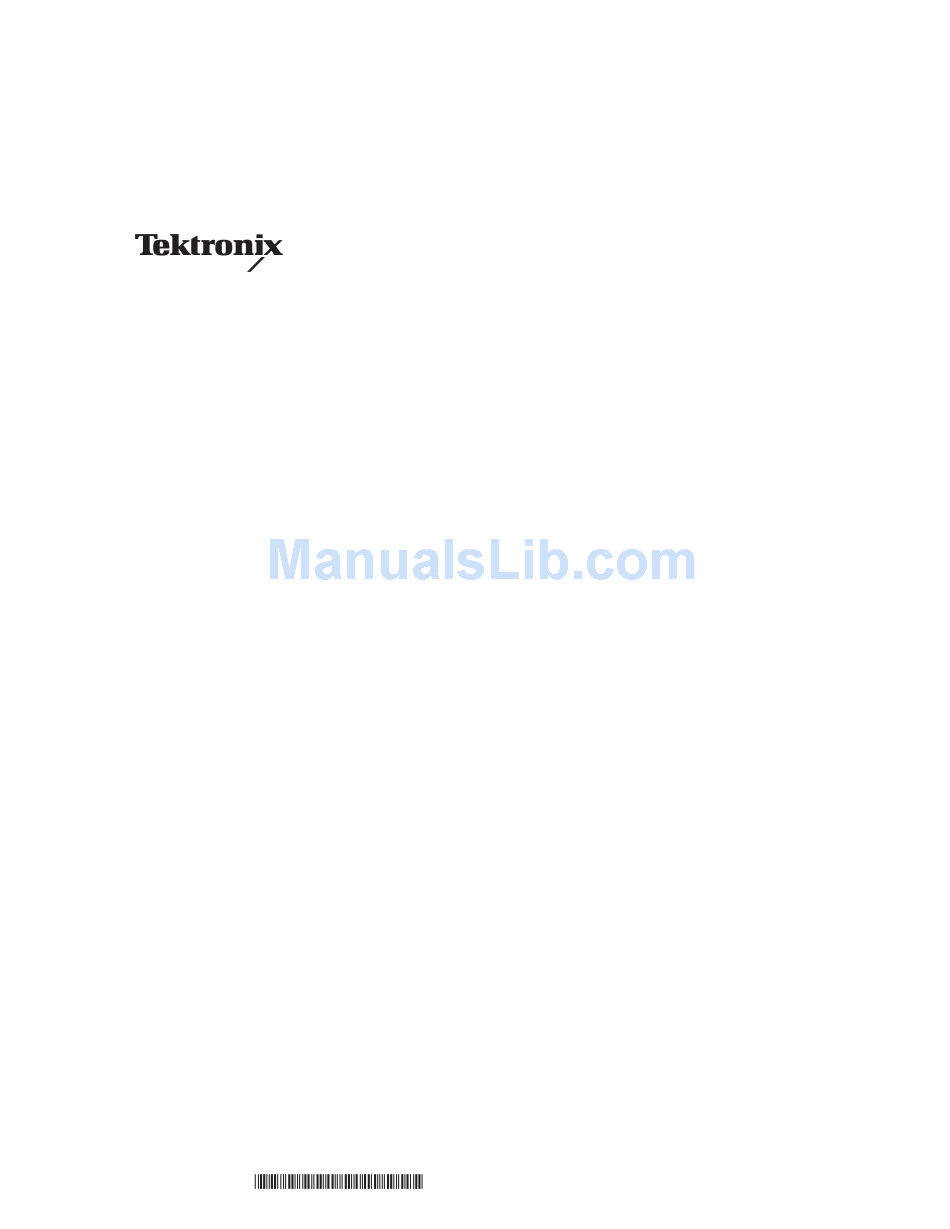

Instruction Manual

P6136
10X Passive Probe
for 2400 Series Oscilloscopes
070-6025-04
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
070602504

Advertisement

Table of Contents
loading

Related Manuals for Tektronix P6136

Summary of Contents for Tektronix P6136

  • Page 1: Instruction Manual

    Instruction Manual P6136 10X Passive Probe for 2400 Series Oscilloscopes 070-6025-04 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
  • Page 2 Copyright Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077-1000...
  • Page 3 Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located.

  • Page 4: Contacting Tektronix

    6:00 a.m. – 5:00 p.m. Pacific time Or contact us by e-mail: tm_app_supp@tek.com For product support outside of North America, contact your local Tektronix distributor or sales office. Service Tektronix offers extended warranty and calibration programs as options on many support products.

  • Page 5: General Safety Summary

    Keep Product Surfaces Clean and Dry. Symbols and Terms Terms in this Manual. The following terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. P6136 Instruction Manual...

  • Page 6: Service Safety Summary

    Safety Summary and the General Safety Summary before performing any service procedures. Do Not Service Alone. Do not perform internal service or adjustments to this product unless another person capable of rendering first aid and resuscitation is present. P6136 Instruction Manual...

  • Page 7: Operating Basics

    Operating Basics The P6136 probe is a 350 MHz, 10X, 1.3 meter, passive voltage probe designed specifically for use with Tektronix 2400 Series oscilloscopes having bandwidths greater than 150 MHz. The P6136 comes standard with the Tektronix subminia- ture-size probe tip/hybrid assembly and is fully compatible with the Tektronix Subminiature family of accessories.

  • Page 8: Inductive Effects Of Probe Grounding

    This greatly degrades rise time, bandwidth, and transient accuracy as shown in Figure 2. Figure 2: Typical step response with six-inch ground lead For best results, ensure that ground-lead inductance is at a minimum. Two methods for doing so are the Low-Inductance Ground Lead and the Klipkit. P6136 Instruction Manual...
  • Page 9 Operating Basics Low-Inductance Ground The low-inductance ground lead provided with all Tektronix P6136 probes Lead allows for a substantial reduction in ground-lead inductance, approximately 32 nH instead of 150 nH. To install the low-inductance ground lead, refer to Figure 3 and perform the following steps: 1.

  • Page 10: Grounding The Probe

    WARNING. To avoid electric shock when using the probe, keep your fingers behind the finger guard on the probe body. See Figure 5 below. Hand contact area Finger guard Figure 5: Probe finger guard and hand contact area P6136 Instruction Manual...

  • Page 11: Specifications

    Specifications The characteristics listed in Table 1 apply to P6136 probes installed on Tektronix 2400 Series oscilloscopes unless otherwise noted. Specifications apply when the probe and host instrument warm up for a period of at least 10 minutes in an environment that does not exceed the limits described in Table 2 on page 7.
  • Page 12 (Duty Factor)] Peak Example: Maximum Input Voltage =[(650 V Pk) (.20)] = 290 V RMS Figure 6: Maximum input voltage calculation example Magnitude (ohms) –25 –50 Phase (degrees) –75 –100 Frequency (Hz) Figure 7: Typical P6136 input impedance P6136 Instruction Manual...
  • Page 13 Specifications Frequency (MHz) Figure 8: Typical P6136 voltage derating Table 2: Environmental characteristics Characteristic Description Temperature range Operating –15 C to 65 C (+5 F to 149 F) Nonoperating –62 C to 85 C (–80 F to 185 F) Humidity Five cycles (120 hr) at 95% to 97% relative humidity, per Tektronix standard 062–2847–00,...
  • Page 14 Pollution Degree 2 Do not operate in environments where conductive pollutants may be present. Safety UL3111-1, First Edition & IEC61010-2-031, First Edition CSA C22.2 No. 1010.1-92 & CAN/CSA C22.2 No. 1010.2.031-94 EN61010-1/A2 EN61010-2-031 Pollution Degree 2 P6136 Instruction Manual...

  • Page 15: Service Information

    To avoid electrical shock, do not disassemble or maintain the probe while it is connected to a signal source other than those specified in this procedure. Adjustment Procedure This section contains procedures to adjust the P6136 probe. Always perform the low-frequency compensation adjustment before proceeding to the high-frequency compensation adjustment.
  • Page 16 Low-Frequency To adjust the probe low-frequency compensation do the following: Compensation 1. Connect the P6136 probe to the oscilloscope CH 1 input. Adjustment 2. Set the oscilloscope controls for 100 mV (includes probe 10X attenuation), 1 ms, and DC coupling.
  • Page 17 5. Note the system aberrations for comparison in step 10 below. 6. Remove the precision coax cable from the test setup. 7. Connect the P6136 probe to the oscilloscope CH 1 input. 8. Connect the probe tip through the probe-tip-to-BNC adapter and a 50 termination to the positive-going fast-rise output of the calibration generator.
  • Page 18 18. Disconnect the test setup. Bandwidth Check To check the probe bandwidth do the following: 1. Connect the P6136 probe output to the oscilloscope CH 1 input. 2. Connect the probe tip through the 50 adapters and BNC cable to the output of the leveled sine wave generator (as described in the High- Frequency Compensation procedure above).

  • Page 19: Maintenance

    5ns/div. Figure 10: Effects of high-frequency adjustments on waveform Maintenance Use the following procedures to clean and maintain the P6136 probe. Cleaning To remove accumulated dirt from the probe exterior, use a soft cloth dampened with a nonresidue cleaner, preferably isopropyl alcohol. In particular, avoid solvents such as benzene, toluene, xylene, or acetone.

  • Page 20: Replaceable Parts

    Replaceable Parts This section contains a list of the replaceable modules for the P6136 probe. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available through your local Tektronix field office or representative. Changes to Tektronix products are sometimes made to accommodate improved components as they become available and to give you the benefit of the latest improvements.

  • Page 21: Using The Replaceable Parts List

    Using the Replaceable Parts List This section contains a list of the replaceable mechanical and electrical compo- nents for the P6136 probe. Use this list to identify and order replacement parts. The table below describes the content of each column of the parts list.
  • Page 22 Replaceable Parts Figure 11: P6136 probe with standard accessories (subminiature tip) P6136 Instruction Manual...
  • Page 23 Replaceable Parts Replaceable parts: P6136 probe and standard accessories Fig. & Tektronix Serial no. Serial no. index part number effective discont’d Name & description Mfr. code Mfr. part number number P6136 PROBE (1.3 METER) 11 –1 206–0359–00 COMP BOX ASSY:P6136,1.3 METER 80009 206–0359–00...
  • Page 24 Replaceable Parts Figure 12: P6136 probe optional accessories (subminiature tip) P6136 Instruction Manual...
  • Page 25 Replaceable Parts Replaceable parts: P6136 probe optional accessories Fig. & Tektronix Serial no. Serial no. index part number effective discont’d Name & description Mfr. code Mfr. part number number P6136 PROBE OPTIONAL ACCESSORIES 12 –1 013–0197–00 KLIPKIT:(2)16 PIN CLIP W/(4)CONTACT GROUND 80009 013–0197–00...
  • Page 26 Replaceable Parts Figure 13: P6136 probe Option 25 with standard accessories (compact tip) Replaceable parts: P6136 probe Option 25 and standard accessories Fig. & Tektronix Serial no. Serial no. index part number effective discont’d Name & description Mfr. code Mfr. part number number P6136 PROBE OPTION 25 (1.3 METER)
  • Page 27 Replaceable Parts Replaceable parts: P6136 probe Option 25 and standard accessories (cont.) Fig. & Tektronix Serial no. Serial no. index part number effective discont’d number Name & description Mfr. code Mfr. part number P6136 PROBE OPTION 25 STANDARD ACCESSORIES 13 –11 195–4240–00...
  • Page 28 Replaceable Parts Figure 14: P6136 probe Option 25 optional accessories (compact tip) Replaceable parts: P6136 probe Option 25 optional accessories Fig. & Tektronix Serial no. Serial no. index part number effective discont’d Name & description Mfr. code Mfr. part number...
  • Page 29 Replaceable Parts Replaceable parts: P6136 probe Option 25 optional accessories (cont.) Fig. & Tektronix Serial no. Serial no. index part number effective discont’d number Name & description Mfr. code Mfr. part number 14 –9 352–0670–00 HOLDER,PROBE:ATTENUATOR TIPS (3) TK2565 352–0670–00 –10...
  • Page 30 Replaceable Parts P6136 Instruction Manual...
