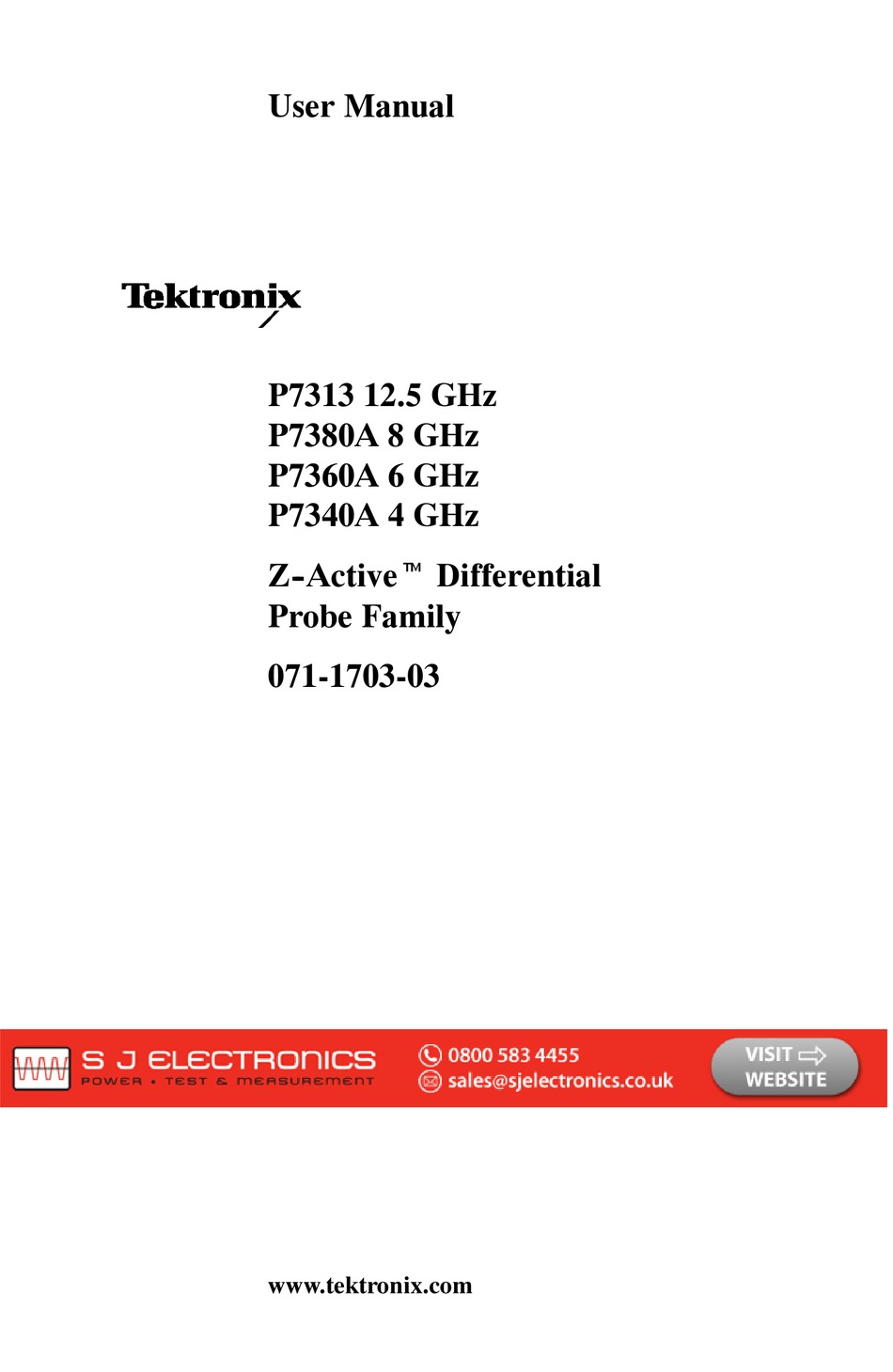

- Page 1 User Manual P7313 12.5 GHz P7380A 8 GHz P7360A 6 GHz P7340A 4 GHz Z- - Activet Differential Probe Family 071-1703-03 www.tektronix.com...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending.
- Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
- Page 4 Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located.
-
Page 5: Table Of Contents
......Wire Replacement (P7313 Only) ..... . . - Page 6 Table of Contents Probe Applications ........Dual In-line Memory Module (DIMM) Testing .
- Page 7 Table of Contents Tables Table 1: Typical electrical characteristics ....Table 2: Typical environmental characteristics ..Table 3: Standard accessories .
- Page 8 Table of Contents Figure 22: RTPA2A Probe adapter setup ....Figure 23: RT-Eye application ......Z-Active Differential Probe Family User Manual...
-
Page 9: General Safety Summary
General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures. To Avoid Fire or Personal Injury Connect and Disconnect Properly. - Page 10 General Safety Summary Symbols and Terms Terms in this Manual. These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
-
Page 11: Preface
Basic probe operations and concepts are presented in this manual. All documents listed below are located on the Documentation CD that came with your product and the Tektronix Web site. To access the Tektronix Web site, refer to Contacting Tektronix on the copyright page of this manual. -
Page 12: Environmental Considerations
(WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of Hazardous Substances This product has been classified as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive. -
Page 13: Getting Started
The Z-Active Differential Probe Family can help you probe in tight places while preserving high bandwidth and improving connectivity with low loading. Key features include: H Bandwidth >12.5 GHz (typical) P7313 >8.0 GHz (typical) P7380A >6.0 GHz (typical) P7360A >4.0 GHz (typical) P7340A H Rise time <40 ps (guaranteed) P7313... -
Page 14: Handling The Probe
Getting Started Handling the Probe This probe is a precision high-frequency device; exercise care when you use and store the probe. The probe and cable are susceptible to damage caused by careless use. Always handle the probe at the compensation box and probe head, to avoid undue physical strain to the probe cable, such as kinking, excessive bending, or pulling. -
Page 15: Operation Basics
Operation Basics Connecting to the Host Instrument CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at a static-approved workstation when you handle the probe. The TekConnect interface features a spring-loaded latch that provides audible and tactile confirmation that a reliable connection has been made to the host instrument. -
Page 16: Selecting The Probe Attenuation (Scaling)
LEDs continue to flash, the probe is Indicator defective, and must be returned to lights x.xv Tektronix for repair. Quick Tip. For the best noise Dynamic Range performance, choose the 5X attenu- Select button ator setting if it meets the dynamic range requirements for the signal. -
Page 17: Connecting A Tip-Clip Assembly
Oscilloscopes with a TekConnect Interface Probe BNC (M)-to-Minigrabbers SMA (M)-to-BNC (F) adapter. Other oscilloscopes with BNC connectors do not need this adapter. (Tektronix part number 015-0554-XX) Figure 3: Equipment used for the functional check Z-Active Differential Probe Family User Manual... -
Page 18: Test Procedure
Operating Basics Test Procedure Following is a method for connecting the probe to a typical compensation connector. 1. Connect the probe to any channel of the oscilloscope. 2. Set the oscilloscope to display the probe channel. 3. Set the probe gain to 25X. 4. -
Page 19: Installing A Tip-Clip Assembly
Operating Basics Installing a Tip-Clip Assembly Retrieve a Long Flex, Small Resistor, Tip-Clip assembly from the Accessory Kit that came with your probe. For a list of Tip-Clip assemblies, refer to the Accessory section on page 33. CAUTION. To prevent damage to the Tip-Clip, use care when you handle any of the Tip-Clip assemblies. - Page 20 The probe compensation signal amplitude and common mode voltage is dependent on oscilloscope model. Check that the signal amplitude on the oscilloscope and the common mode voltage approximate those in the table: P7313, P7380A, P7360A, or P7340A probe set at 25X Attenuation TDS6604...
-
Page 21: Figure 6: Short Resistor Leads
Operating Basics 8. Use the (- - ) Minigrabber to short the resistor leads together and connect to a ground potential. See Figure 6. 0 V (Ground potential) Figure 6: Short resistor leads With the probe offset set to 0.0 V, the oscilloscope display will be at the ground reference. -
Page 22: Probe Calibration
Operating Basics Probe Calibration After you perform a functional check of the probe, run a probe calibration routine. Probe calibration minimizes measurement errors by optimizing the gain and offset of the probe and oscilloscope combination. We recommend that you repeat the probe calibration on each channel that you use. -
Page 23: Figure 7: Connect The Probe For Probe Calibration (Tds6000B/C Shown)
Operating Basics NOTE. Connect the + probe input to the positive Minigrabber, connect the - - probe input to the ground Minigrabber. 4. Connect the BNC-to-Minigrabbers to the oscilloscope PROBE CAL connector as shown in Figure 7. If a PROBE CAL connector is not available on your oscilloscope, you may be able to use the PROBE COMPENSATION connector for the probe calibration procedure. -
Page 24: Tip-Clip Ejector
Operating Basics Tip-Clip Ejector A Tip-Clip Ejector is shipped installed on the probe tip and is used to remove the Tip-Clip assembly. CAUTION. To prevent wear to the Tip-Clip housing, it is recom- mended that you use the Tip-Clip Ejector to remove the Tip-Clip assembly from the probe tip. -
Page 25: Tip-Clip Ejector Installation
Operating Basics Tip-Clip Ejector Installation If you find that a Tip-Clip Ejector is missing from the probe tip, follow these steps to reattach the Tip-Clip Ejector: We recommend that you use the Magni-Spec magnifiers when you attach the Tip-Clip Ejector to the probe tip. 1. -
Page 26: Connecting To A Circuit Board
Operating Basics Connecting to a Circuit Board When connecting to a circuit, you can use the probe in three modes: H Use one or several Tip-Clip assemblies soldered to a circuit board for measurements in tight spaces. See Figure 10. H Use the Handheld Adapter with the Variable Spacing Adapter where probe clearance is less of an issue. -
Page 27: Soldered Tip-Clip Assembly
Operating Basics Soldered Tip-Clip Assembly Follow these steps to solder a Tip-Clip assembly to a circuit board, except for the HBW Tip-Clip assemblies; then see page 18. NOTE. For the choice of Tip-Clip assemblies and Tip-Clip perfor- mance information, see page 33 in the Accessories section. Identify a location near the circuit under test where the Tip-Clip can be placed and soldered to a circuit with the recommended Tip-Clip damping resistor lead length (see step 4). - Page 28 Operating Basics Connect the probe to any oscilloscope that features the TekConnect interface. 2. Attach the probe to the Tip-Clip assembly. CAUTION. To prevent damage to the circuit board or circuit board connections due to accidental movement of the probe and soldered leads, it is recommended that the Tip-Clip assembly and probe be secured to the circuit board using the provided Velcro fastening strap and dots, and the Tip-Clip Tape.
-
Page 29: Figure 12: Tds/Csa8X00 Series Sampling Oscilloscope
Operating Basics You can connect TekConnect probes to some nonTekConnect instruments using special probe adapters. The 80A03 TekConnect Probe Interface adapts any TekConnect probe to the TDS8X00 and CSA8X00 Series oscilloscopes. The RTPA2A TekConnect Probe Interface adapts any TekConnect probe to the RTSA Real-Time Spectrum Analyzers. -
Page 30: Figure 13: Wire-Lead Length For Hbw Tip-Clip Assemblies
Soldered HBW Tip-Clip Assemblies (P7313 Only). The HBW solder-in Tip-Clips are required for full bandwidth measurements using the P7313 probe. The HBW Tip-Clips are designed with damping resistors mounted on a flex circuit and circuit attachment wires soldered to the ends of the damping resistors (see Figure 13). - Page 31 Operating Basics Use the following precautions when soldering HBW Tip-Clips: H Avoid strain on the attachment wires. To avoid strain on the attachment wires, the HBW Tip-Clip should be attached to the circuit board with the Tip-Clip tape as shown in Figure 11 on page 15.
-
Page 32: Handheld Adapter
Tip-Clip assembly, rotate the lever arms three or four times. For Variable Spacing Tip-Clip assembly specifications, refer to the technical reference on your documentation CD or Tektronix Web site. You can store the Variable Spacing Tip-Clip assembly in the plastic accessory box. -
Page 33: Figure 15: Assembling The Handheld Adapter
Operating Basics 2. Separate the Handheld Adapter housings, if necessary (see Figure 16 on page 22 for latch location), and place the probe in the lower housing. See Figure 15. a. Check that the plastic pins on the lower housing are keyed in the slots on the probe (either side). -
Page 34: Figure 16: Lock The Handheld Adapter
Operating Basics 3. While holding the lower housing and probe still, hook the nose of the upper housing into the nose of the lower housing. 4. Bring the two housings together. 5. Slide the latch forward on the upper housing to lock the housings in place. - Page 35 Operating Basics How to Remove the Handheld Adapter Housing. CAUTION. To prevent damage to the Handheld Adapter when removing it from the probe, slide the latch on the upper housing first before attempting to separate the housings. To remove the Handheld Adapter housings from the probe: 1.
-
Page 36: Square Pin Tip-Clip Assembly
Operating Basics Square Pin Tip-Clip Assembly. Use the Square Pin Tip-Clip assembly for probing 0.025-in diameter square pins spaced 0.1-in on center. Square pins are not an ideal transmission path for high speed electrical signals. Square pins are not recommended for signals faster than 100 ps or 3 GHz. Oscilloscopes with a TekConnect Interface Velcro strap... -
Page 37: Fixtured Probing
Operating Basics Fixtured Probing Fixtured probing can be used to make hands-free connections to a circuit under test. The probe arm adapter is used to attach the probe body or Handheld Adapter to a PPM203B Articulating or PPM100 Probe Fastener. Figure 18 shows a fixtured probe (PPM203B with a Probe Arm Adapter). -
Page 38: Reinstalling The Flex Strip
Operating Basics Reinstalling the Flex Strip If the flex strip separates from the Tip-Clip housing, follow these instructions to reinstall the flex strip. 1. Ensure that the two elastomeric backing buttons are in place in the Tip-Clip housing. Position the flex strip and Tip-Clip housing as shown in 1 of Figure 19. -
Page 39: Wire Replacement (P7313 Only)
Operating Basics Wire Replacement (P7313 Only) If you need to resolder a HBW Tip-Clip wire lead, refer to the instructions in the Wire Replacement Kit. This kit is located inside the Accessory Kit box that came with the probe. The Wire Replacement Kit includes the high temperature solder recommended for use in replacing wire leads on the HBW Tip-Clips. -
Page 40: Table 2: Typical Environmental Characteristics
Operating Basics CAUTION. To prevent permanent damage to the probe, do not exceed 15V pk on either differential input relative to ground. Table 2: Typical environmental characteristics Characteristic Description Operating: 0 to +40 °C (+32 to +104 _F) Temperature Nonoperating: --55 to +75 °C (--131 to +167 _F) Operating: 0--90%RH, up to +30 °C (+32 to +86 _F), Humidity 0--75%RH up to 40 °C (+86 to +104 _F) -
Page 41: Accessories
In the reorder column, the number inside the parenthe- sis indicates the reorder quantity. Table 3: Standard accessories Accessory Shipped with Reorder (Tektronix part number) P7313 Pouch, nylon carrying case with inserts. This carrying case has several compart- P7380A ments to hold the probe and accessories. - Page 42 Accessories Table 3: Standard accessories (Cont.) Accessory Shipped with Reorder (Tektronix part number) P7313 Magni-Spec Magnifier. A hands-free P7380A magnifier that can be worn alone or over P7360A eyeglasses to assist you when attaching P7340A the Tip-Clip leads to your circuit board or attaching the Tip-Clip Ejector.
- Page 43 (each language User Manual and CD-ROM. The user option ordered) manual provides instructions for operating and maintaining the P7313, P7380A, P7360A, and P7340A differential probes. The documentation CD-ROM contains PDFs of primers, basic probe and mea- surement literature, and the probe manuals (the user manual and a probe specific technical reference).
- Page 44 016-1948-XX (Kit of 1 ) P7313 1 kit Wire Replacement Kit. (P7313 Accessory P7380A kit only). This kit Includes three bobbins; P7360A solder, 4 mil wire, and 8 mil wire plus an P7340A instruction sheet.
- Page 45 HBW Straight Flex, 8 mil wire, Tip-Clip P7380A Assembly. P7360A Blue P7340A Bandwidth: >12.5 GHz (P7313) : 10/90 <40 ps, 20/80 <25 ps >200 Ω to 10 GHz Loading: Z Highest bandwidth and best probe loading for HBW Tip-Clip assemblies. Using the...
- Page 46 Reorder (Tektronix part number) P7313 Short Flex, Small Resistor, Tip-Clip P7380A Assembly. Blue P7360A P7340A Bandwidth: >8.0 GHz (P7313 & P7380A) :10/90 <55 ps 20/80<35 ps 290 Ω to 8 GHz Loading: Bandwidth: >6.0 GHz (P7360A) 10/90 <70 ps , 20/80 <50 ps 290 Ω...
- Page 47 Medium Flex, Small Resistor, Tip-Clip Blue P7380A Assembly. P7360A P7340A Bandwidth: >7.0 GHz (P7313 & P7380A) : 10/90 <55 ps, 20/80 <35 ps 290 Ω to 8 GHz Loading: Z Bandwidth: >5.0 GHz (P7360A & P7340A) : 10/90 <70 ps, 20/80 <50 ps 290 Ω...
- Page 48 Long Flex, Small Resistor, Tip-Clip Blue P7380A Assembly. P7360A P7340A Bandwidth: >6.0 GHz (P7313 & P7380A) : 10/90 <130 ps, 20/80 <40 ps 360 Ω to 8 GHz Loading: Z Bandwidth: >4.0 GHz (P7360A) : 10/90 <130 ps, 20/80 <60 ps 360 Ω...
- Page 49 Accessories Table 3: Standard accessories (Cont.) Accessory Shipped with Reorder (Tektronix part number) P7313 Medium Flex, Large Resistor, 1/8 W, P7380A Tip-Clip Assembly. P7360A P7340A Bandwidth: >8.0 GHz (P7380A) : 10/90 <55 ps, 20/80 <35 ps 260 Ω to 8 GHz Loading: Z Bandwidth: >5.0 GHz (P7360A)
- Page 50 Accessories Table 3: Standard accessories (Cont.) Accessory Shipped with Reorder (Tektronix part number) P7313 Square Pin, Tip-Clip Assembly. P7380A Bandwidth: >6.0 GHz (All probes) P7360A : 10/90 <70 ps, 20/80 <50 ps P7340A Use the Square Pin Tip-Clip assembly for probing 0.025-in diameter square pins...
- Page 51 Tip-Clip Ejector. (3) The Tip-Clip Ejector assists in the removal of the Tip-Clip assemblies from the probe tip. P7313 Variable Spacing Tip-Clip. P7380A Bandwidth: >8 GHz (P7313 & P7380A) P7360A : 10/90 <55 ps, 20/80 <35 ps P7340A 220 Ω to 8 GHz Loading: Z Bandwidth: >6 GHz (P7360A)
-
Page 52: Optional Accessories
Accessories Optional Accessories Table 4: Optional accessories Optional accessory Part number Description PPM203B PPM203B Articulating Arm. This high precision articulating arm has fine adjustment controls for all three axes. It is designed for probing PC boards, hybrids and MCMs that employ fine-pitch devices and interconnects. - Page 53 SMA connectors on the front panel. Semi-rigid SMA cables link the probe outputs to the 80E0X module inputs. P7313, P7360A, and P7340A Probes require firmware version 2.0 and above. The P7380A Probe requires firmware version 1.2 and above.
-
Page 54: Options
Accessories Options Option C3. Calibration Service 3 years Option C5. Calibration Service 5 years Option D3. Calibration Data Report, 3 years (with Option C3) Option D5. Calibration Data Report, 5 years (with Option C5) Option R3. Repair Service 3 years Option R5. -
Page 55: Probe Applications
Probe Applications The following are representative applications where the Z-Active Differential Probe Family characteristics enable measurements with good signal fidelity. Refer to Z-Active: A New High Performance Probe Architecture document (2FW- - 17826- - X, at www.tektro- nix.com) or the CD for an in-depth discussion of these applications. Dual In-line Memory Module (DIMM) Testing H Solder a group of Tip-Clip assemblies to the circuit board and leave them in place on critical signal measurement locations. -
Page 56: P7000 Probe With A Tds8000 Sampling Oscilloscope
Probe Applications P7000 Probe with a TDS8000 Sampling Oscilloscope H Connect one channel of the 80A03 to probe a clock that is source synchronous to the signal to be measured, to provide a trigger signal. See Figure 21. H Connect a cable between the TekConnect socket output connector of the probed trigger signal and the sampling oscilloscope External Trigger input. - Page 57 Probe Applications This TekConnect measurement signal should be connected between the TekConnect socket output and the embedded electrical sampling module in the 80A03 interface using the standard short semi-rigid cable. If a synchronous clock signal source is not available, then use a 80A05 Module to recover a clean trigger signal that is synchronous to the input signal.
-
Page 58: Measuring An Rf Signal With A P7000 Series Probe
Probe Applications Measuring an RF Signal with a P7000 Series Probe When the RTPA2A TekConnect probe adapter is used with a Real-Time Spectrum Analyzer and TekConnect probe, specific RF components can be measured with greater ease. See Figure 22. Real- - Time Spectrum Analyzer USB* Power cord... -
Page 59: Measuring A Pci Express Signal With A P7000 Probe
Probe Applications Measuring a PCI Express signal with a P7000 probe RT-Eye Application Software . When the P7000 probe is used with a TDS6000 or TDS7000 real-time oscilloscope configured with RT-Eye application software, physical layer testing on PCI Express signals is performed with greater ease and accuracy. See Figure 23. As shown in Figure 23, the RT-Eye software separates the acquired transition and nontransition bits. - Page 60 Probe Applications Z-Active Differential Probe Family User Manual...
