2.
Mount the backplate to the wall by securing a M3.5 (#6)
screw in each of the dedicated mounting holes and tamper
hole. Ensure that the top is up, as shown in figure 2.
Wiring Slot
Wall Tamper

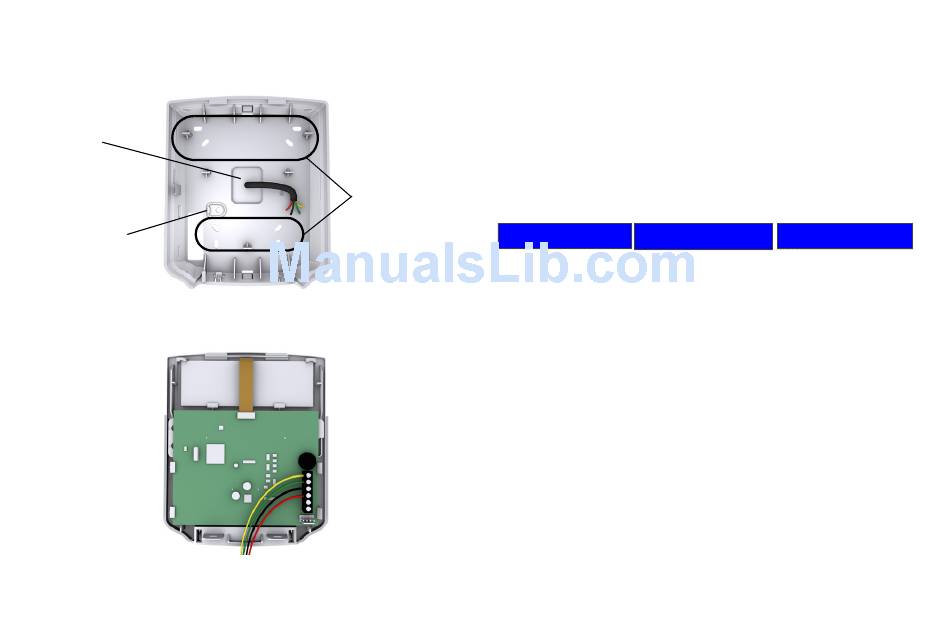

Figure 2: Backplate
3.
Connect the 4-wire combus wires to the connector bus, as
shown in figure 3.
ZX1 is a:
Programmable
input
PGM is a:
Programmable
output
Figure 3: Wiring
K32LCD+ Quick Install Guide
4.
5.
Top with hooks for
mounting keypad
The installation process is now complete.
panel
Configuration
To configure the modules through a keypad start by:
Mounting screw
1.
holes
All Disarmed
2014/19/05 16:00
2.
3.
4.
5.
6.
7.
Compatibility
The K32LCD+ is compatible with Magellan and Spectra series
control panels only. Please refer to the Technical Specifications
section for more details.
Assemble both items by joining the hooks on the backplate
to their respected slots on the front housing assembly.
Secure the front housing to the backplate by snapping it
into place.
Press and hold the 0 (number zero) key.
User Access Code
[* _ ]
NOTE:The area must be disarmed to configure it.
Initially you will see User Access Code but within 2 seconds
it will change to Installer Code.
When the Installer code appears, input the Installer code
number, the default number is [000000].
Input the 4 digit section code for Module Programming
[4003].
NOTE:You need module serial numbers for programming.
Input the Module serial number.
Input module sec [001].
Now you can start module programming.
Installers Code
[ _ ]
Printed in Canada | 06/2014
