Paradox K32LCD+ Quick Install Manual

Technical Specifications
Operating Voltage 9 to 16Vdc
Operating Temp. -10 to 55°C (14 to 131°F)
Power Consumption Maximum current - 150mA
Dimensions 15 x 12.6 x 2.7 cm (6 x 4.9 x 1.06 in.)
Weight 230g (8.1 oz)
Humidity 5-93%
Compatible with MG5000, MG5050, and Spectra SP series
Compatibility
V2.31 or higher and SP4000, SP65 V4.90 or higher.
Compliance EN50131-3 Grade 2; Environmental Class II
Warranty
Warranty: For complete warranty information on this product, please refer to the Limited Warranty
Statement found on paradox.com. Your use of the Paradox product signifies your acceptance of all
warranty terms and conditions.
© 2019 Paradox Ltd. All rights reserved. Specifications may change without prior notice.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Printed in Canada | 02/2019

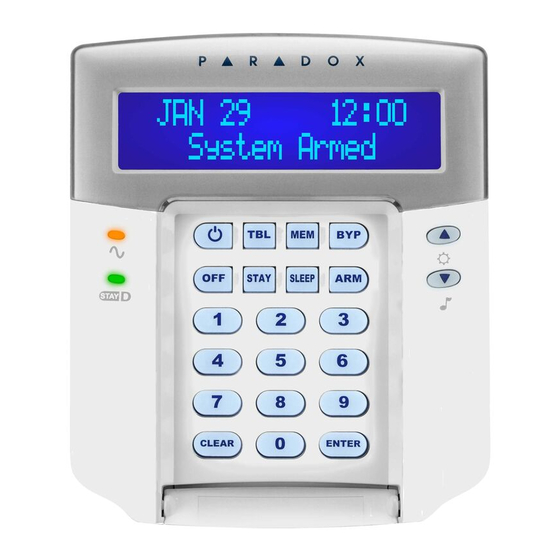

K32LCD+ Keypad
Quick Install Guide
The K32LCD+ keypad allows you to configure your Paradox system through its
interface.
Installation
1. Using a flathead screwdriver, pry the front housing assembly from the
backplate.
Figure 1: Opening the K32LCD+
K32LCD+-EI01
PARADOX.COM
