K07C: Grafica Color Keypad
Quick Start
Description
Grafica sets a new milestone for
keypads in the security industry.
Grafica features a full color LCD
screen and offers the ability to
view zone locations on floor plan
drawings.
Other features include a photo
screensaver, SD memory card
slot, downloadable tunes and
bitmaps, a smart search engine for
users and zones, and an alarm
clock.

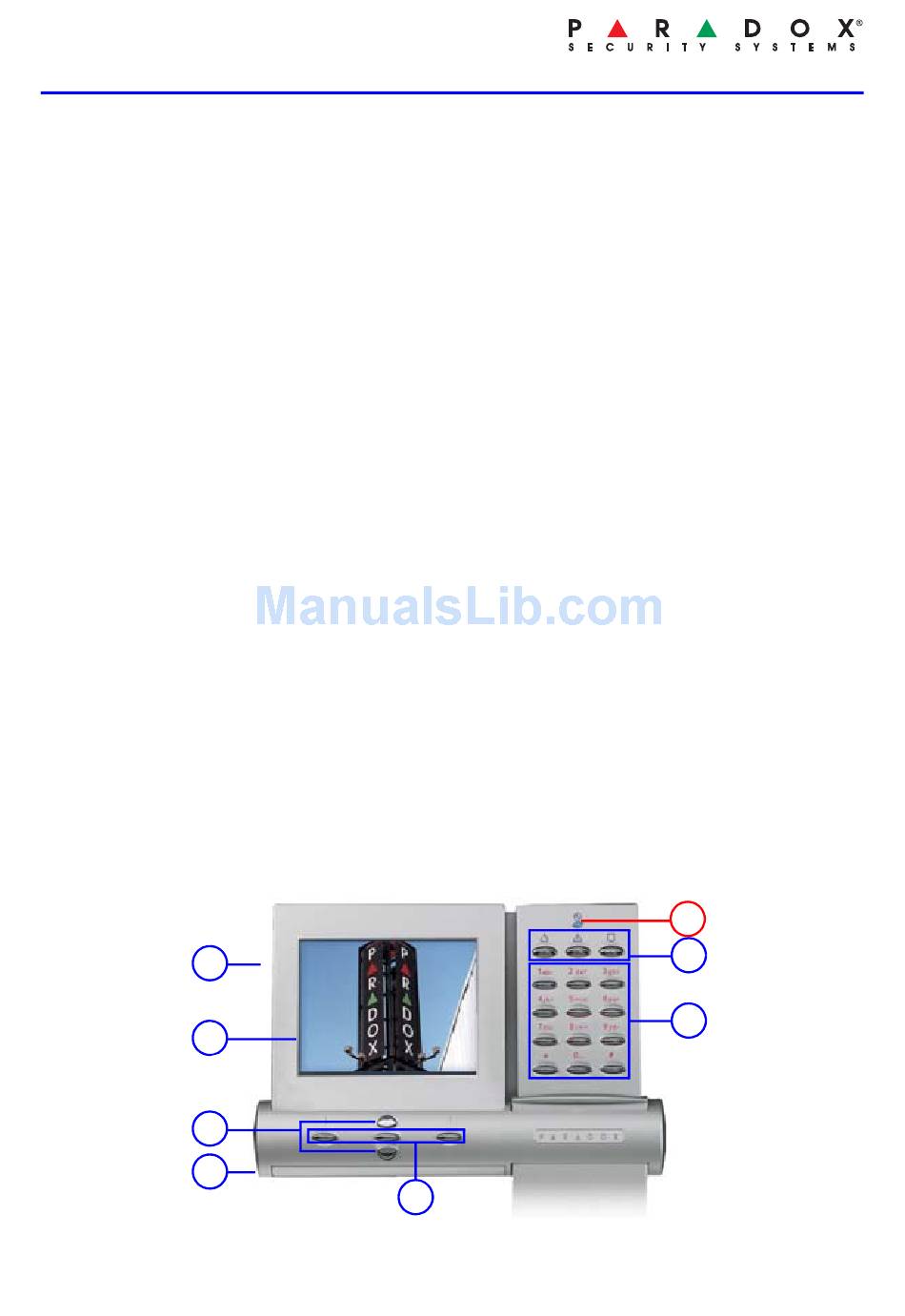

Overview
1. SD memory card slot
2. Color LCD screen
3. Scroll keys - navigation
4. Temperature sensor
5. Action keys - selection
6. Panic keys
7. Alphanumeric keys
1
2
3
4
K07C-EQ00 05/2009
Features
• Full color photo screensaver
• Downloadable tunes and
bitmaps
• Smart search engine for users
and zones
• Alarm clock
• Indoor temperature sensor
• Outdoor temperature sensor
(optional)
• 14 one-touch action buttons
• 3 keypad-activated panic alarms
• Adjustable backlight, contrast
and volume
A) Power light:
On
= AC power
Off
= Power failure
Flash = System is locating the
5
keypad
A
6
7
PARADOX.COM
