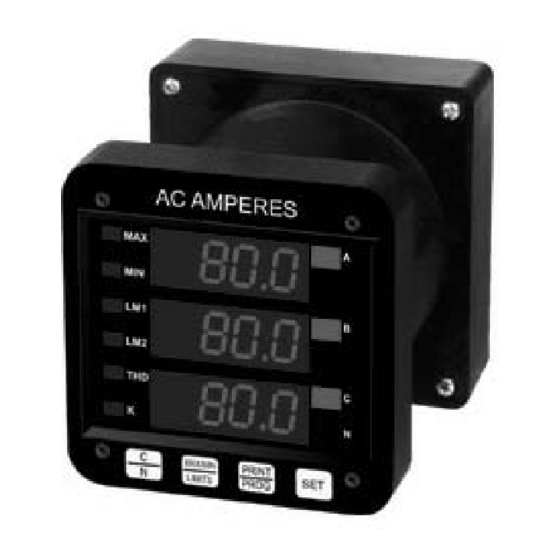

Quick Start Guide for 3DAA5/3DAA5-H Meters
Hardware Installation

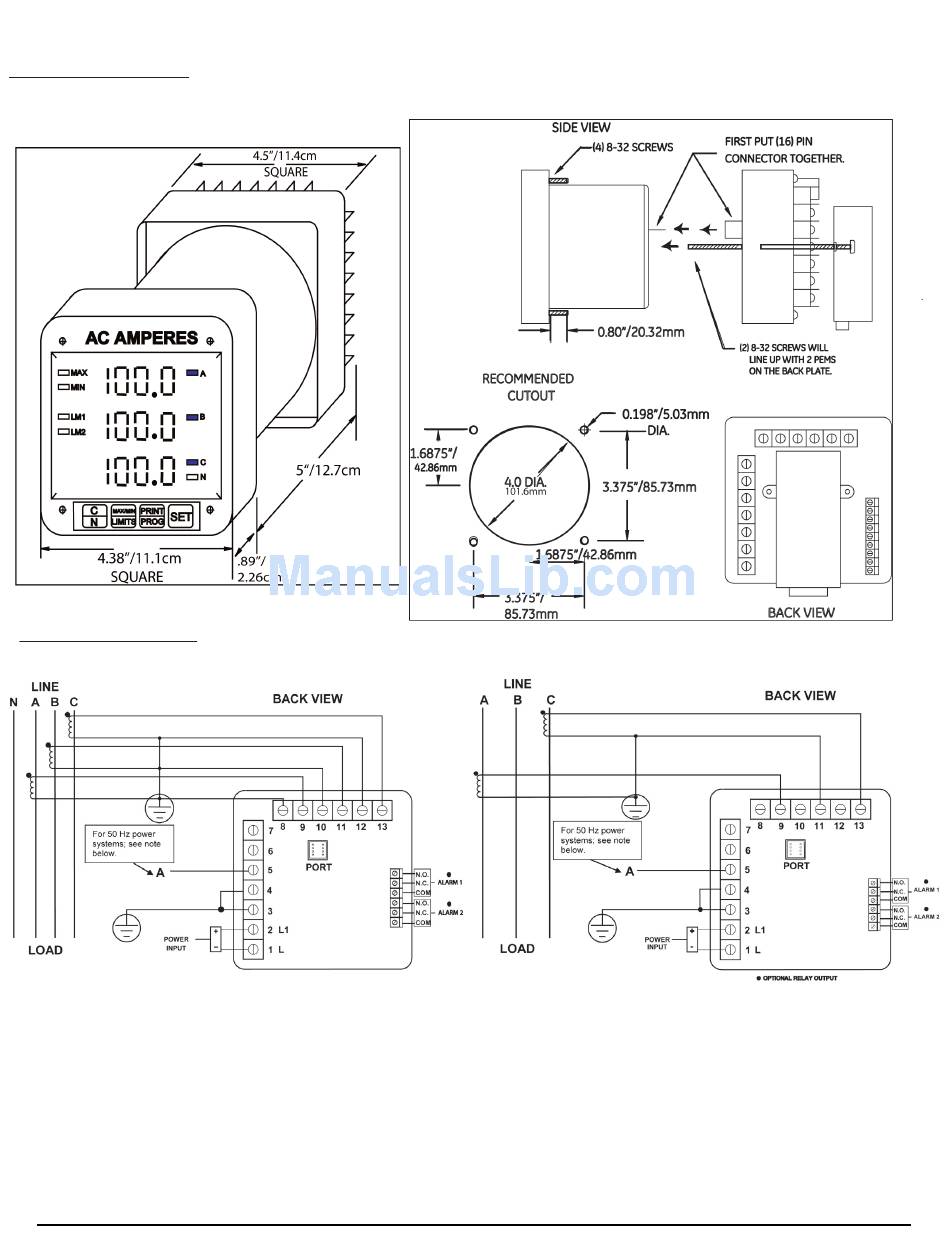

Meter Dimensions and Cut-out
Electrical Installation
Three-Phase, Four-Wire Wye with 3 CTs
Three-Phase, Three-Wire Delta System Wye with 2 CTs
NOTE: For 50 Hz power systems—Connect phase A voltage to terminal 5 and neutral to terminal 4. Do not exceed 300 VAC
L-N. This provides a frequency reference. If no frequency reference is connected, the unit will default to 60 Hz operation.
Electro Industries/GaugeTech
e
Doc# E104779
Q-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Electro Industries/GaugeTech 3DAA5
Summary of Contents for Electro Industries/GaugeTech 3DAA5
- Page 1 Quick Start Guide for 3DAA5/3DAA5-H Meters Hardware Installation Meter Dimensions and Cut-out Electrical Installation Three-Phase, Four-Wire Wye with 3 CTs Three-Phase, Three-Wire Delta System Wye with 2 CTs NOTE: For 50 Hz power systems—Connect phase A voltage to terminal 5 and neutral to terminal 4. Do not exceed 300 VAC L-N.
- Page 2 1. Press and hold PRINT/PROG until 3 appears in the bottom display. 2. Press SET (3DAA5) or THD/K (3DAA5-H) to multiply the 3 to 333. 3. Digits begin scrolling in the upper display. Press SET or THD/K each time 5 appears, until the bottom display reads 555 (this is the meter’s password.
