Disassembly and Assembly

Disassembly
25C1018 (CC)
Shure T2 Vocal Artist Microphone Transmitter
To access the printed circuit (pc) boards, disassemble the transmitter
(refer to Figures 2 and 3 on pages 9 and 10).
CAUTION
Observe precautions when handling this static-sensitive device.
1. Turn off the Power switch.
2. Unscrew the transmitter battery cup and remove the battery.
3. Unscrew the microphone cartridge.
4. If necessary, remove the microphone-transmitter subassembly:
(a) Use snap ring pliers to remove the retaining ring from in-
side the microphone handle.
(b) Remove the bezel by carefully inserting a small screwdriver
into the microphone handle, pressing the blade against the
plastic bezel tab, and prying it up (Figure 2). Remove the
label plate and switch actuators (Figure 3, page 10).
Note: Newer bezels have the labeling printed directly on
their faces; there are no separate label plates.
(c) As you slide out the transmitter subassembly (audio,
and head circuit boards) from the handle, note how it was
positioned in the internal guides.
handle
(Right-side view)

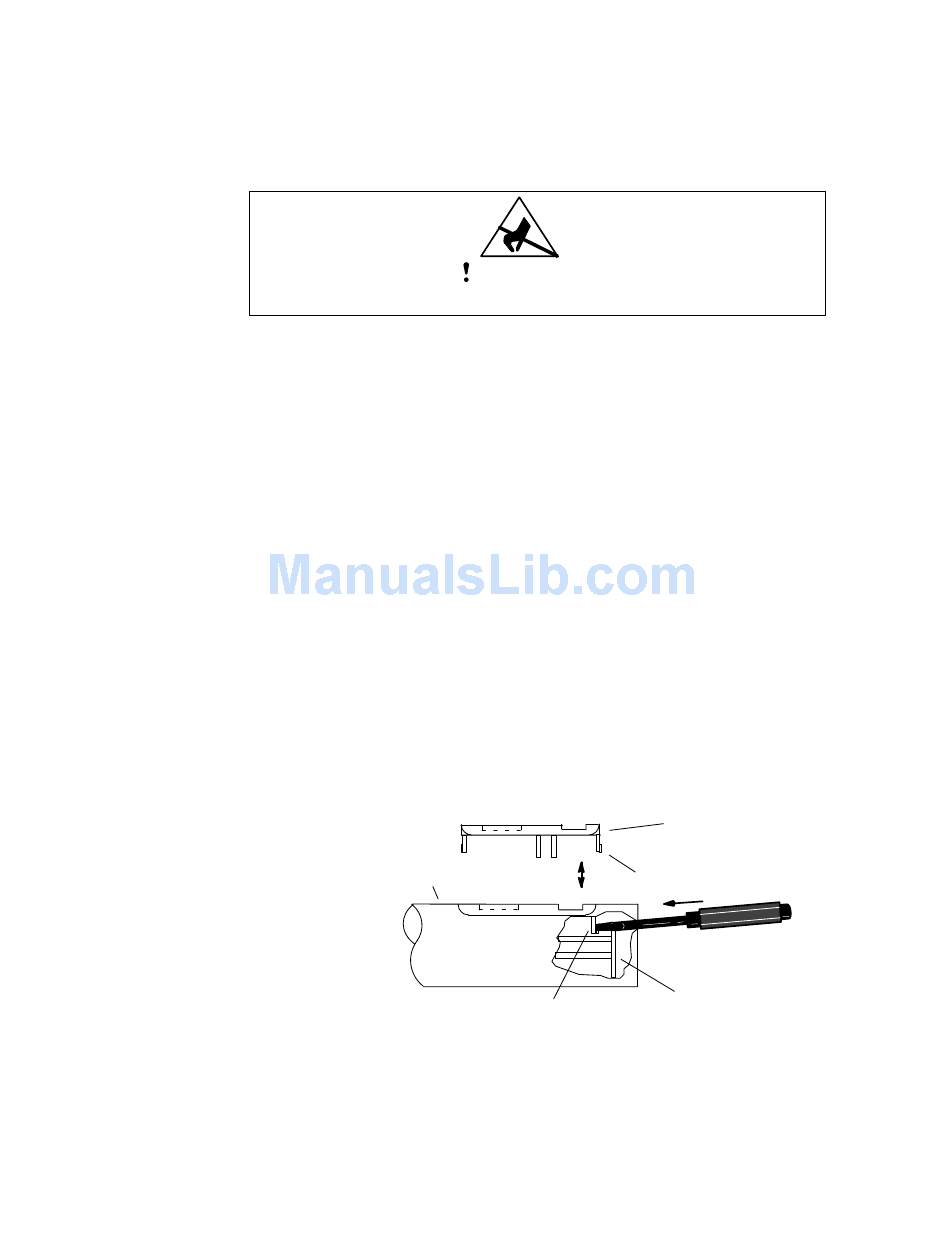

Figure 2. Removing the Bezel
bezel
tab
tab
9 Disassembly and Assembly
,
RF
circuit-board
subassembly
