- Page 1 AXIENT DIGITAL AD2 TRANSMITTER USER GUIDE © 2016 Shure Incorporated 27A (Rev. 1) Printed in China...
-
Page 2: Important Product Information
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency. -
Page 3: Ad2 Handheld Transmitter

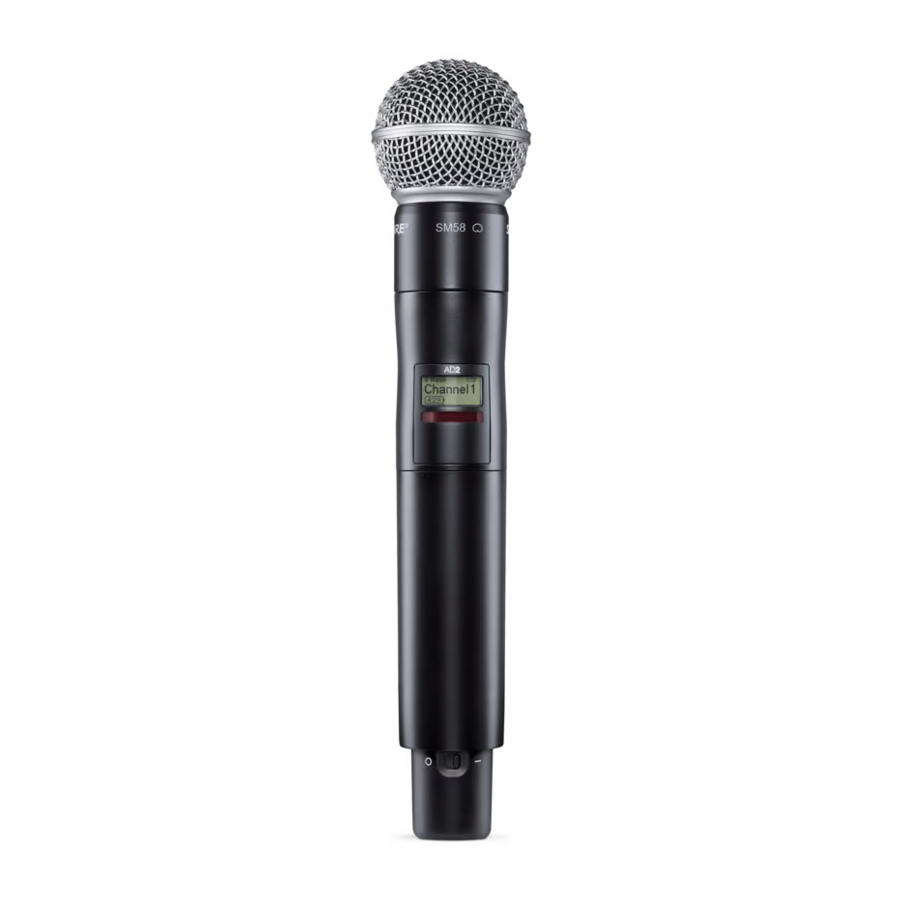

AD2 Handheld Transmitter The AD2 handheld transmitter delivers ultra-linear RF performance for more channels on-air and superb audio quality in even the most challenging RF environments. Advanced power management supports extended battery life and provides unmatched reliability. Rugged construction and interchange- able cartridges offer a combination of durability and flexibility to meet the needs of professional audio. -
Page 4: Transmitter Controls
④ Menu Navigation Buttons Use to navigate through parameter menus and change values. ⑤ Battery Compartment Requires Shure SB900 rechargeable battery or 2 AA batteries. ⑥ AA Battery Adapter Remove to accommodate a Shure SB900 battery ⑦ On/Off Switch Powers the unit on or off. -
Page 5: Battery Installation
Setting the AA Battery Type To ensure accurate display of transmitter runtime, set the battery type in the transmitter menu to match the installed AA battery type. If a Shure SB900 rechargeable battery is installed, selecting a battery type is not necessary and the battery type menu will not be displayed. -
Page 6: Aa Batteries And Transmitter Runtime
AA Batteries and Transmitter Runtime Transmitters are compatible with the following AA battery types: • Alkaline • Nickel Metal Hydride (NiMH) • Lithium Primary A 5-segment battery indicator representing the charge level of the transmitter battery is displayed on the screens of the transmitter and receiver. The fol- lowing tables contain the approximate remaining transmitter runtime in hours:minutes. -
Page 7: Main Menu Parameters
Higher power settings can extend the range of button to drop a marker in Wireless the transmitter. connector transmitters: Workbench or Shure ChannelsPlus. - Pos: Positive pressure on microphone dia- RF Output Versions phragm produces positive voltage on pin 2... - Page 8 RF Mute RF Mute prevents transmission of the audio by suppressing the RF signal, while allowing the transmitter to remain powered-on. The message RF Mute is shown on the home screen. RADIO RF Output: Mute 1. From the Radio menu, navigate to RF Output. 2.
-
Page 9: Updating Firmware
To take advantage of design improvements, new versions of the firmware can be uploaded and installed using the Firmware Update Manager tool available in Shure's Wireless Workbench 6 (WWB6) software. Software is available for download from http://www. -
Page 10: Specifications
10/50 Gain Adjustment Range -10 to +32 dB (in 1 dB steps) Battery Type Shure SB900 (Rechargeable Li-Ion) Battery Life Up to 9 hours (low power mode, Single Carrier Mode) Dimensions 261 mm x 37 mm (10.3 in. x 2.6 in.) L x Dia. - Page 11 : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
