Technical Specifications - COBHAM EXPLORER 540 Installation Manual

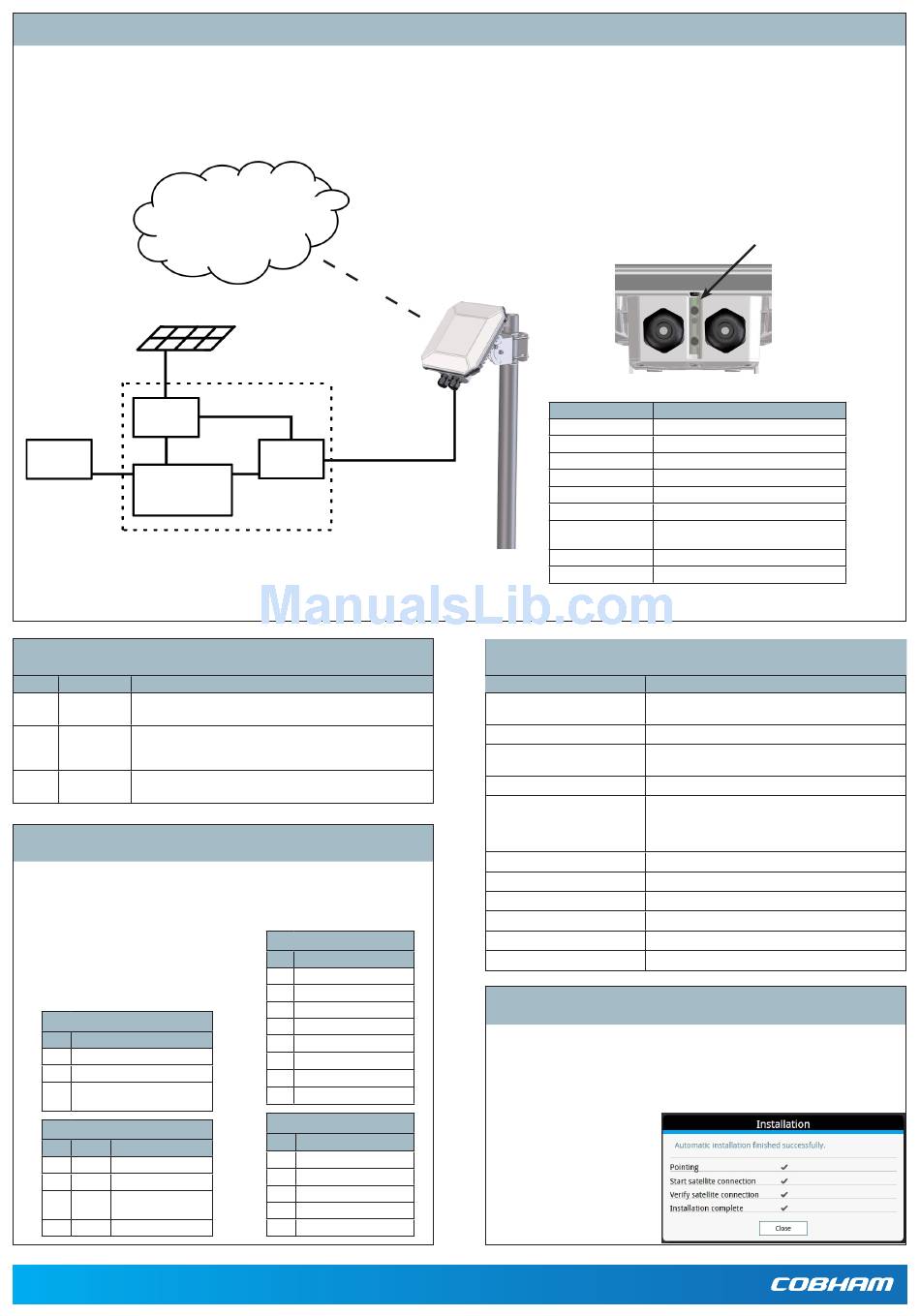

System Configuration - Example
Solar panel
Battery
Probe
M2M indoor
equipment
Note: This drawing is just an example. Your configuration may use other types of equipment.
Cable requirements
Number Cable Requirements
1 DC Power 1.5 mm copper wire, UV resistant, Temperature rating: 105 deg. C, Max.
2
cable cable length: 12 meters at 12 V operation, 200 meters at 24 V operation.
2 LAN cable Cable: Ethernet Min. Cat 5 Solid copper wire, STP. Max. length: 100 m,
Temperature rating: 95 deg. C.
PoE source according to PoE+ IEEE 802.3at type 2 class 4.
3 I/O cables 0,2 mm 2 to 0,5 mm
Use shielded cable on input if not actively driven high/low.
Connectors and pin allocation
IMPORTANT: You must use either X1 or X2 for LAN, not both!
The EXPLORER 540 has the following connectors/terminals:
• X1: LAN/PoE, Spring-loaded terminals
• X2: LAN/PoE, RJ-45 connector
• X3: SIM card
• X4: DC input, Screw terminals
• X5: I/O, Spring-loaded terminals
• X6: USB, micro B connector
• X7: Chassis GND, Screw terminal
DC power connector (X4)
Pin Signal
1 DCIN+
2 DCIN-
3 GND (optional - for connection
of shield)
I/O connector (X5)
Pin Signal Details
1 GPI Request wake up input
2 GPO Terminal ready output
3 GPIO M2M remote control/
status,input/output
4 GND Ground
98-148231-C
www.cobham.com/satcom
Internet
BGAN M2M service via
satellite
Indoor equipment
PoE
Ethernet with PoE
injector
2 (26 AWG til 20 AWG), output up to 2A.
LAN/PoE connector (X1 or X2)
Pin Signal
1 TXp
2 TXm
3 RXp
4 POE+
5 POE+
6 RXm
7 POE-
8 POE-
USB connector (X6)
Pin Signal
1 +5V
2 Dm
3 Dp
4 ID
5 GND
C1D2:
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D
OR non-hazardous locations only.
This equipment must be installed using wiring methods as required for Class I,
Division 2 as per the NEC and/or CEC.
WARNING – EXPLOSION HAZARD – Do not connect or disconnect
equipment unless power has been removed or the area is known to be non-
hazardous.
AVERTISSEMENT – RISQUE D'EXPLOSION – Ne pas brancher ou
débrancher un équipement sauf si le courant a été coupé ou la zone est
réputée non dangereuse.
Note: The LED is disabled after completion
of the installation process and will be off until
a new installation process is started.
LED status Description
Off Light indicator has been disabled or Power off
Green flashing rapidly Starting up
Yellow flashing BGAN pointing
Green flashing Verifying network connectivity
Green constant Ready
Yellow flashing rapidly Closing down
Yellow constant Warning (user recoverable).
See web interface for the warning text.
Red constant Error. See the web interface.
Blue flashing Uploading software to the terminal

Technical specifications

Item Specification
Dimensions 202 x 202 x 65 mm
8.0 x 8.0 x 2.5 inches
Weight 1.6 kg / 3.5 lbs (excl. cellular modem)
Power supply PoE 50 to 57 VDC According to: PoE+ IEEE 802.3at type 2 class 4
Power supply DC 10.5 to 32 VDC
Transient overvoltage Overvoltage category II
Power consumption (typical) Power save (Wake on GPIO or timer): 0.1W@12VDC/ 2.4W PoE
Power save (Wake on LAN): 0.9W@12VDC/ 2.3W PoE
Standby: 1.9W@12VDC/ 3.5 W PoE
Transmitting: 19 W
IP grade IP66
Operating temperature -40 to 75°C (-40 to +55°C for Harzardous locations (C1D2))
Environment condition Outdoor mounting and use in harsh environment
Max. altitude for Hazardous locations 2000 m
Relative humidity 95% humidity non-condensing at 40°C
Pollution degree Pollution degree 2
Verifying and troubleshooting the installation
If the LED turns steady yellow, it means the installation failed, e.g. because the terminal was
unable to detect a stable BGAN signal or veriify the network connection.
If you connect a computer locally to the terminal, you can use the built-in web interface to follow
the progress on screen during installation, and to see warning messages in case the installation
failed.
1. Connect your computer to the LAN interface of the EXPLORER 540.
2. Open your browser on the con-
nected computer.
3. Power up the terminal.
4. Access the web interface
at the local IP address (de-
fault192.168.0.1).
5. Enter the user name: User and
password: <serial number of the
terminal>.
Light indicator (LED)
