Summary of Contents for Cassida TillTally

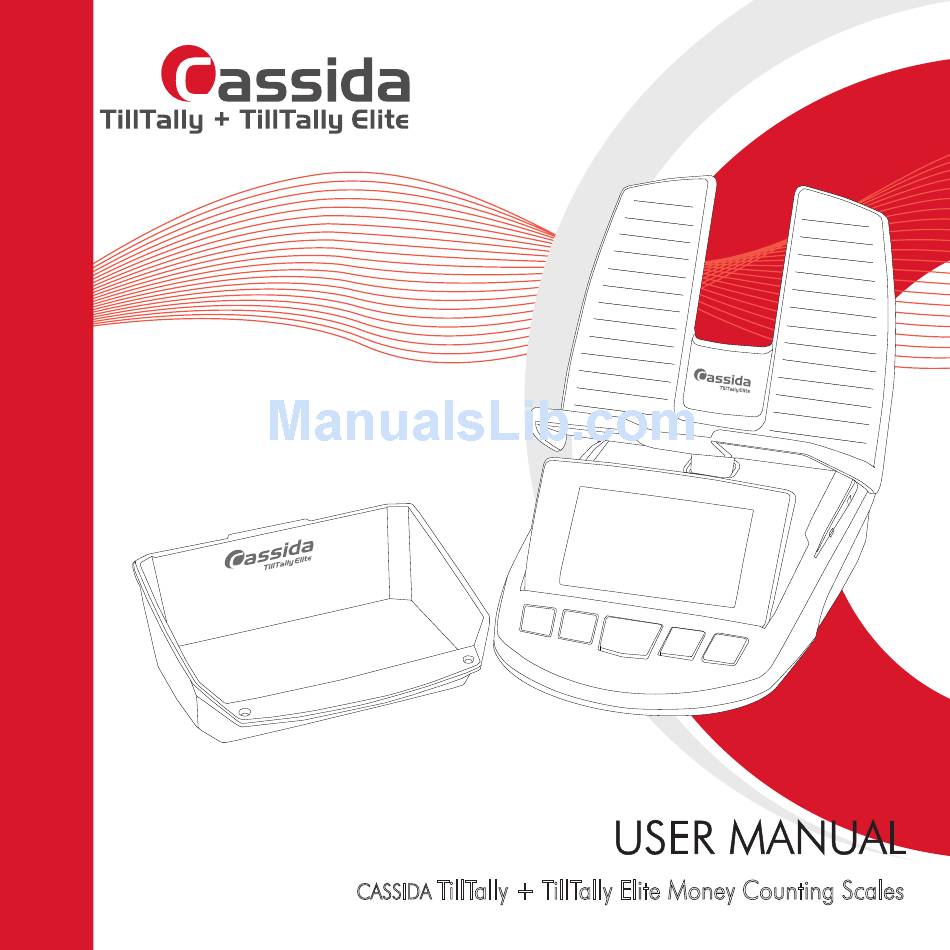

  • Page 1 ® Moving money forward TillTally + TillTally Elite Money Counting Scales CASSIDA...
  • Page 2: Table Of Contents

    Table of contents: 1. INTRODUCTION About the Cassida TillTally ______________________________________________ 2 Box contents __________________________________________________________ 2 Front and rear views ___________________________________________________ 3 Display and Controls ___________________________________________________ 4 2. CALIBRATION 2.1 Calibrating for the first use ______________________________________________ 6 Recalibrating the scale _________________________________________________ 6 3. OPERATION Counting coins in cups from your till _____________________________________ 8...
  • Page 3 5.10 Currency _____________________________________________________________18 5.11 Factory Settings _______________________________________________________19 5.12 Eco Mode ____________________________________________________________19 5.13 Contrast ______________________________________________________________19 5.14 Coin Roll _____________________________________________________________20 6. TROUBLESHOOTING, SPECIFICATIONS Troubleshooting _______________________________________________________21 6.2 Specifications _________________________________________________________22 WARRANTY, SHIPPING, CONTACT INFORMATION Warranty _____________________________________________________________23 Shipping ______________________________________________________________23 Contact information __________________________________________________23 Cassida TillTally Money Counting Scale...
  • Page 4: Introduction

    Thank you for choosing the Cassida TillTally. We hope you enjoy using it. The Cassida TillTally is designed to speed the process of counting a register till or cash drawer. It easily counts both coinage and paper currency, allowing you to count and calculate the value of a register till in approximately one minute.
  • Page 5: Front And Rear Views

    2 Printer Port 3 Battery compartment 4 Coin cup for weighing coins 5 Keypad 6 Display 7 Cup support tray (hod) for coin cup and counting currency NOTE: TillTally has a smaller support tray (hod) Cassida TillTally Money Counting Scale...
  • Page 6: Display And Controls

    Display and Controls 1,2,3... 0000000.00 Quantity Unit / Reference Auto Add 0000 000000.00 Auto Count Float Amount / Sum 00000000.00 < CLEAR INFO Float On/Off SETUP ®...
  • Page 7 Selects the coin, coin roll and banknote denomination to weigh; selects the menu item switches the scale functions on/off; start of the SETUP menu in combination with b. Changes from information display to counting display; activates the special functions Free Weighing, Reference Weighing, and Float. Cassida TillTally Money Counting Scale...
  • Page 8: Calibration

    2.1 Calibrating for the first use Once the TillTally is plugged in and turned on, the text CALIBRATE SCALE appears on the display. Insert the cup support into the scale and begin the calibration procedure by pressing the OK button. The message ZERO appears on the display to indicate that nothing has to be on the scale.
  • Page 9: Operation

    Use the included power cord and/or 6 AAA batteries Remove all items from the cup support hod before use. Turn ON the TillTally by pressing the CLEAR button. The standard counting mode is activated. The counting procedure always starts with the lowest denomination of the selected currency.
  • Page 10: Counting Coins In Cups From Your Till

    000000 cups. See section 5.4. Place the filled cups directly on the cup support. NOTE: The TillTally can calibrate and store the weight for a single cup. The TillTally Elite has the ability to calibrate and store the weight for up to 8 different cups. NOTE: Do not overfill the cups. The TillTally can weigh up to 1kg before overweighing.
  • Page 11: Counting Coin Rolls

    ERROR COUNT AGAIN message will appear on the display. If this occurs, remove all coin rolls and restart the coin roll counting procedure. NOTE: The TillTally cannot determine or indicate if the coin rolls are incomplete <...
  • Page 12: Counting Paper Currency

    Initially you’ll start feeding the scale with 15 bills, but over time the TillTally Elite will allow you to feed as many as 25 bills onto the scale. The dynamic weight not only will speed your cash processing, but it also compensates for worn, soiled and taped bills that might be rejected by other types of bill counters and other scales without dynamic weighing.
  • Page 13: Displaying Results Of Your Count

    The result of the total value of the counted coinage and paper currency is displayed in the Amount/Sum area of the display. To see a display of the type, quantity and total of each amount placed on the TillTally scale, press < or > to scroll through the counting information.
  • Page 14: Using The Float Feature

    After cashing out the till, a fixed sum is often left in the till as a FLOAT for the next day. The TillTally Elite allows you to automatically set the amount of FLOAT needed in the till and count against that amount.
  • Page 15: Special Functions

    3. The total weight, the number of pieces and the reference mass of the selected item is displayed. 4. Quit the REFERENCE weight mode by pressing and holding INFO. NOTE: If two special functions are set up, activate the last saved function by pressing INFO Cassida TillTally Money Counting Scale...
  • Page 16: Changing The Setup Menu

    You can choose any FLOAT amount between $0 and $500, in $5 intervals. The default FLOAT amount for the TillTally Elite is $0. Save the desired amount by pressing OK. To continue with SETUP menus, press < or >. To exit the FLOAT setup menu, press CLEAR.
  • Page 17: Packages

    To deactivate the SEPARATE function, go to PACKAGES and select ON. To deactivate the PACKAGES function, go to PACKAGES and select OFF. To continue with SETUP menus, press < or >. To exit the PACKAGES setup menu, press CLEAR. Cassida TillTally Money Counting Scale...
  • Page 18: Order

    CLEAR. Set Cup Weight This function allows you to set the weight for the TillTally counting cup and/or the cups from your register. The TillTally Elite allows can store the weights of up to 8 cups. To change or configure SET CUP WEIGHT, press OK when SET CUP WT is shown in the SETUP menu. TillTally: The scale will prompt you to PLACE CUP. Place the cup on the cup support hod.
  • Page 19: Reference

    CLEAR. Calibrate Use this function if your TillTally Elite scale has been moved; your location has had a change in humidity; the scale has fallen or was knocked; or if you think your scale is not weighing properly. To CALIBRATE, press and hold OK when CALIBRATE is shown in the SETUP menu.
  • Page 20: Auto Add

    5.10 Currency Use to select the desired currency. The TillTally is pre-set to count United States currency and EUROS at this time. The chosen currency will be shown on the display. To change CURRENCY, press OK when CURRENCY is shown in the SETUP menu. Press < or > to choose USD or EUR. Press OK to confirm your choice.
  • Page 21: Factory Settings

    5.13 Contrast Increase or decrease the contrast of the TillTally screen to make it more visible in your environment. To change CONTRAST, press OK when CONTRAST is shown in the SETUP menu. Press < or > to choose a value between 1 (darkest) and 12 (brightest). The default setting for the TillTally is 10. Press OK to confirm your choice.
  • Page 22: Coin Roll

    5.14 Coin Roll The scale can count rolls of coins when this function is activated. The default setting for COIN ROLL is OFF. To change COIN ROLL settings, press OK when COIN ROLL is shown in the SETUP menu. Press < or > to choose OFF or ON. Press OK to confirm your choice.
  • Page 23: Troubleshooting, Specifications

    TROUBLESHOOTING, SPECIFICATIONS Troubleshooting The Cassida TillTally counts your cash accurately. Error messages, however, may occur for various reasons. Please use the following guide to troubleshoot errors: Error Code Cause Solution REMOVE A weight of more than 1 kg was Remove the complete weight from SOME BILLS placed on the scale.
  • Page 24: Specifications

    Power consumption: 100-240v~50/60Hz 0.66A max Power Supply: 9 V - 650 mA adapter; 6 AAA batteries (optional) Currencies: USD TillTally Elite Net weight: 1.3 lbs (.6 kg) Dimensions: 7.5” L x 5.1” w x 5.8” h (190x130x148mm) Power Consumption: 100-240v~50/60Hz 0.66A max Power supply: 9 V - 650 mA adapter;...
  • Page 25: Warranty, Shipping, Contact Information

    WARRANTY, SHIPPING, CONTACT INFORMATION Warranty Our goal is to make Cassida your lifetime work partner. That’s why Cassida products are subject to stringent quality control measures and are backed by a solid one year parts and labor warranty. Warranty information is available at www.CassidaUSA.com/support.html To activate your warranty in the US or Canada, please register you product online by visiting www.cassidausa.com/register.html...
  • Page 26 Cassida Corporation - North America Printed in China ©2015 Cassida Corporation. All rights reserved. Specifications subject to change without notice. Cassida is a registered trademark of Cassida Corporation. FN TILLTALLY-9-15...
