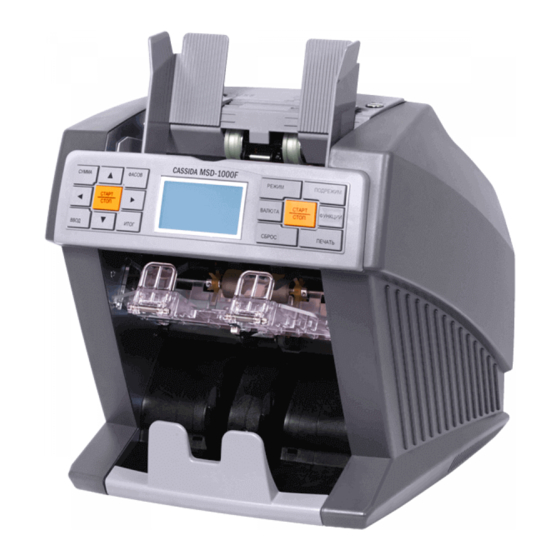

- Page 1 USER MANUAL Currency Sorting Machine of Cassida MSD-1000 Series...
- Page 3 Thank you for purchasing products of Cassida.This instruction manual contains the operating procedure and precautions for using this product. To ensure the efficient operation of our products, please read this instruction manual thoroughly before use. After reading this Instruction Manual, keep it handy for future reference.
-
Page 4: Table Of Contents
CONTENTS 1. INTRODUCTION 1.1 Introduction..........................1.2 Specification..........................2. PRECAUTION 2.1 Warning........................... 2.2 Installation Space........................2.3 Observe the following steps in order to prolong the life of the product....3. DAILY CARE 4. APPEARANCE 4.1 Front View..........................4.2 Display of the machine......................4.3 Modes of the machine...................... -
Page 5: Introduction
12.6"(W) * 13.9"(L) * 13.1"(H) Note Size 50*100 , 100*190(mm) Value Batch Mode Batch Mode Count Batch Mode Hopper Capacity 500 notes Output Pocket 80 notes Reject Capacity 250 notes Stacker Connectivity USB, RS-232 Currency Sorting Machine of Cassida MSD-1000 Series... -
Page 6: Precaution
This product is developed to provide a service of counting banknote only. Cassida is not liable to any damages caused by the use of this product for other purpose than above intended purpose without our permission, or any damages caused by the modification conducted by any other person than Cassida employee or authorized subcontractor. -
Page 7: Observe The Following Steps In Order To Prolong The Life Of The Product
In case of installing in places such as those mentioned below, consult our sales shop or our designated agent nearest to you. - Places subject to sea breezes or corrosive gas. - Places at the risk of swinging or vibrating. Currency Sorting Machine of Cassida MSD-1000 Series... -
Page 8: Daily Care
џ Do not unplug the power cord while the unit is operating. џ Do not remove the covers that ware screwed down. DAILY CARE All parts of MSD 1000 need daily care and clean. Especially sensors of this are very sensitive and delicate components. - Page 9 Clean the sensors, as shown at the picture. Using the vacuum, remove all the dust from outcome under side panels. Close back panel: џ Push down on the cover, until you hear a certain click. Currency Sorting Machine of Cassida MSD-1000 Series...
-
Page 10: Appearance
APPEARANCE 4.1 Front View Front View Hopper Display Reject pocket Stacker Back View Top Cover Back cover External port Power Inlet USB port... -
Page 11: Display Of The Machine
- In counting mode, it starts or stops the function of error clear and counting. - In setup mode, it can be finished user setup. ADD – key - In ADD mode, a previous counting data is added to the next counting. Currency Sorting Machine of Cassida MSD-1000 Series... - Page 12 Clear Clear – key - Used to change to clear menu. Print Print – key - Used to change to printing mode. - When it is connected printer, it starts to print out. Func FUNC – key - In counting mode, used to change to setup mode Up , down –...
-
Page 13: Modes Of The Machine
ValueCount - F Count the selected Face Orientation orientation Denom–Face ORNT Denom - F New-Face ORNT New-F Serial Number Basic AUTO Print the serial number of notes Count AUTO Count all currencies without detection Currency Sorting Machine of Cassida MSD-1000 Series... - Page 14 4.3.1 MIX Mode MIX> AUTO B100 Count all denomination of selected currency. 0 PCS MIX> AUTO B100 Count all denomination of selected currency. Cumulate the count sum. 0 PCS MIX> AUTO BVAL Count all denomination of selected currency. Can count all denomination of 0 PCS selected currency with setting value.
- Page 15 Banknotes are sorted according to old & new. 0 PCS Count denomination DEM> AUTO B100 selected. Banknotes are sorted according to kind of first banknote through sensor. 0 PCS Cumulate the count sum. Currency Sorting Machine of Cassida MSD-1000 Series...
- Page 16 4.3.3 ORT Mode It sorts face up or down from the m i x e d ORT> UP-DN B100 banknotes. It dosen't sort denomination. € It's setted by the direction of the first 0 PCS banknote It's sorted by right or left direction that is ORT>...
- Page 17 € 0 PCS SN> AUTO B100 Print the serial number of notes. Cumulate count sum. € 0 PCS 4.3.5 Count Mode CNT> B100 Counting Mode is for counting € all currencies. 0 PCS Currency Sorting Machine of Cassida MSD-1000 Series...
-
Page 18: Operation
OPERATION 5.1 Power ON/OFF џ Power switch Please connect power cable to above port. When power is ON, Display like (Display 1) will be in screen. After some time, when (Display 2) will be on the screen, use machine MIX> AUTO B100 MODEL : MSD-1000... -
Page 19: Checkpoints Before Counting
For print function, connect external port of / to serial printer. 5.4 Print Menu Connect external port of / to Serial Print. Press the print key PRINT on right side of key panel and select function. Currency Sorting Machine of Cassida MSD-1000 Series... - Page 20 1. GRAND TOTAL PRINT: Print out total amount of counted banknotes. ------------------------------------------------------- PRINT MENU * MS- 2D BANKNOTE REPORT V1.00 1. GRAND TOTAL PRINT ------------------------------------------------------- 2. SERIAL PRINT Time : 05/23/2008 , 14/00/34 3. RJ DETAIL PRINT OP Currency : EUR 4.
- Page 21 SENSOR JAM C SENSOR JAM D ERROR CF-A ERROR CF-B ERROR CF-C ERROR CF-D ERROR CF-E DOUBLE ERROR OTHER NOTE RECOGNITION ERR OTHER ORIENT BATCH FULL REJECT FULL NOTE ERROR ************************************************ TOTAL : ************************************************ Currency Sorting Machine of Cassida MSD-1000 Series...
-
Page 22: Clear Menu
3. RJ DETAIL PRINT: Print out errors of rejected banknotes. ------------------------------------------------------- PRINT MENU * MS- 2D MACHINE VALUE PRINT 1. GRAND TOTAL PRINT ------------------------------------------------------- 2. SERIAL PRINT 1. UV TOP SENSOR SET 3. RJ DETAIL PRINT UVT ON/OFF : OFF 4. - Page 23 4. VALUE ADJUST: This can be changed to a value result. VALUE MENU 1. GRAND TOTAL CLEAR 2. TOTAL CLEAR 3. ADD TOTAL CLEAR 4. VALUE ADJUST 100X 0 : CHANGE C/E : OK : DENOM : - / + Currency Sorting Machine of Cassida MSD-1000 Series...
-
Page 24: User Setur
After selecting the denomination by the up, down key Please use to change the number by the left, right key If pressing the enter CE/ENTER key, value is changed USER SETUR 6.1 How to change the user setup Press FUNC Key once. User setup screen is displayed. MIX>... - Page 25 6.1.3 LCD CONTRAST - Set LCD contrast LCD CONT LEVEL L--------------M------H CHANGE START: OK 6.1.4 BAUD RATE - Set baud rate for communication BAUD RATE 9.6K > 38.4K > 115K CHANGE START: OK Currency Sorting Machine of Cassida MSD-1000 Series...
- Page 26 6.1.5 MANUAL OPERATION - Check the condition of Main, Spool, Solenoid and Clutch motors. MANUAL OPERATION MOTOR( SPOOL( CLUCH( SOL ( START: OK 6.1.6 SENSOR CHECK - Check real time condition of each part of sensor. SENSOR HOPPER SEN : COUNTA SEN : COUNTB SEN : COUNTC SEN :...
- Page 27 START: OK 6.1.13 REJECT DETAIL PRT -Turn on or off the function to print the detail when notes are rejected. -When turned ON, print automatically. RJ DETAIL PRINT ON / OFF CHANGE START: OK Currency Sorting Machine of Cassida MSD-1000 Series...
- Page 28 6.1.14 MACHINE VALUE PRINT - Print out the information of machine value MACHINE VALUE PRT ON / OFF CHANGE START: OK 6.1.15 TIME SETTING – Set up present time TIME SETTING YEAR MONTH : 10 DATE : 14 HOUR : 15 MINUTES : 51 : CHANGE START: OK 6.1.16 MSD TOTAL COUNT - Show machine's age and total counting volume except...
-
Page 29: Error Codes
*When an error occurs, please remove all the notes from stacker, press the START key, and recount the bundle. *When a note is stuck in a sensor, remove the note, and recount the bundle. Currency Sorting Machine of Cassida MSD-1000 Series... -
Page 30: Operation
7.1. Operation Error Code Description Action Check the rollers around main motor Delivery delay in A FEEDING or feeder. Replace the sensors if section ERROR A sensor A or B is defective FEEDING Delivery delay in B Check Discrimination Part Roller ERROR B section Replace the sensors if sensor B or C... -
Page 31: Defective Note
Replace the sensor if UV sensor is defective CF-C ERROR Counterfeit note If banknote is genuine, clean roller detected by MG Ass'y Center sensor Check MG center sensor setting Replace the sensor if UV center sensor is defective Currency Sorting Machine of Cassida MSD-1000 Series... -
Page 32: Warranty
In most cases, the malfunction of the machine can be resolved by cleaning the unit. Shipping: The warranty does not cover shipping cost to or from Cassida's Technical Service Center. Non-warranty service: Cassida can perform maintenance and cleaning for an extra fee. - Page 33 Office # 101, Biyat Complex (Landmarks: Emirates Billiard Centre) Hor Al Anz East, Behind Al Mamzar Centre Dubai - United Arab Emirates PO box 454867 Currency Sorting Machine of Cassida MSD-1000 Series...
- Page 35 Currency Sorting Machine of Cassida MSD-1000 Series...
