Hubbell GFCI Manual

®
• To prevent severe shock or
electrocution, always turn the power
OFF at the service panel before
working with wiring.
Wiring Systems
• Use this GFCI receptacle with copper
or copper-clad wire. Do not use it
with aluminum wire.
Installing and
• Do not install this GFCI receptacle on
a circuit that powers life support
equipment because if the GFCI trips
Testing a GFCI
it will shut down the equipment.
• For installation in wet locations,
Receptacle
protect the GFCI receptacle with a
weatherproof cover that will keep
both the receptacle and any plugs
dry.
Please read this leaflet
• Must be installed in accordance with
completely before get-
national and local electrical codes.
ting started
PD2490
(Page 1) (English) 09/11
3. Should you install it?
4. LINE vs. LOAD
nstalling a GFCI receptacle can be more
I
A cable consists of 2 or 3 wires.
complicated than installing a conventional
receptacle.
Cable
Make sure that you:
• Understand basic wiring principles and
techniques
LINE cable:
• Can interpret wiring diagrams
Delivers power from the service panel
• Have circuit wiring experience
(breaker panel or fuse box) to the GFCI. If
there is only one cable entering the electrical
• Are prepared to take a few minutes to test
box, it is the LINE cable. This cable should be
your work, making sure that you have wired
connected to the GFCI's LINE terminals only.
the GFCI receptacle correctly
LOAD cable:
Delivers power from the GFCI to another
receptacle in the circuit. This cable should be
connected to the GFCI's LOAD terminals
only. The LOAD terminals are under the
yellow sticker. Do not remove the sticker at
this time.
1. What is a GFCI?
CAUTION
!
A GFCI receptacle is different from conven-
tional receptacles. In the event of a ground
fault, a GFCI will trip and quickly stop the
flow of electricity to prevent serious injury.
Definition of a ground fault:
Instead of following its normal safe path,
electricity passes through a person's body to
reach the ground. For example, a defective
appliance can cause a ground fault.
A GFCI receptacle does not protect against
circuit overloads, short circuits, or shocks.
For example, you can still be shocked if you
touch bare wires while standing on a non-
conducting surface, such as a wood floor.
5. Turn the power OFF
Plug an electrical device, such as a lamp or
radio, into the receptacle on which you are
working. Turn the lamp or radio on. Then,
Wires
go to the service panel. Find the breaker or
fuse that protects that receptacle. Place the
breaker in the OFF position or completely
remove the fuse. The lamp or radio should
turn OFF.
Next, plug in and turn ON the lamp or radio
at the receptacle's other outlet to make sure
the power is OFF at both outlets. If the
power is not OFF, stop work and call an
electrician to complete the installation.

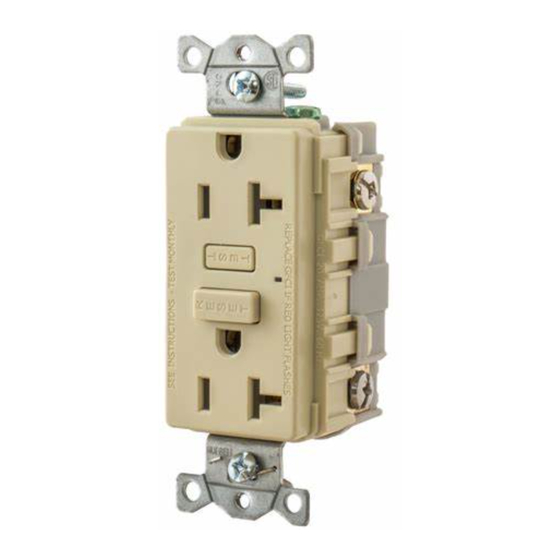

2. The GFCI's features
FRONT VIEW
Grounding terminal
(Green): Connection
for bare copper or
Receptacle
green wire.
LINE
Outlet
White terminal (Silver):
Connection for the LINE
cable's white wire.
TEST button:
See step 8
Light Emitting Diode
RESET button:
(LED)
See step 8
LOAD
Outlet
White terminal (Silver):
Connection for the LOAD
cable's white wire.
Mounting
bracket
6. Identify cables/wires
Important:
Procedure: box with two cables (4-6 wires)
Do not install the GFCI receptacle in an
(a) Detach one cable's white and hot wires
electrical box containing (a) more than 4
from the receptacle and cap each one
wires (not including the grounding wires) or
separately with a wire connector. Make
(b) cables with more than two wires (not
sure that they are from the same cable.
including the grounding wire). Contact a
(b) Re-install the receptacle in the electrical
qualified electrician if either (a) or (b) is
box, attach the faceplate, then turn the
true.
power ON at the service panel.
If you are replacing an old receptacle, pull it
out of the electrical box without disconnect- (c) Determine if power is flowing to the
receptacle. If so, the capped wires are
ing the wires.
the LOAD wires. If not the capped wires
• If you see one cable (2-3 wires), it is the
are the LINE wires.
LINE cable. The receptacle is probably in
(d) Turn the power OFF at the service panel,
position C (see diagram to the right).
Remove the receptacle and go to step 7A. label the LINE and LOAD wires, then
remove the receptacle.
• If you see two cables (4-6 wires), the
(e) Go to step 7B.
receptacle is probably in position A or B
(see diagram to the right). Follow steps
a-e of the procedure to the right.
Screw (terminal) colors:
BACK VIEW
Green = grounding terminal
Silver = white terminals
Brass = hot terminals
LINE
Hot terminal (Brass):
Connection for the LINE
cable's black wire.
LOAD
Hot terminal (Brass):
Connection for the LOAD
cable's black wire.
A yellow sticker covers the
LOAD terminals. Do not
remove the sticker at this
time.
Placement in circuit:
The GFCI's place in the circuit determines if
it protects other receptacles in the circuit.
Sample circuit
A B C
LINE LINE LINE
Service
Panel
LOAD LOAD
Placing the GFCI in position A will also
provide protection to "load side"
receptacles B and C. On the other hand,
placing the GFCI in position C will not
provide protection to receptacles A or B.
Remember that receptacles A, B, and C
can be in different rooms.
